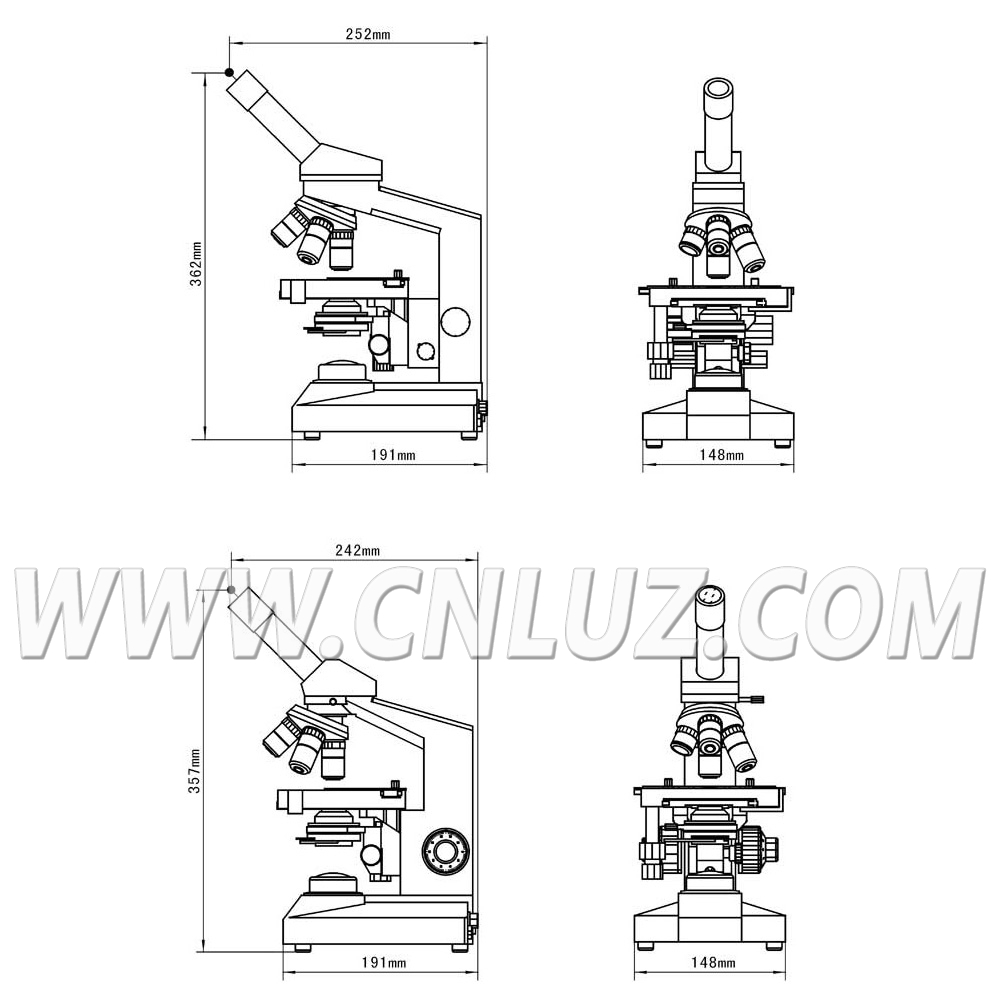

MBS.001003Monocular Elementary Biological Microscope

MBS.001003 biological microscopes are equipped with monocular, achromatic objectives and wide field eyepieces. They provide clear image, wide field, convenience operation. They can be widely used for medicine, agriculture area. They are the ideal instruments in medical treatment ,teaching demonstration.

With wide field eyepieces and achromatic objectives, the field of view is widely and clear
Separate coarse/fine system focus or coaxial coarse/fine focus system can be chosen, minimum division of fine focusing: 4μm
220V/110V 20W incandescent lamp transmission illumination.

Specification	MBS.001003-A	MBS.001003-B
Eyepiece	WF10X(Φ18mm)
Head	Monocular, 360° rotatable, inclination of 45°
Objective	Achromatic 4X/0.10
	Achromatic 10X/0.25
	Achromatic 40X/0.65(Spring)
	Achromatic 100X/1.25(Spring, oil)
Focus System	Separate coarse/fine system focus, Minimum division of fine focusing: 4μm	Coaxial coarse/fine system focus, Minimum division of fine focusing: 4μm
Nosepiece	Quadruple(Frontward ball bearing outer locating)
Stage	Double layer mechanical, size 125x115mm, moving range 70x30mm
Condenser	N.A.1.25 Rack & pinion adjustment
Filter	Blue filter
	Frosted filter
Collector	For incadescent lamp
Light source	220V/110V 20W, incandescent lamp

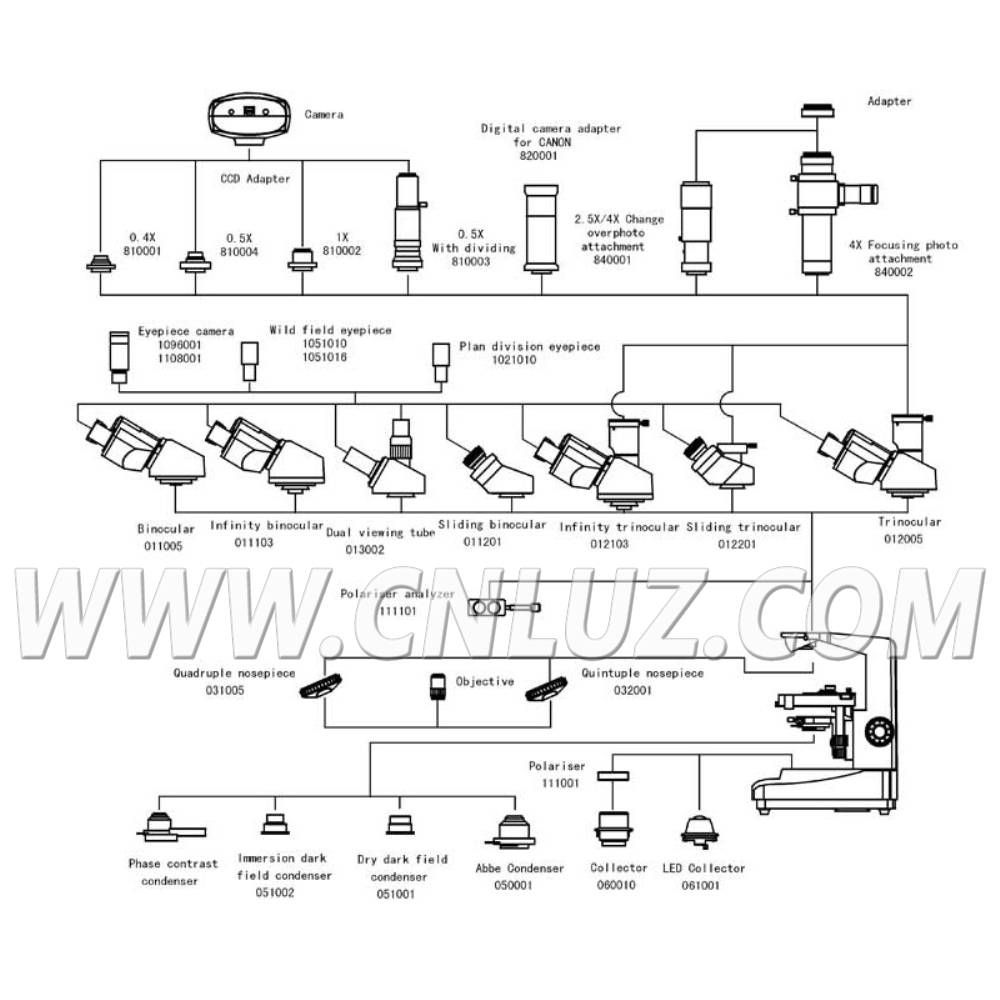

Item	Optional Accessories
Eyepiece	Wide field WF16x/11mm
Eyepiece	Point 10x/18mm
Nosepiece	Triple nosepiece (Frontward ball bearing outer locating)
Light Source	Fluorescent lamp, 5W,110V/220V
	LED Illumination,High brightness white
	Reflecting mirror,Plane-concave reflecting mirror with stand
	Transformer for LED Input: 110V~50/60HZ, Output: 9V,500mA
	Transformer for LED Input: 230V~50/60HZ, Output: 9V,500mA
Filter	Green filter
Filter	Yellow filter
