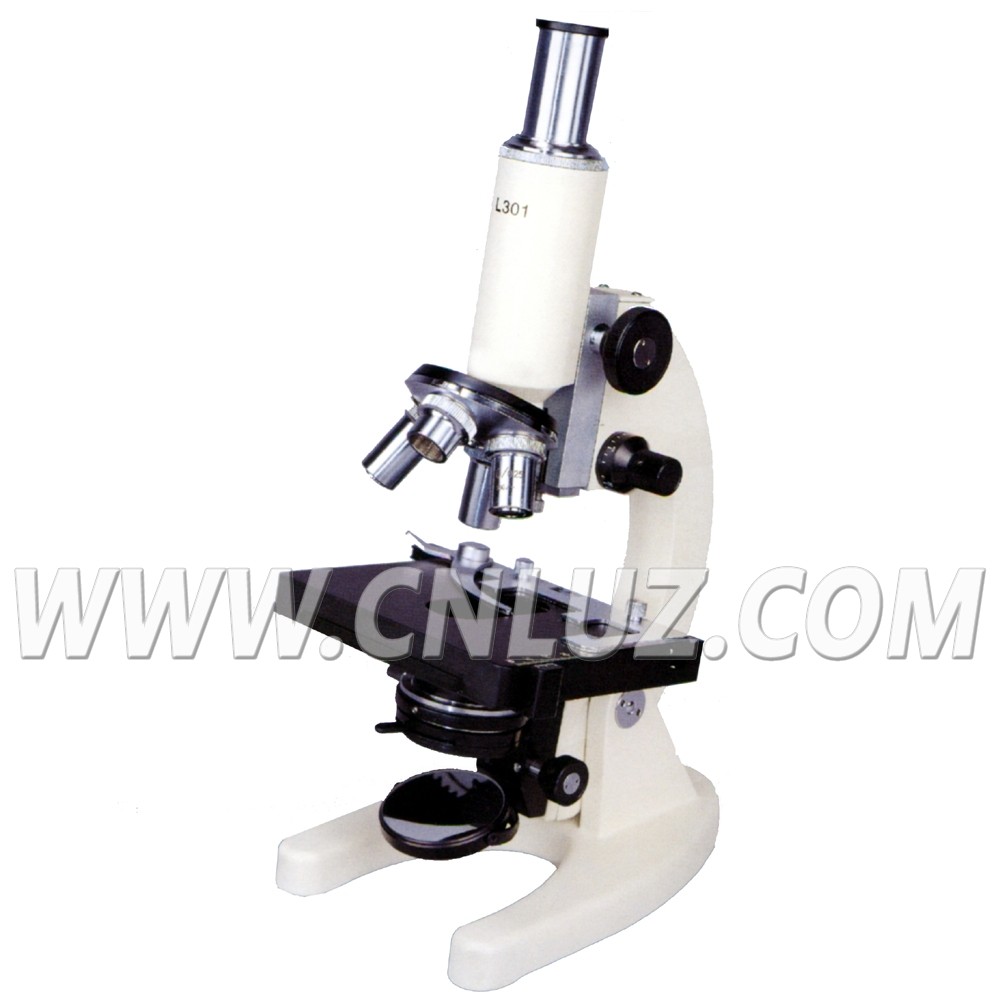

MBS.001004Monocular Elementary Biological Microscope
  • /usr/575/images/Products/Y/57517804.jpg
  • /usr/575/Picture/Y/10871.jpg
  •
  •

MBS.001004 biological microscope is equipped with Huygens eyepieces and achromatic objectives, using monocular observe. It has clear image and wide visual field. It can be broadly applied in biology medicine, agriculture etc. It is the ideal instrument for treatment, teaching and scientific research.

  • With Huygens eyepieces and achromatic objectives, the visual field of view is clear
  • Separate coarse/fine system focus, Minimum division of fine focusing: 3μm.



Specification
MBS.001004
Eyepiece
Huygens 10X(Φ18mm)
Huygens 15X(Φ11mm)
Head
Monocular observe, Straight and single eyepiece
Objective
Achromatic 4X/0.10
Achromatic 10X/0.25
Achromatic 40X/0.65(Spring)
Achromatic 100X/1.25(Spring, oil)
Focus System
Separate coarse/fine system focus, Minimum division of fine focusing: 3um.
Stage
Double layer mechanical (Size:125mmX115mm, Move range: 70mmX30mm)
Nosepiece
Quadruple(Frontward ball bearing outer locating)
Abbe Condenser
N.A.1.25 Rack & pinion adjustable
Filter
Blue filter
Frosted filter
Light source
Plane-concave reflecting mirror

Item
Optional Accessories
Eyepiece
Huygens 5x/18mm
Huygens 6x/16mm
Filter
Green filter
Yellow filter
