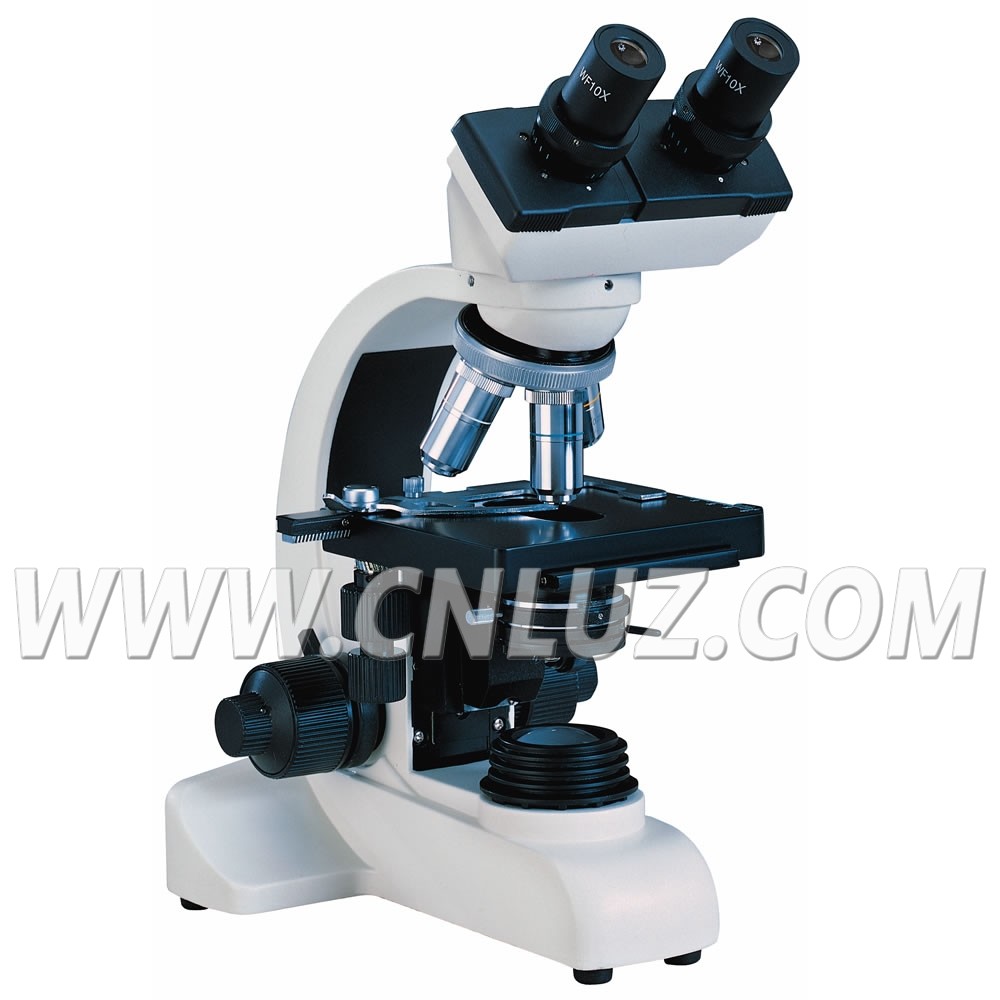

MBS.001005Binocular Compound Biological Microscope
  • /usr/575/images/Products/Y/57517814.jpg
  • /usr/575/Picture/Y/10885.jpg
  • /usr/575/Picture/Y/10886.jpg
  •

MBS.001005 biological microscope is equipped with achromatic objectives and wide field eyepieces. It has clear image and wide view field optical system. It can be broadly applied in biology medicine, agriculture and etc. It is the ideal instrument for medical treatment, teaching.

  • With wide field eyepieces and achromatic objectives, the field of view is widely and clear
  • Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 4μm
  • 6Volt 20Watt  Halogen lamp with brightness control
Specification
MBS.001005-2A
MBS.001005-2B
Eyepiece
WF 10X(Φ18mm)
Head
Sliding binocular head inclination 30°
Objective
Achromatic 4X/0.10
Achromatic 10X/0.25
Achromatic 40X/0.65(Spring)
Achromatic 100X/1.25(Spring, oil)
Focus System
Coaxial coarse/fine system focus, Minimum division of fine focusing: 4um
Coaxial coarse/fine system focus, Minimum division of fine focusing: 4um
With tensional adjustable and up stop
Nosepiece
Quadruple backward ball bearing inner locating
Stage
Double layer mechanical, size 125x115mm, moving range 70x30mm
Condenser
Abbe N.A.1.25 Rack & pinion adjustment, with aperture diaphragm, filter seat
Filter
Blue filter
Frosted filter
Collector
For halogen lamp
Light source
6V 20W halogen lamp with brightness control

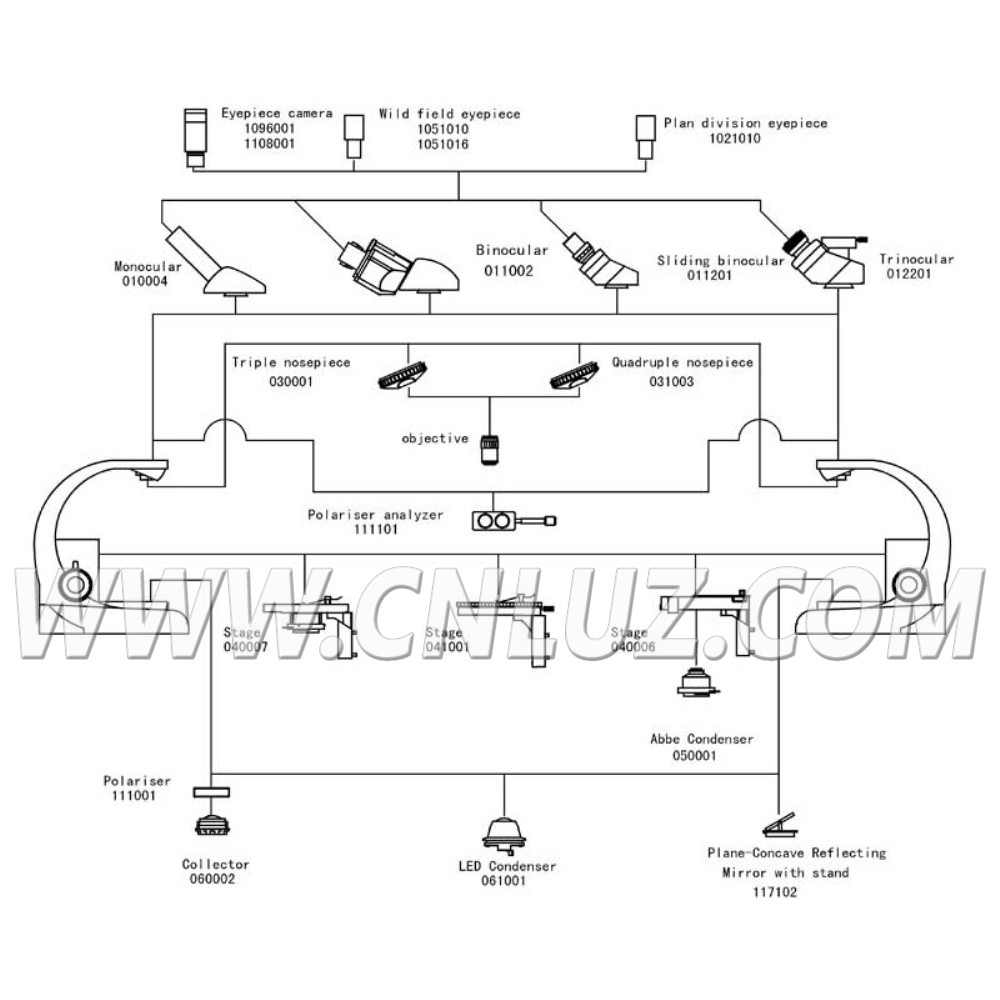

Item
Optional Accessories
Item No.
Eyepiece Wide field WF16x/11mm
1051510
Divding 10x/18mm
1021010
Head


 Monocular, inclination of 45°
010004
Trinocular, inclination of 45°
012201
Dual viewing tube , inclination of 30°
011002
Nosepiece
 Triple nosepiece (Backward Ball bearing inner locating)
030001
Stage Rotatable round stage Dia.120mm
041001
Fixed, size 120x120mm, with single lens and iris diaphragm
040007
Filter Green filter
115002
Yellow filter
115003
Light Source
Fluorescent lamp 5W, 110V/220V Can be chosen
071004
Incandensent lamp
072003
LED Illumination, high brightness white
073004
Reflecting mirror, plane-concave reflecting mirror with stand
074005
Adapter For LED illumination Input: 230V~50/60HZ Output: 9V 500mA
101001
For LED illumination Input: 230V~50/60HZ Output: 9V 500mA
101002
Polarzing Set
Polarizer 360° rotatable stage
111001
Analyzer
111101
