Monocular Elementary Biological Microscope, 40X~1000X_IHPVISION:Microscope,Digital Vision

MBS.001013Monocular Elementary Biological Microscope, 40X~1000X

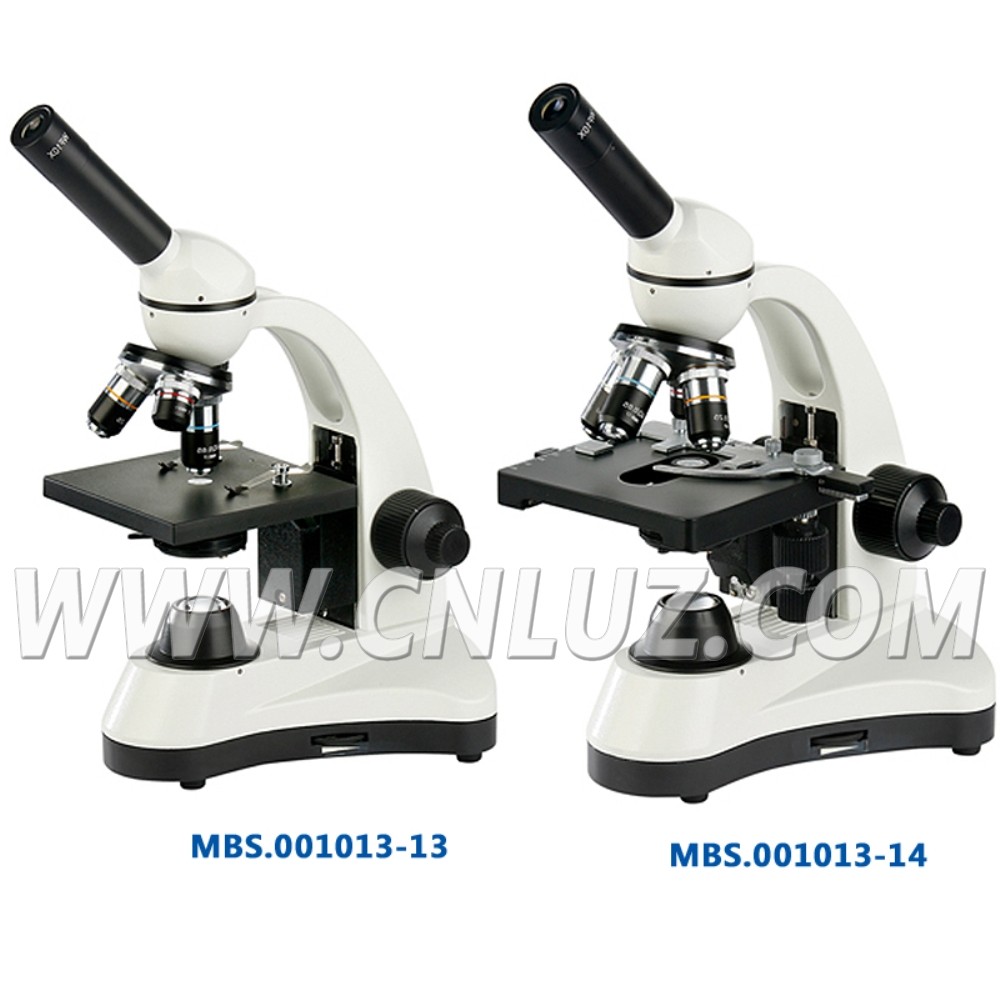

Specification	MBS.001013-13	MBS.001013-14
Eyepiece	WF10X(Φ18mm)
Head	Monocular head 360° rotatable, inclination 30°
Objective	Achromatic 4X/0.10	Semi-plan 4X/0.10
	Achromatic 10X/0.25	Semi-plan 10X/0.25
	Achromatic 40X/0.65(Spring)	Semi-plan 40X/0.65(Spring)
		Semi-plan 100X/1.25(Spring, oil)
Focusl System	Coaxial coarse/fine focus system, Minimum division of fine focusing: 4um
Nosepiece	Triple frontward ball bearing outer locating	Quadruple (Frontward ball bearing outer locating)
Stage	Fixed, 120x120mm, with 5 holes Disc diaphgram	Double layer mechanical, size 135x125mm, moving range 75x35mm
Condenser	Abbe N.A.1.25 Rack & pinion adjustment
Filter	Blue filter
	Green filter
	Yellow filter
	Frosted filter
Collector	For LED lamp
Light source	High brightness white LED lamp

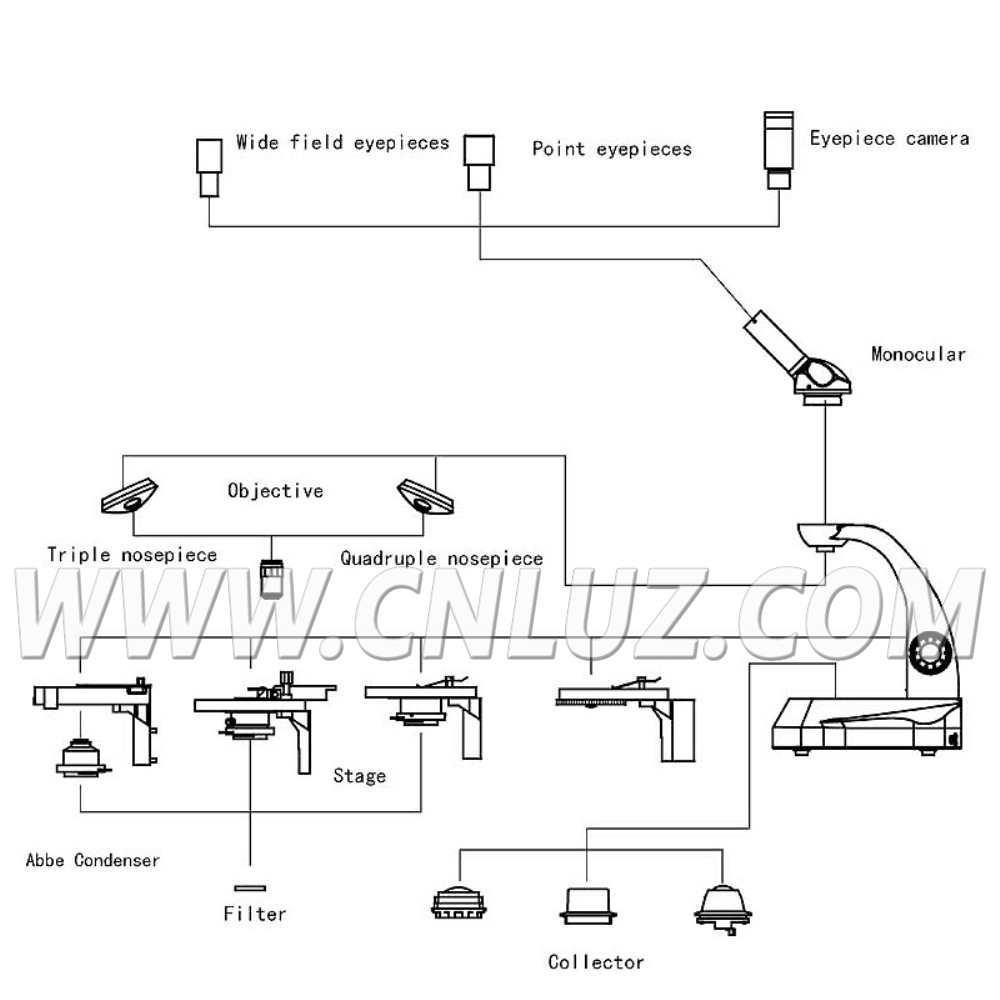

Item	Optional Accessories		Item No.
Eyepiece	Wide field WF16x/11mm		1051016
	Point 10X/18mm		1043010
Stage	Fixed,Size:120mmX120mm, With single lens and iris diaphragm		040001
	Fixed,Size:120mmX120mm, with slide moving holder and Abbe condenser		040004
Filter	Blue filter		115001
	Green filter		115002
	Yellow filter		115003
	Frosted filter		115004
Collector	For Fluorescent and Halogen lamp		060002
	For Incandescent lamp		060004
Light Source	High brightness white LED lamp,With adapter		073011
	High brightness white LED lamp,With adapter and charge batteries		073012
	Halogen lamp 12V 20W		070019
	Fluorescent lamp,110V/220V.5W can be chosen		071006
	Incandescent lamp, 220V/110V. 20W can be chosen		072004
Camera	Photography,USB Output		1096001
	Photography,VIDEO Output		1108001
Adapter	For LED Lighsource	Input:230V 50/60HZ Output:9V 500mA	101001
		Input:110V 50/60HZ Output:9V 500mA	101002
