MBE.017019Variety Observation Head, Elementary, 40X~1000X
  • /usr/575/images/Products/Y/57519079.jpg
  • /usr/575/Picture/Y/11560.jpg
  • /usr/575/Picture/Y/11561.jpg
  • /usr/575/Picture/Y/11562.jpg
  • A variety of observation head
  • Total Magnification 40X~1000X
  • Halogen Lamp 6V/20W
Specification

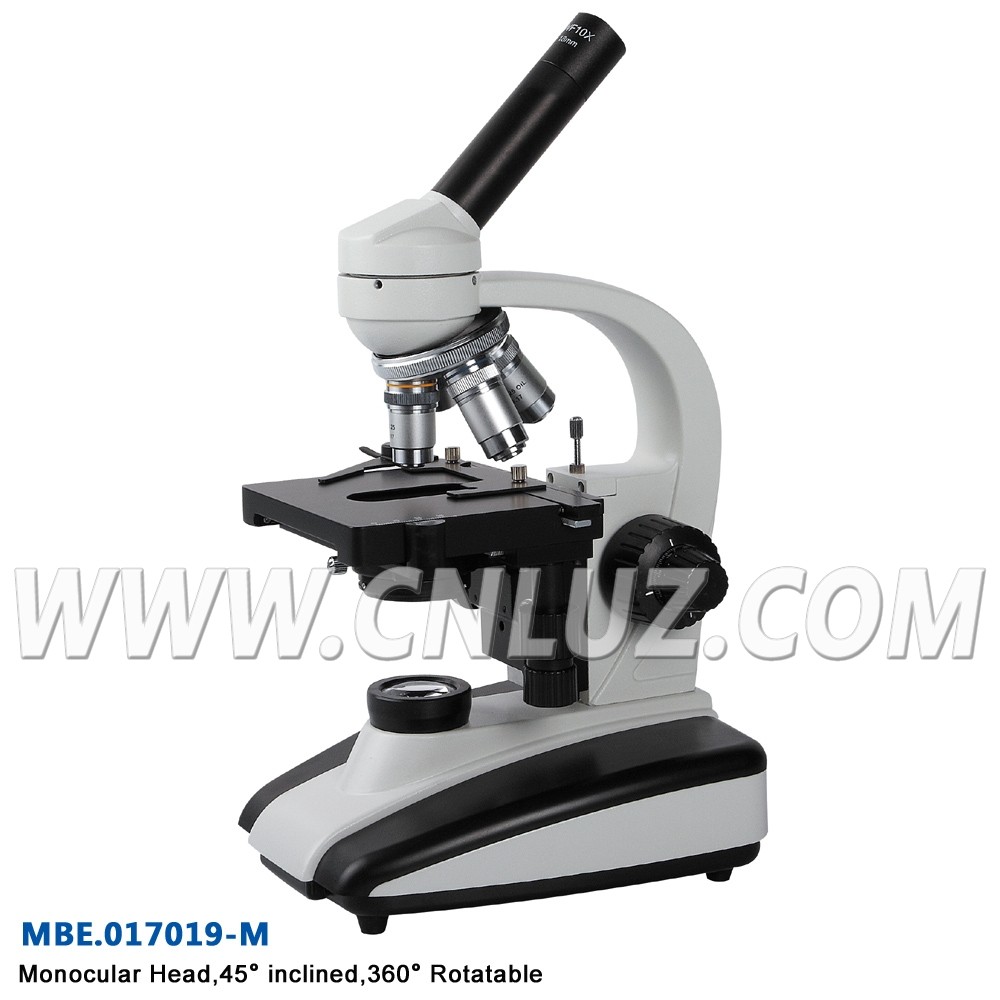

MBE.017019-M

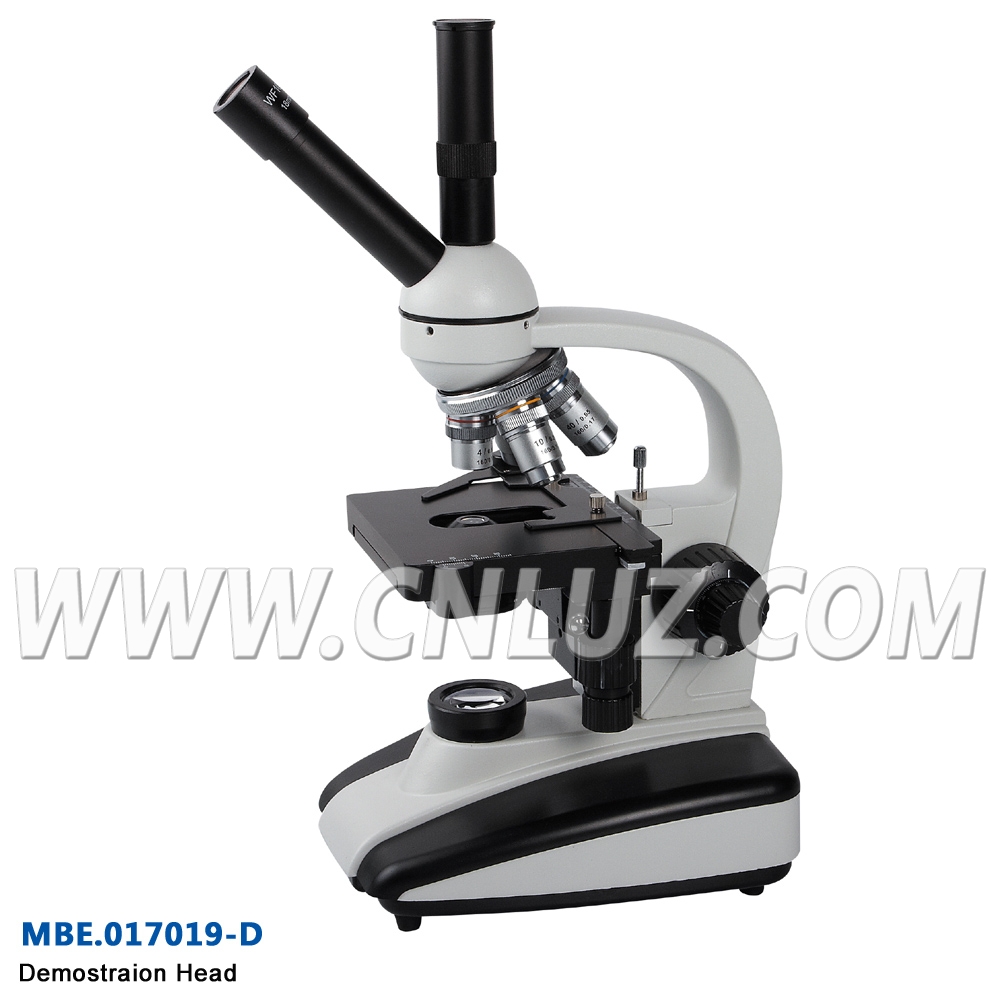

MBE.017019-D

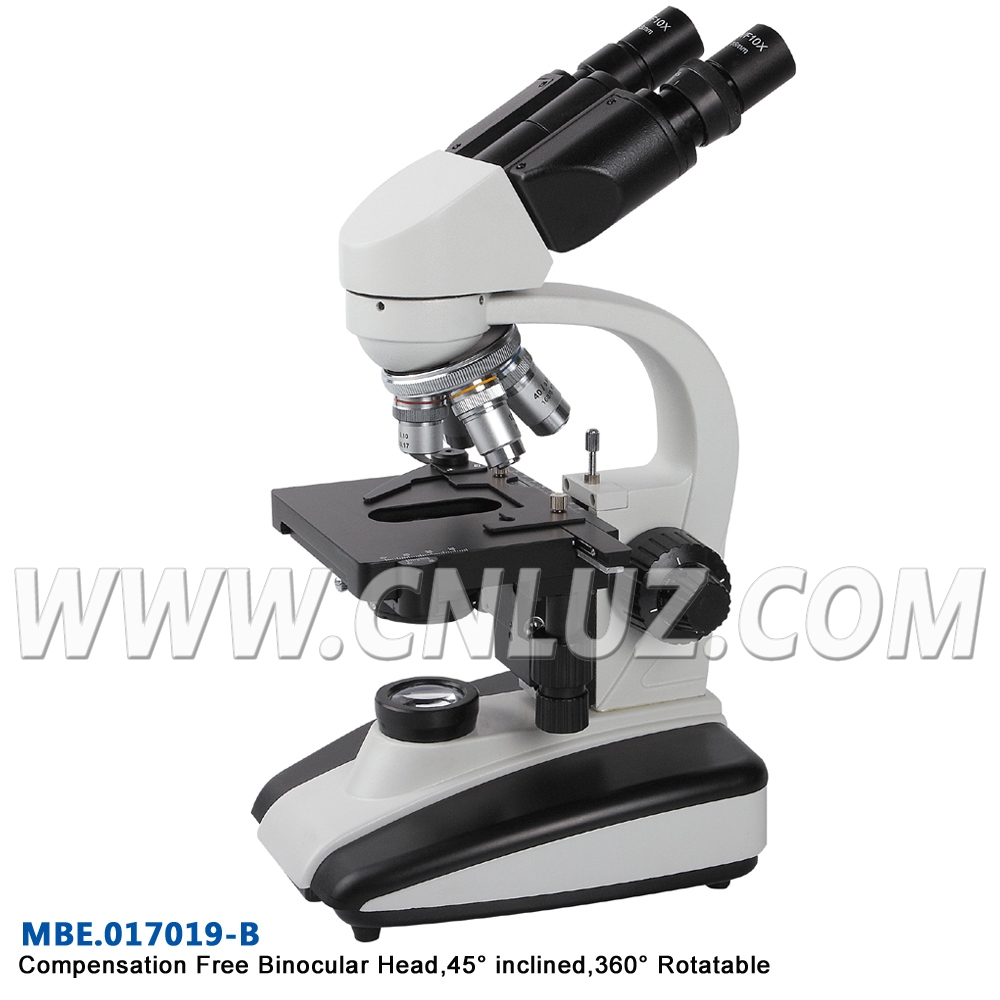

MBE.017019-B

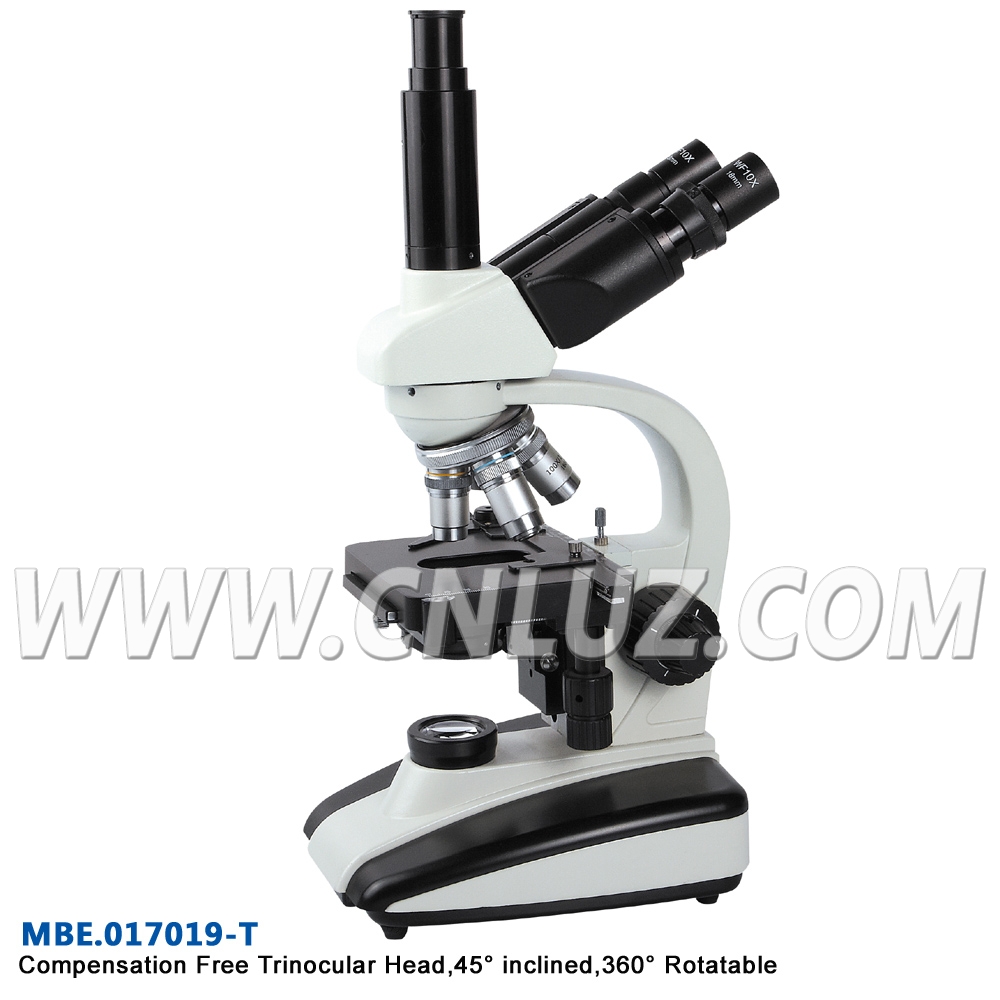

MBE.017019-T
Head
Monocular,45° inclined,360° Rotatable
Demostraion Head Compensation Free Binocular,45° inclined,360° Rotatable Compensation Free Trinocular,45° inclined,360° Rotatable
Eyepiece
WF10x
Objective
Achromatic Objective 4x
Achromatic Objective 10x
Achromatic Objective 40x
Achromatic Objective 100x
Nosepiece
Backward quadruple nosepiece
Focusing
Coaxial Coarse and Fine Focus Adjustment,Range:20mm
Stage
Double Layer Mechanical Stage 115mmx125mm
Condenser
ABBE NA1.25 Condenser with Diaphragm and Filter
Illumination
Halogen lamp 6V/ 20W
