MBE.040002LED Elementary Microscope for Student, 400x-1000x
  • /usr/575/images/Products/Y/57520046.jpg
  •
  •
  •

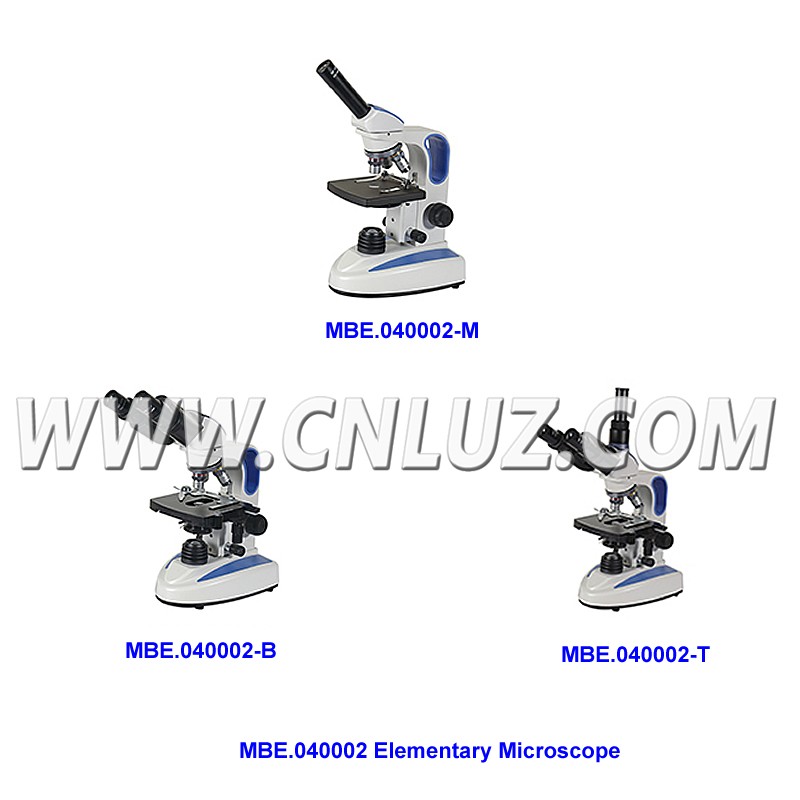

MBE.040002 LED Elementary Microscope for Student

A good tool for elementary students to explore the micro world!

  • Magnification is 40-400x, can upgrade to 1000x.
  • Triple Nosepiece, can upgrade to quadruple
  • LED light
  • Smarter design for students easy to carry.
Specification
MBE.040002-M
MBE.040002-B
MBE.040002-T
Head Monocular head,inclined at 45 °, 360° rotatable Compensation Free Binocular, 30°inclined, 55mm-75mm Compensation Free Trinocular , 30°inclined, 55mm-75mm
Eyepiece
WF10X /18mm
Objective
Achromatic objective: 4×、10×、40×(s)
Nosepiece
Triple Backward Nosepiece
Focusing
Separated coarse & fine focusing adjustment
Stage
Plain stage with slide clips: 120mmX125mm Plain stage with slide clips Stage Size:120mmX125mm
Condenser
0.65 Condenser with iris diaphragm N.A.1.25 Abbe condenser with iris diaphragm and filter holder
Illumination
LED,brightness adjustable

Item
MBE.040002 Optional Accessories
Head
Dual viewing head
Eyepiece Wide Field Eyepiece WF16x
Wide Field Eyepiece WF20x
Objective

Achromatic objective 20x
Achromatic objective 60x
Achromatic objective 100x(S,O)
Nosepiece Quadruple Backward Nosepiece
Illumination Reflector
