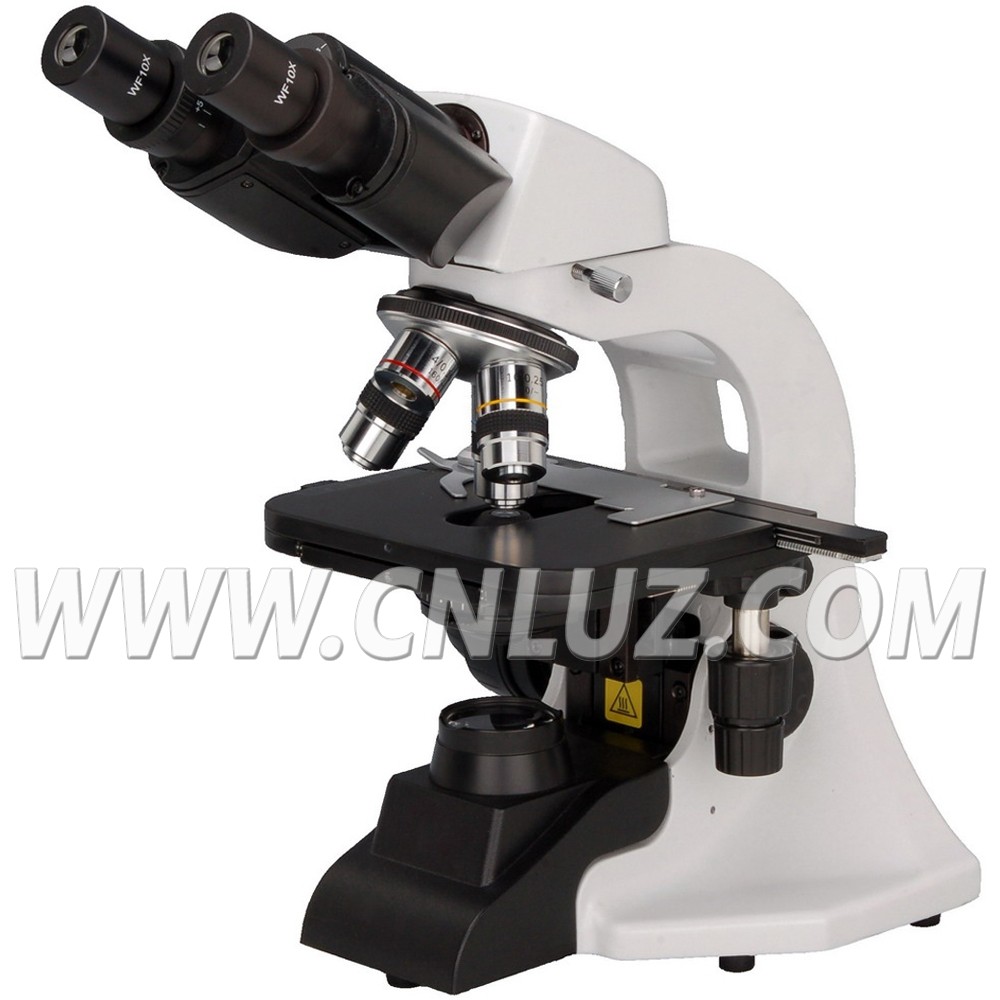

MBL.003030Binocular/Trinocular Compound Microscope, 40X~1000X

Economic features, widely used in academic demonstration and health system

Specification	MBL.003030-B	MBL.003030-T
Head	Seidentopf Binocular Head, 30° Inclinded, 360° Rotatable, Interpupillary 48~75mm	Seidentopf Trinocular Head, 30° Inclinded, 360° Rotatable, Interpupillary 48~75mm
Eyepiece	WF10x/18mm
Objective	Achromatic Objective 4x
	Achromatic Objective 10x
	Achromatic Objective 40x
	Achromatic Objective 100x
Nosepiece	Quadruple Nosepiece
Stage	Double Layer Mechanical Stage, Size 132142mm, Moving Range 7540mm, Low Position X/Y Coaxial Control Knob
Condenser	Abbe Condenser, N.A.1.25, With Iris Diaphragm
Focusing	Coaxial Coarse & Fine Focusing, Fine Devision 0.002mm, Coarse Stroke 37.7 Per Rotation, Fine Stroke 0.2mm Per Rotation, Moving Range 20mm
Illumination	S- LED

Item	Optional Accessories
Eyepiece	WF16x/11
Objective	Plan achromatic objective 4x
	Plan achromatic objective 10x
	Plan achromatic objective 40x
	Plan achromatic objective 100x
	Infinity Plan Achromatic Objective 4x
	Infinity Plan Achromatic Objective 10x
	Infinity Plan Achromatic Objective 40x
	Infinity Plan Achromatic Objective 100x
Adapter	Photo Adapter
Adapter	C-Mount 1.0x
Dark Field	Dark Field Condenser, N.A. 0.7~0.9, Dry
Dark Field	Dark Field Condenser, N.A. 1.25~1.35, Immersion
