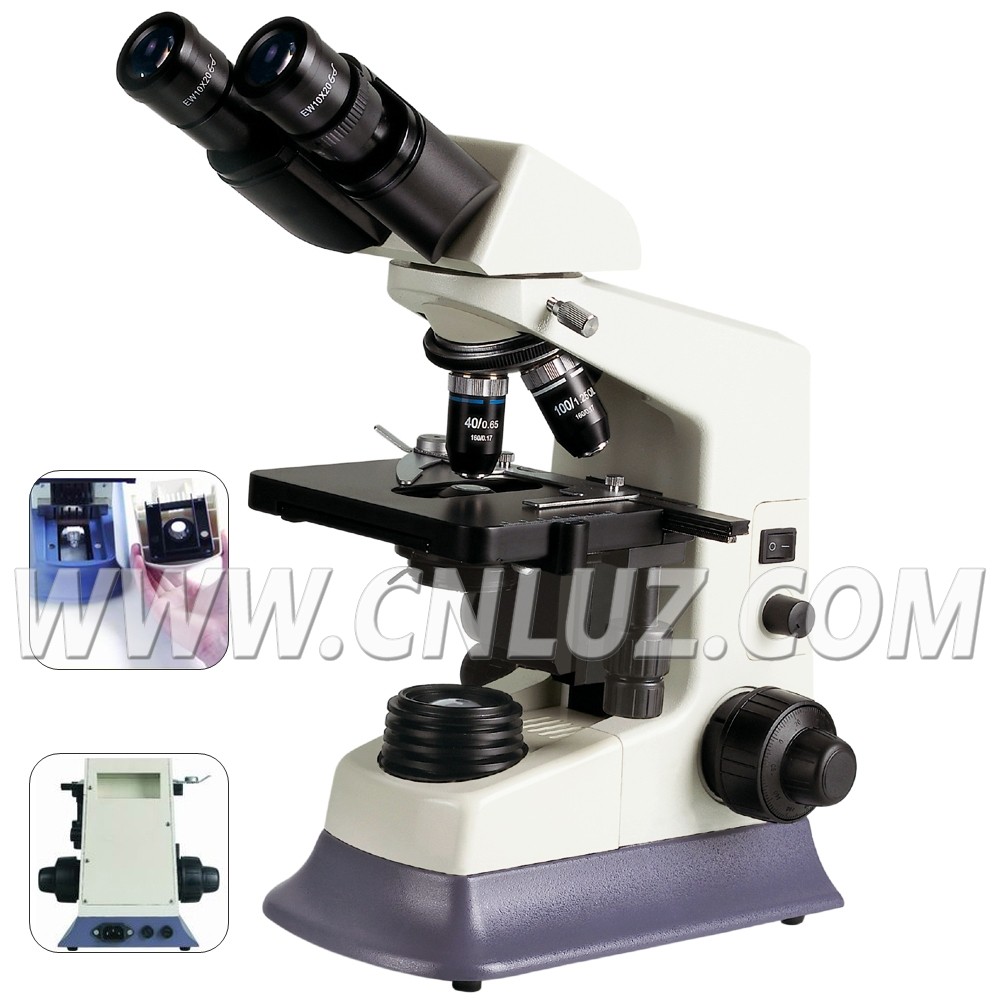

Siedentopf binocular head, inclined at 30°, 360° Rotatable

Siedentopf trinocular head, inclined at 30°, 360° Rotatable

Eyepiece

Wide field eyepiece WF10x/ 20

Semi-plan Achromatic Objective 4x

Semi-plan Achromatic Objective 10x

Semi-plan Achromatic Objective 40x

Semi-plan Achromatic Objective 100x

Backward quadruple nosepiece

Double Layers Mechanical Stage 140×140mm/ 75×50mm

Condenser

Abbe condenser N.A.1.25 with Iris diaphram & filter

Filter

Blue Filter

Green Filter

Illumination

Halogen lamp 6V/ 20W, brightness adjustable

Objective

Plan achromatic objective 4x

Plan achromatic objective 10x

Plan achromatic objective 20x

Plan achromatic objective 40x

Plan achromatic objective 60x

Plan achromatic objective 100x

Video Attachment

C Mount 1x

C Mount 0.5x

Nosepiece

Quintuple nosepiece

Phase Contrast Attachment

Simple phase contrast set

Sliding phase contrast set

Turret phase contrast set

Polarization Set

Simple polarization set

Dark Field Condensor

Dark field condenser (Dry) N.A. 0.9

Dark field condenser (Oil) N.A. 1.25-1.36

Illumination

Kohler illumination
