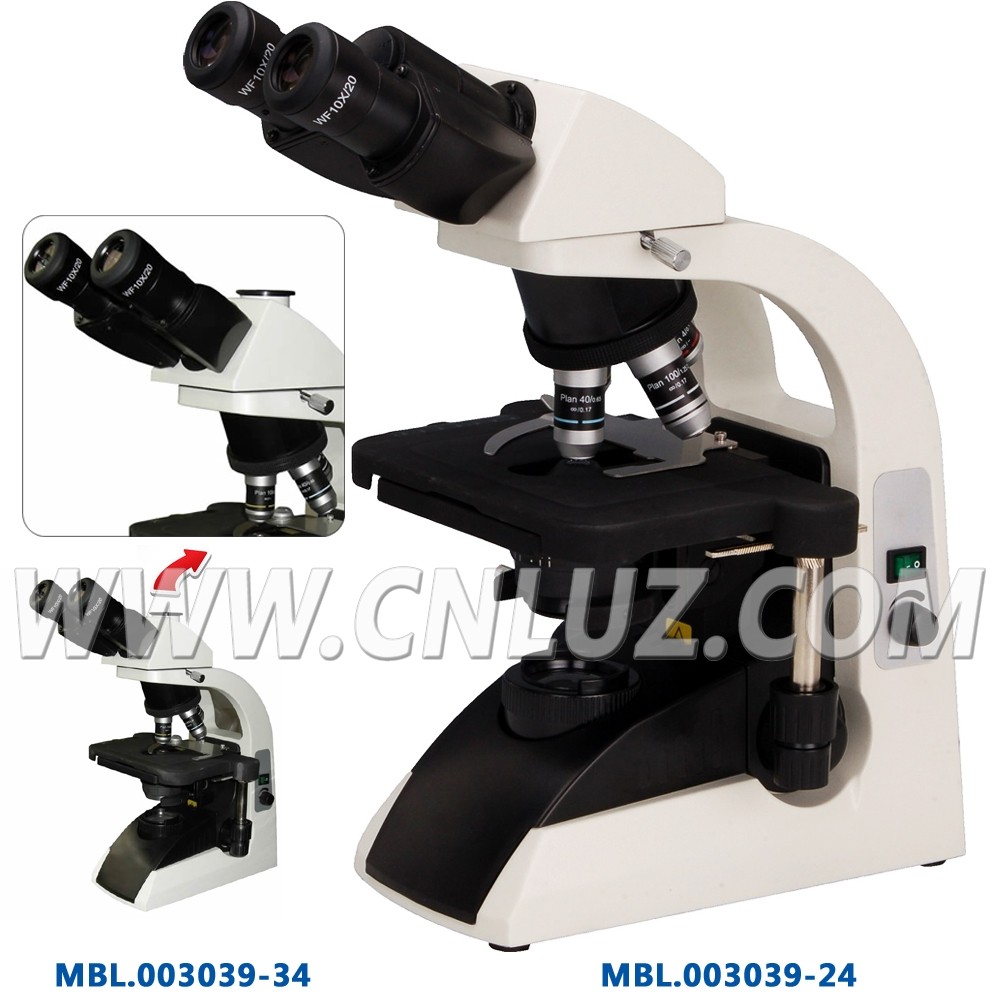

MBL.003039-34
|
|
|
Siedentopf binocular viewing head, inclined at 30°,360°rotatable |
Siedentopf trinocular viewing head, inclined at 30°,360°rotatable |
|
Optical System
|
Infinite optical system
|
|
Eyepiece
|
WF10x/20
|
|
|
Infinite plan achromatic objective 4x
|
|
Infinite plan achromatic objective 10x
|
|
Infinite plan achromatic objective 40x
|
|
Infinite plan achromatic objective 100x
|
|
|
Backward quadruple nosepiece
|
|
Focusing
|
Coaxial coarse & fine adjustment, range 25mm, fine division 0.002mm
|
|
|
Rectangular 216×150mm, cross travel 78×54mm,
using low-positioned X/ Y coaxial control knob
|
|
Condenser
|
Abbe condenser NA.1.25 with aperture diaphragm
|
|
Illumination
|
12V/20W Halogen lamp, brightness adjustable
|
