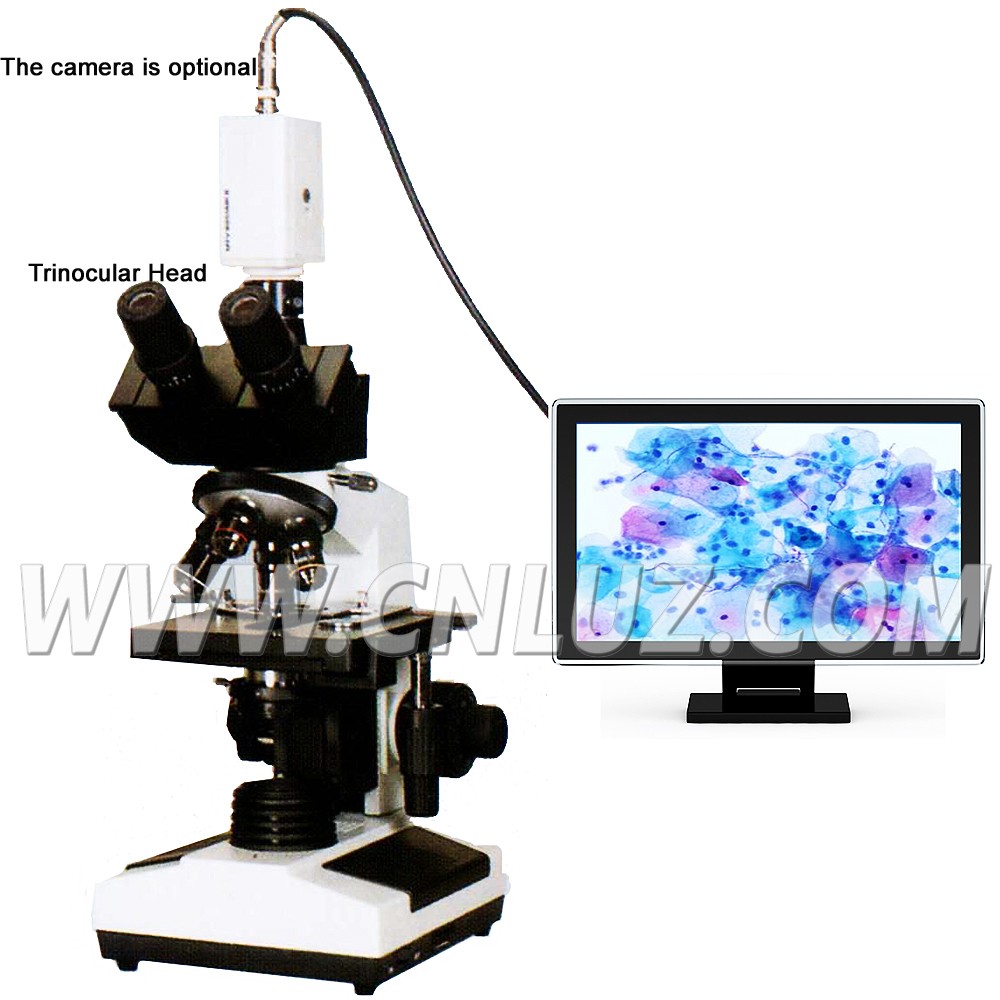

Sliding Trinocular Head, 45° Inclined, With C-Mount
|
|
Eyepiece
|
Wide Field WF10x/18mm
|
|
Wide Field WF16x/11mm
|
|
|
Achromatic objective 4x
|
|
Achromatic objective 10x
|
|
Achromatic objective 40x
|
|
Achromatic objective 100x
|
|
|
|
|
|
Double Layer Mechanical Stage, 140*140mm, Mvoing Range 50*75mm
|
|
Condenser
|
N.A.1.25 Abbe Condenser, Iris Diaphargm, With Filter Holder
|
|
Focusing
|
Low Position Coaxial Coarse & Fine Focusing. Fine Focusing Scale 0.002mm, With Tension Adjustment, With Up Limit
|
|
Filter
|
Blue filter
|
|
Yellow filter
|
|
Green filter
|
|
|
|
|
Built-in Illumination 6V20W Halogen Lamp
|
|
|
|
|
|
|
Dark Field Condenser, N.A. 0.7~0.9, Dry
|
|
Dark Field Condenser, N.A. 1.25~1.35, Immersion
|
| Polarizing |
Simple Polarizing Kit
|
| Phase Contrast |
- Sliding Phase Contrast Condenser
- Achromatic Phase Contrast Objective 10x,40x
- Centering Telescope
- Green Filter
|
| Fluorescent |
- Power Supplier 220V/110V Interchangeable, Digital Display
- 100WHBO Ultra Hi-Voltage Spherical Mercury Lamp
- Barrier To Resist Ultraviolet Light
- Fluorescence Free Oil
- Fluorescent Objective 10x,25x,40x,100x
Excitation Filter B/G
|
| Excitation Filter U/V |
|
