MBL.023005Binocular Compound Microscope, 40X~1000X

The personal belonging of young scientists
This biological microscope with elaborate appearance and reliable quality, is beautiful and practical. Its easy operation and clear image inspire students' imagination and interesting of microscopy world, is helpful to explore the mystery of life science. New generation of scientists are born from here.
Compact and solid, innovative frame
The frame with hollow design is lightweight but stable, easy to carry. Pure white body with blue on the both sides, is fresh and vivid.
Ergonomics design
According to different interpupillary distances and eyesights of different people, the spacing of binocular tubes can be adjustable from 50mm to 75mm and the left tube with the focusing device, diopter is ±5 adjustable.

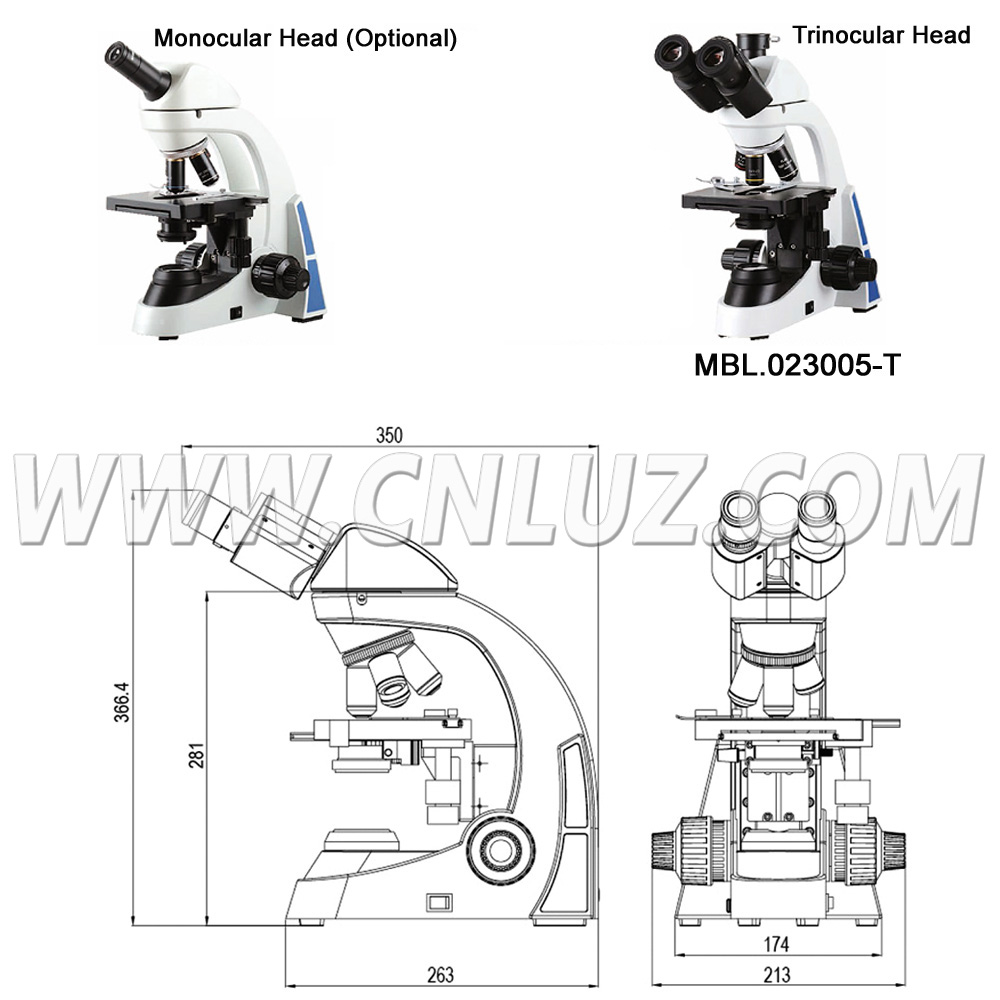

Specification	MBL.023005-BA	MBL.023005-BP	MBL.023005-T
Head	Binocular Head, 30° Inclined, Diopter Adjustable +/-5°, Interpupillary Distance 50~75mm	Binocular Head, 30° Inclined, Diopter Adjustable +/-5°, Interpupillary Distance 50~75mm	Trinocular Head, 30° Inclined, Diopter Adjustable +/-5°,Interpupillary Distance 50~75mm, Light Split Ratio 80:20
Eyepiece	Wide field eyepiece WF10x / 18mm
Objective	Achromatic Objective 4x	Plan Objective 4x	Plan Objective 4x
	Achromatic Objective 10x	Plan Objective 10x	Plan Objective 10x
	Achromatic Objective 40x	Plan Objective 40x	Plan Objective 40x
	Achromatic Objective 100x	Plan Objective 100x	Plan Objective 100x
Nosepiece	Backward, Quarduple Nosepiece
Focusing	Low Position Designed, Coaxial Coarse & Fine Focusing, Coarse Focusing Range 25mm, Fine Focusing Scale 0.002mm, With Tension Adjustment, With Upper Safty Stop
Stage	Double Layer Mechanical Stage, Size 132140mm, Moving Range 5076mm, Precision 0.1mm
Condenser	Abbe N.A.1.25, With Iris Diaphragm, Fixed But Centeradjustable
Illumination	3W LED High Brightness
Power	Wide Voltage AC100~240V Input, DC 6V1A Output

Item	Optional Accessories
Head	Monocular Head, 30° Inclined
