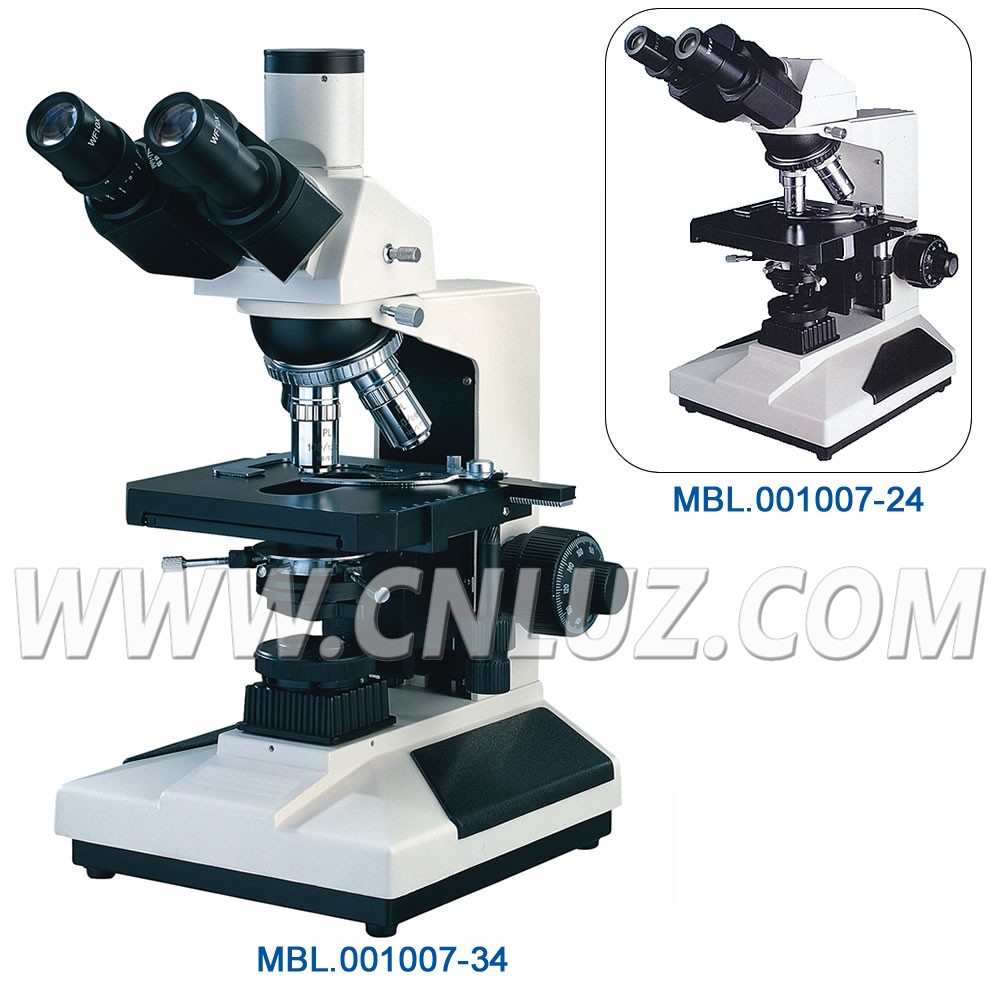

MBL.001007Binocular/Trinocular Compound Microscope, 40X~1000X
  • /usr/575/images/Products/Y/57517998.jpg
  • /usr/575/Picture/Y/10994.jpg
  • /usr/575/Picture/Y/10995.jpg
  •

This microscope equipped with plan achromatic objective and wide field eyepieces, can provide clear image by easy operation.

  • With plan objectives
  • Binocular or trinocular head inclined 30° available
  • Coaxial coarse/fine focusing system with tension adjustable and up stop
  • Kohler illumination with 6V 20W halogen lamp
Specification
MBL.001007-24
MBL.001007-34
MBL.001007-25
MBL.001007-35
Eyepiece
WF10X(Φ20mm)
Head
Binocular
Trinocular
Binocular
Trinocular
Objective
Plan 4X/0.10
Plan 4X/0.10
Plan 10X/0.25
Plan 10X/0.25

Plan 20X/0.40
Plan 40X/0.65(Spring)
Plan 40X/0.65(Spring)
Plan 100X/1.25(Spring, oil)
Plan 100X/1.25(Spring, oil)
Focusl System
Coaxial coarse/fine focus system, Minimum division of fine focusing: 2um
With tensional adjustable and up stop,
Nosepiece
Quadruple
backward ball bearing inner locating
Quintuple
backward ball bearing inner locating
Stage
Double layer mechanical, size 160x140mm, moving range 75x50mm
Condenser
Abbe N.A.1.25 Rack & pinion adjustment
Filter
Blue filter
Frosted filter
Collector
For halogen lamp
Light source
6V 20W halogen lamp with brightness control

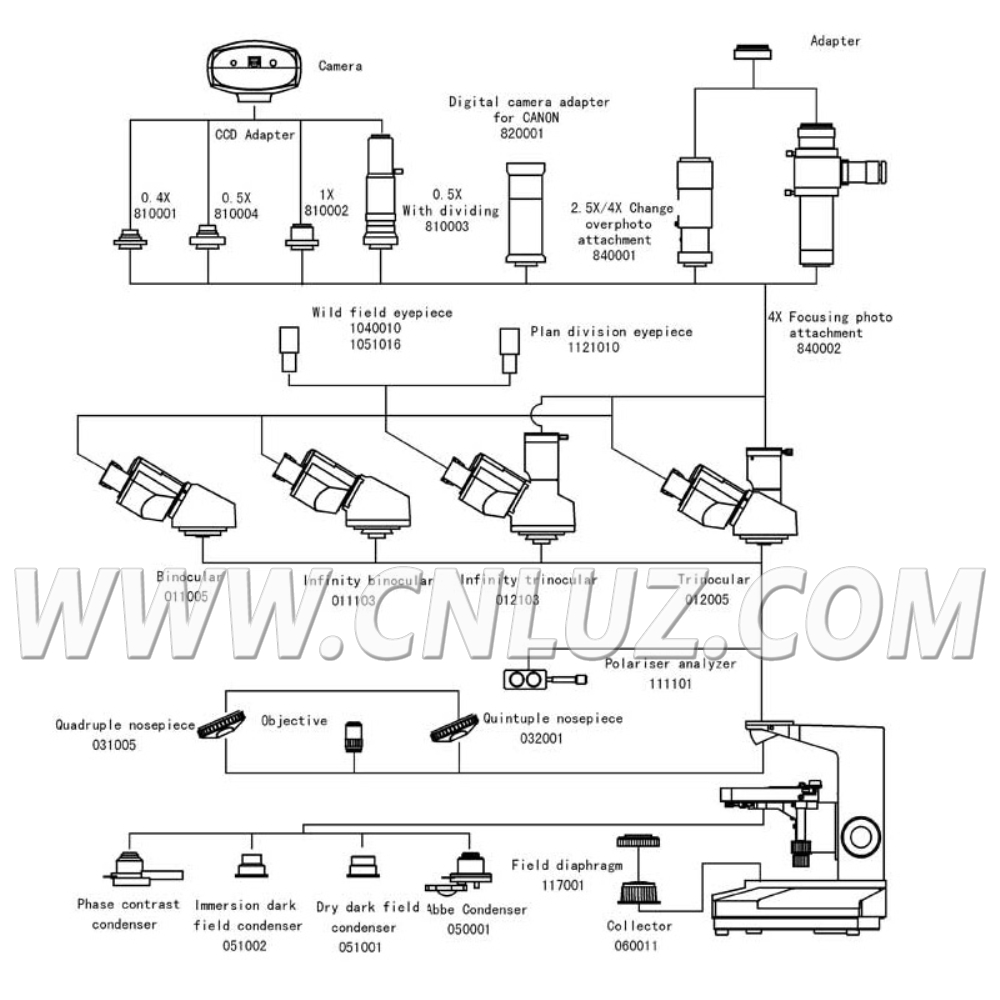

Item
Optional Accessories
Item No.
Eyepiece
Wide field WF16x/11mm
A51.0203-16A
Divding 10x/20mm, 0.1mm/Div
A51.0205-10
Filter
Green filter
A56.0209-02
Yellow filter
A56.0209-03
Condenser
Dark field, dry
A5D.0210-D
Dark field, immersion
A5D.0210-I
Phase Contrast Attachment
Centering telescope
A5C.0212-1
Objective, Phase contrast plan 10x/0.25 PHP
A5C.0230-P10
Objective, Phase contrast plan 20x/0.40 PHP(Spring)
A5C.0230-P20
Objective, Phase contrast plan 40x/0.65 PHP(Spring)
A5C.0230-P40
Objective, Phase contrast plan 100x/1.25 PHP (Spring,oil)
A5C.0230-P100
PH-I Turnplate phase contrast condenser
A5C.0210-1
PH-II Turnplate phase contrast condenser
A5C.0210-4
Flashboard phase contrast set
A5C.0210-2
Pull board phase contrast set
A5C.0210-3
Infinity Optical System
Binocular head inclination of 30°
A53.0203-111
Trinocular head inclination of 30°
A53.0208-1
Centering telescope
A5C.0212-2
Objective, infinity plan achromatic 4x/0.10
A52.0205-04
Objective, infinity plan achromatic 10x/0.25
A52.0205-10
Objective, infinity plan achromatic 20x/0.25
A52.0205-20
Objective, infinity plan achromatic 40x/0.65(Spring)
A52.0205-40
Objective, infinity plan achromatic 100x/1.25(Spring, oil)
A52.0205-100
Objective, infinity phase contrast plan 10x/0.25 PHP
A5C.0233-10
Objective, infinity phase contrast plan 20x/0.40 PHP (Spring)
A5C.0233-20
Objective, infinity phase contrast plan 40x/0.65 PHP (Spring)
A5C.0233-40
Objective, infinity phase contrast plan 100x/1.25 PHP (Spring, oil)
A5C.0233-100
CCD adapter
0.4x
A55.0202-01
0.5x
A55.0202-04
1x
A55.0202-02
0.5x with dividing 0.1mm/Div
A55.0202-03
Digital Camera Adapter
For Canon EF ditigal SLR camera adapter
A55.0204-02
Photo Adapter
2.5x/4x change over photograph attachment with 10x viewing eypiece
A55.0201-01
4x focusing photograph attachment
A55.0201-02
MD adapter
A55.0201-03
PK adapter
A55.0201-04
Polarizing Attachment
Polarizer 360° rotatable
A5P.0210-1
Analyzer
A5P.0211-1
