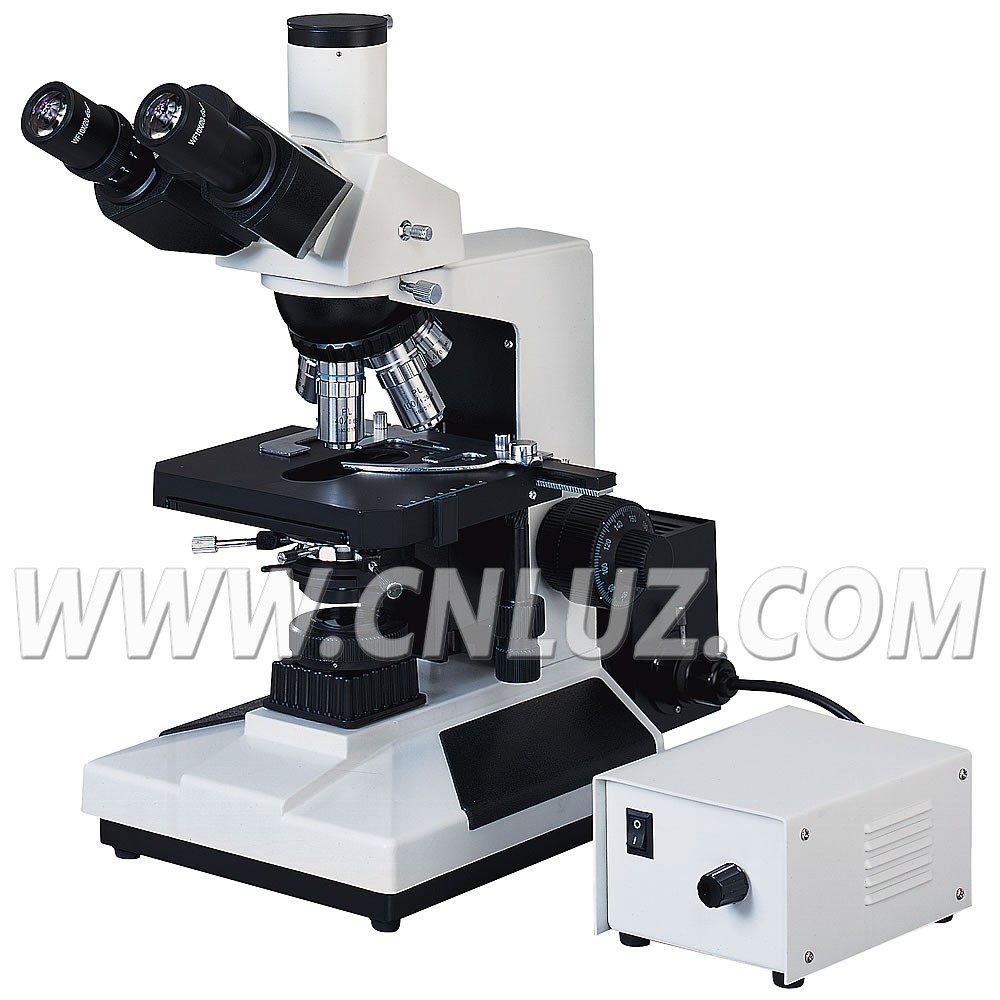

MBL.001008Trinocular Compound Microscope, 40X~1000X

With plan objectives
Binocular or trinocular head inclined 30° available
Coaxial coarse/fine focusing system with tension adjustable and up stop
Kohler illumination with 12V 50W halogen lamp

Specification	MBL.001008
Eyepiece	WF10X(Φ20mm)
Head	Trinocular Inclination of 30°
Objective	Plan 4X/0.10
	Plan 10X/0.25
	Plan 20X/0.40
	Plan 40X/0.65(Spring)
	Plan 100X/1.25(Spring, oil)
Focusl System	Coaxial coarse/fine focus system, Minimum division of fine focusing: 2um With tensional adjustable and up stop
Nosepiece	Quintuple backward ball bearing inner locating
Stage	Double layer mechanical, size 160x140mm, moving range 75x50mm
Condenser	Abbe N.A.1.25 Rack & pinion adjustment
Filter	Blue filter
Filter	Frosted filter
Collector	For halogen lamp
Light source	Kohler illumination, 12V 50W halogen lamp with brightness control

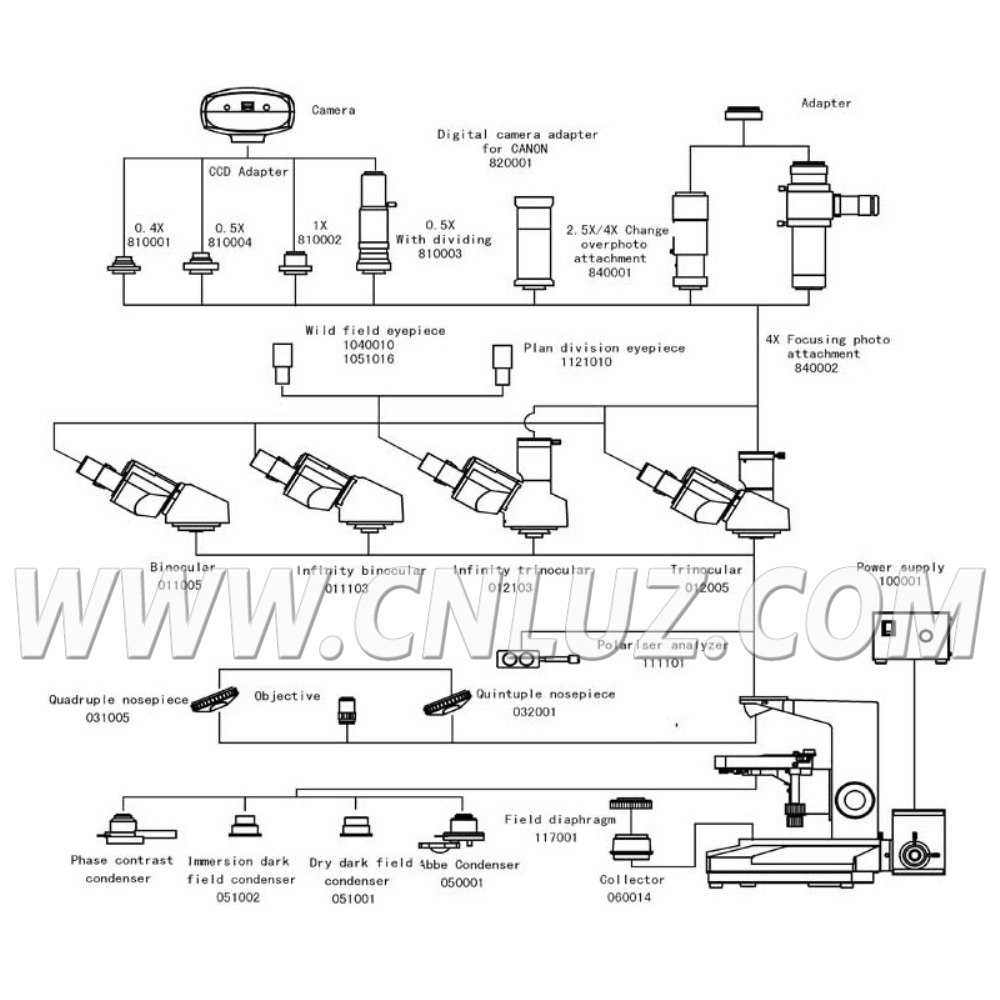

Item	Optional Accessories		Item No.
Eyepiece	Wide field WF16x/11mm		1051016
	Divding 10x/20mm, 0.1mm/Div		1120010
Filter	Green filter		115002
	Yellow filter		115003
Condenser	Dark field, dry		115003
	Dark field, immersion		051002
Phase Contrast Attachment	Eyepiece	Centering telescope	110001
	Objective	Phase contrast plan 10x/0.25 PHP	2420110
		Phase contrast plan 20x/0.40 PHP(Spring)	2420120
		Phase contrast plan 40x/0.65 PHP(Spring)	2420140
		Phase contrast plan 100x/1.25 PHP (Spring,oil)	2420111
	PH-I Turnplate phase contrast condenser		052001
	PH-II Turnplate phase contrast condenser		052004
	Flashboard phase contrast set		052002
	Pull board phase contrast set		052003
Infinity Optical System	Head	Binocular head inclination of 30°	011103
		Trinocular head inclination of 30°	012103
	Eyepiece	Centering telescope	110002
	Infinity Plan Achromatic Objective	Infinity Plan Achromatic 4x/0.10	2060104
		Infinity Plan Achromatic 10x/0.25	2060110
		Infinity Plan Achromatic 20x/0.25	2060120
		Infinity Plan Achromatic 40x/0.65(Spring)	2060140
		Infinity Plan Achromatic 100x/1.25(Spring, oil)	2060111
	Infinity Phase Contrast Objective	Infinity Phase Contrast Plan 10x/0.25 PHP	2470110
		Infinity Phase Contrast Plan 20x/0.40 PHP (Spring)	2470120
		Infinity Phase Contrast Plan 40x/0.65 PHP (Spring)	2470140
		Infinity Phase Contrast Plan 100x/1.25 PHP (Spring, oil)	2470111
CCD adapter	0.4x		810001
	0.5x		810004
	0.5x with dividing 0.1mm/Div		810003
	1x		810002
Camera	DV-1,With USB & video output		800001
	DV-2,With USB output		800003
	DV-3,With video output		800005
	Photography,USB Output		1096001
	Photography,VIDEO Output		1108001
Adapter	Digital Camera	CANON Digital camera adapter (A610,A620,A630,A640)	820001
	Photograph	2.5X/4X Change over photograph attachment with 10X viewing eyepiece	840001
		4X Focusing photograph attachment	840002
		MD Adapter	840003
		PK Adapter	840004
	For LED Lighsource	Input:230V 50/60HZ Output:9V 500mA	101001
		Input:110V 50/60HZ Output:9V 500mA	101002
