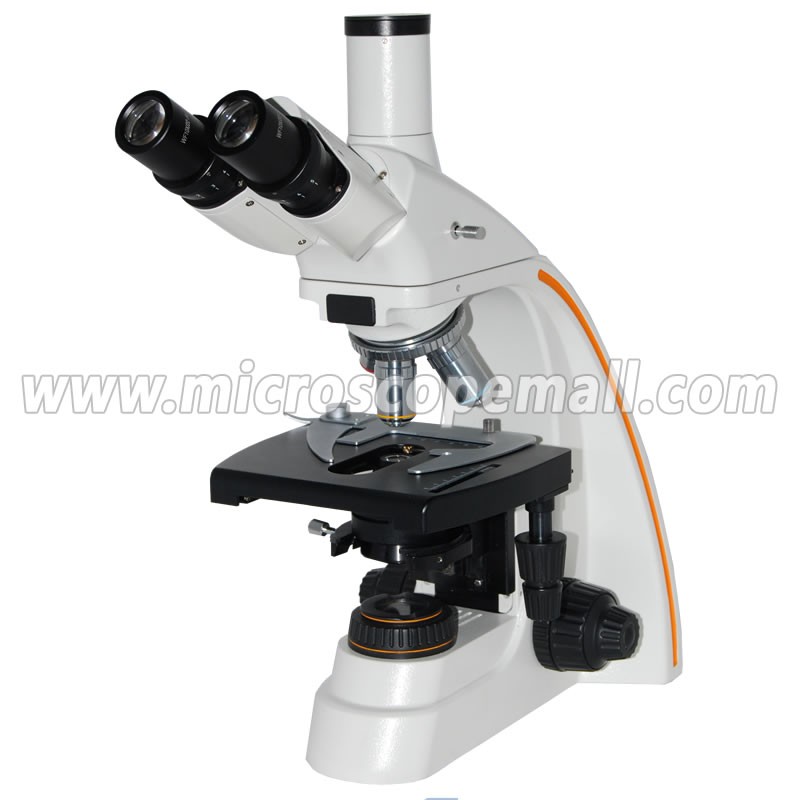

MBL.001009Trinocular Compound Microscope, 40X~1000X
  • /usr/575/images/Products/Y/57518000.jpg
  • /usr/575/Picture/Y/10999.jpg
  • /usr/575/Picture/Y/11005.jpg
  •

This microscopes is equipped with infinity plan achromatic objectives and wide field eyepieces.

  • It have beautiful sculpt and provide clear image, wide field, convenience operation.
  • It can be used for biology medicine agriculture and industry area widely.
  • It is the ideal instrument in medical treatment, teaching demonstration and scientific research.
Specification
MBL.001009
Eyepiece
WF10X(Φ22mm)
Head
Trinocular,inclination of 30°
Infinity Plan
Achromatic Objective
PL 4X/0.10 (Work distance)：19.8 mm
PL 10X/0.25 (Work distance)：5.0 mm
PL 40X/0.65 (Spring) (Work distance)：0.66 mm
PL 100X/1.25 (Spring, oil) (Work distance)： 0.36mm
Focusl System
Coaxial coarse/fine focus system, Minimum division of fine focusing: 2um
With tensional adjustable and up stop,
Nosepiece
Quadruple (backward ball bearing inner locating)
Stage
Double layer mechanical, size 193x155mm, moving range 75x50mm
Condenser
Abbe N.A.1.25 Rack & pinion adjustment
Filter
Blue filter and Ground glass
Collector
For LED lamp
Light source
LED, High Brightness, Light Adjustable

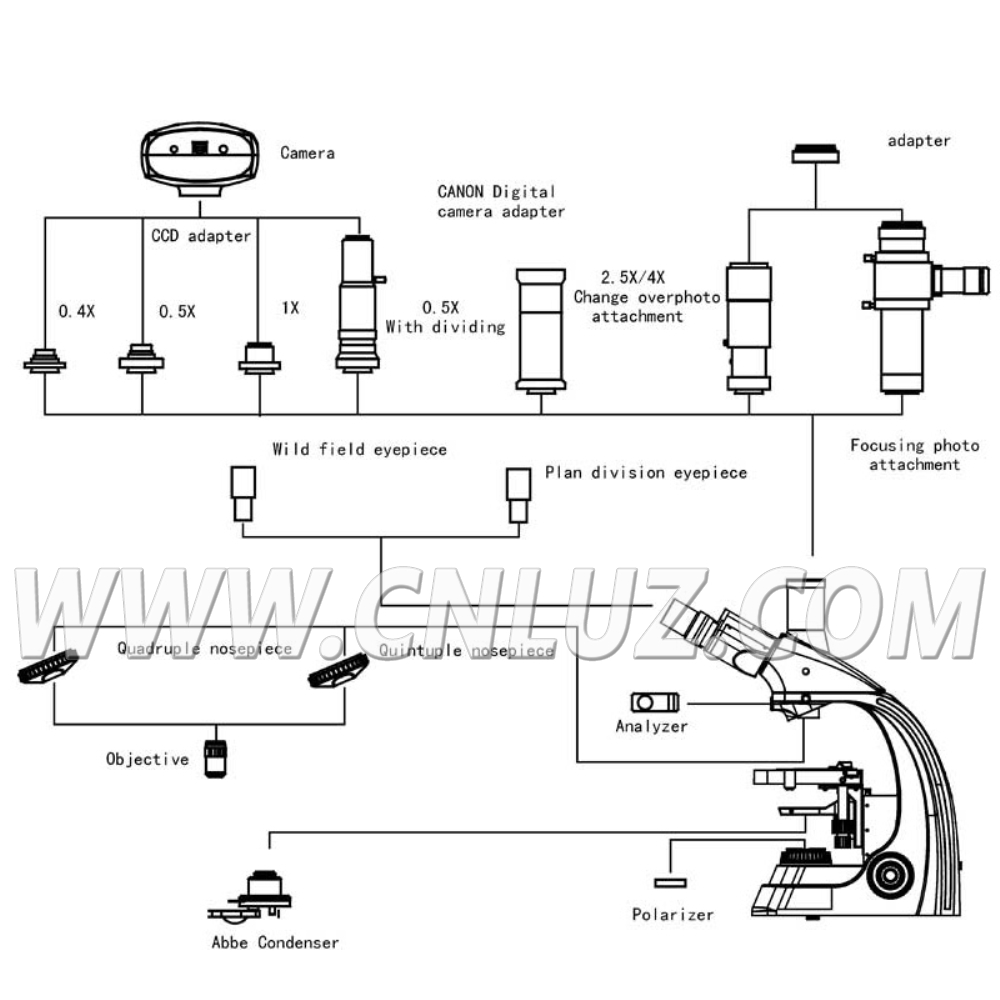

Item
Optional Accessories
Eyepiece
 Dividing eyepiece(field number:|μ22mm) , 0.1mm/Div
Filter
Green filter
Yellow filter
CCD adapter 0.4x
0.5x
1x
0.5x with dividing 0.1mm/Div
Infinity Plan Achromatic Objective PL 20X/0.40 (Work distance:8.8 mm
PL 60X/0.85 (Work distance):0.25mm
Phase Contrast Unit
 Centering telescope
Objective, Phase contrast plan 10x/0.25 PHP
Objective, Phase contrast plan 20x/0.40 PHP(Spring)
Objective, Phase contrast plan 40x/0.65 PHP(Spring)
Objective, Phase contrast plan 100x/1.25 PHP (Spring,oil)
Digital Camera Adapter
For Canon EF ditigal SLR camera adapter
Polarizing Attachment

Polarizer 360° rotatable
Analyzer
