Trinocular Compound Microscope, 40X~1000X_IHPVISION:Microscope,Digital Vision

MBL.001011Trinocular Compound Microscope, 40X~1000X

Specification	MBL.001011-34	MBL.001011-35
Eyepiece	WF10X(Φ22mm)
Head	Trinocular inclination of 30°
Objective	Infinity plan 4X/0.10		Infinity plan 4X/0.10
	Infinity plan 10X/0.25		Infinity plan 10X/0.25
			Infinity plan 20X/0.40
	Infinity plan 40X/0.65(Spring)		Infinity plan 40X/0.65(Spring)
	Infinity plan 100X/1.25(Spring, oil)		Infinity plan 100X/1.25(Spring, oil)
Focusl System	Coaxial coarse/fine focus system, Minimum division of fine focusing: 2um With tensional adjustable and up stop,
Nosepiece	Quadruple backward ball bearing inner locating		Quintuple backward ball bearing inner locating
Stage	Double layer mechanical, size 210x140mm, moving range 75x50mm
Condenser	Abbe N.A.1.25 Rack & pinion adjustment
Filter	Blue filter
	Frosted filter
Collector	For halogen lamp, with field diaphragm
Light source	Kohler illumination , 6V 30W halogen lamp with brightness control

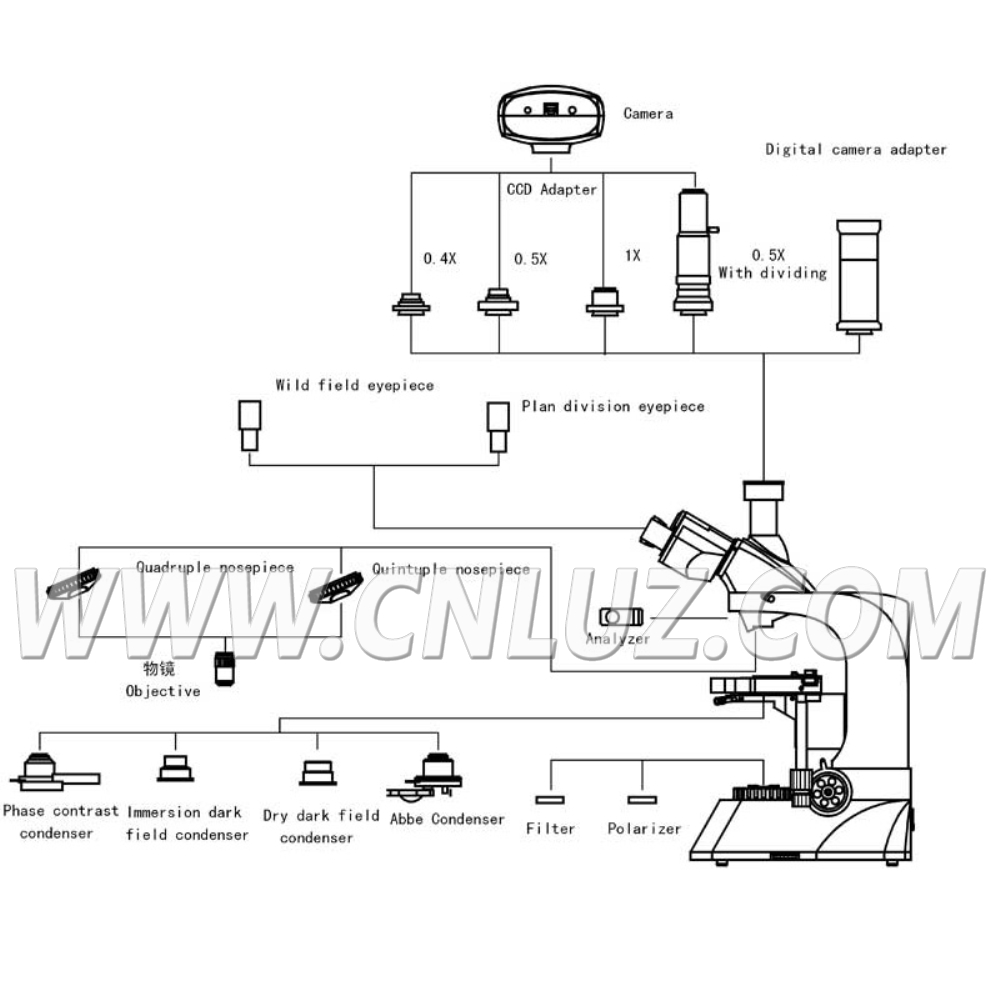

Item	Optional Accessories	Item No.
Eyepiece	Divding 10x/20mm, 0.1mm/Div	1121012
objective	Infinity plan achromatic 20X/0.40,Work distance：8.8 mm	2060120
objective	Infinity plan achromatic 60X/0.85,Work distance：0.25mm	2060160
Nosepiece	Quintuple(Backward ball bearing inner locating)	032002
Filter	Green filter	115002
Filter	Yellow filter	115003
Condenser	Dark field, dry	051001
Condenser	Dark field, immersion	051002
Phase Contrast Unit	Centering telescope	110002
	Infinity phase contrast plan achromatic 10X/0.25 PHP	2470110
	Infinity phase contrast plan achromatic 20X/0.40 PHP	2470120
	Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring)	2470140
	Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)	2470111
	PH-I Turnplate phase contrast condenser	052001
	PH-II Turnplate phase contrast condenser	052004
	Flashboard phase contrast set	052002
	Pull board phase contrast set	052003
CCD adapter	0.4x	810001
	0.5x	810004
	1x	810002
	0.5x with dividing 0.1mm/Div	810003
Camera	DV-1 Video output 380/520 TV line USB output 0.42 M pixel	800001
	DV-2 With USB output 1.3M,2.0M,3.0M pixel	800003
	DV-3 With video output 380/520 TV line	800005
Digital Camera Adapter	CANON(A570,A610,A620,A630,A640,A650,EF)NIKON(F)	820001
Photo Adapter	2.5x/4x change over photograph attachment with 10x viewing eypiece	840001
	4x focusing photograph attachment	840002
	MD adapter	840003
	PK adapter	840004
Polarizing Attachment	Polarizer 360° rotatable	111001
Polarizing Attachment	Analyzer	111105
