Binocular/Trinocular Compound Microscope, 40X~1000X_IHPVISION:Microscope,Digital Vision

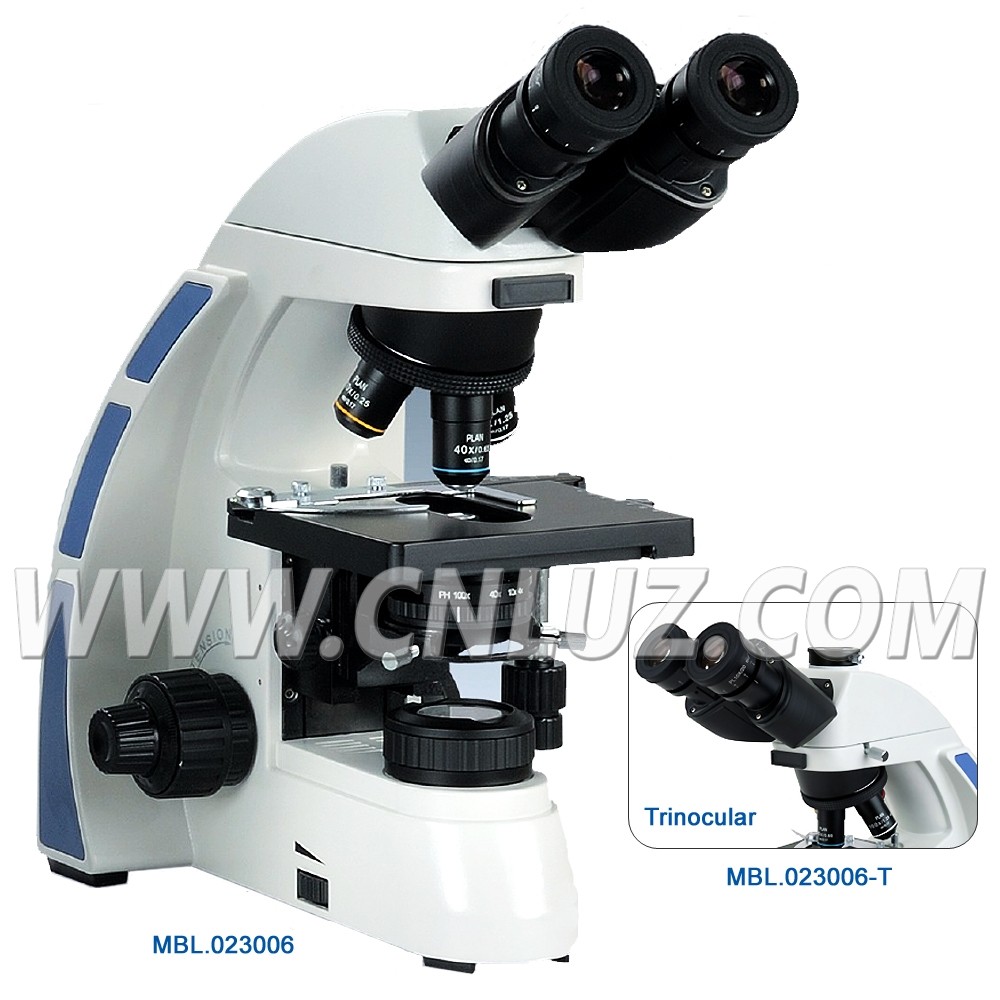

MBL.023006Binocular/Trinocular Compound Microscope, 40X~1000X

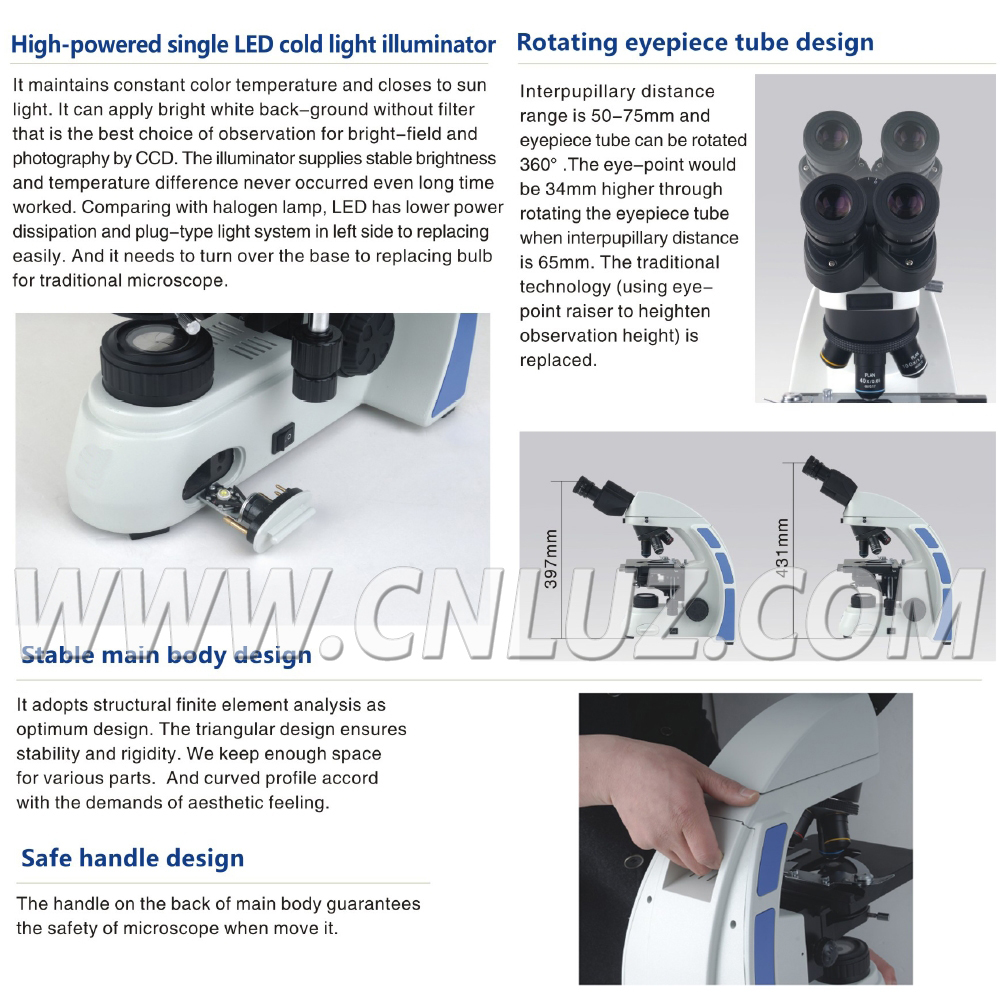

Infinity color corrected optical system with high quality micro-technique presents superexcellent micro-image at any observation.
Wide-field high eye-point eyepieces and plan achromatic objectives make the effect of fluorescence observation more perfect.
Outstanding appearance design and ergonomics structure design, long time use without feeling tired.
With the design of security lock and safe limits, it is much more secure, stable. and can be kept for long.
Digital biological microscope model:MDB.023007

Specification	MBL.023006-B	MBL.023006-T
Optical system	Infinity corrected Achromatic optical system
Head	Binocular, 30° Inclined, Interpupillary Distance 50-75mm	Trinocular, 30° Inclined, Interpupillary Distance 50-75mm,with 50/50 light splits
Eyepiece	PL10x/20mm, Wide Field, High Eye Point, Diopter Adjustable +/-5 Degree
Objective	Infinity Plan Achromatic 4x/0.10
	Infinity Plan Achromatic 10x/0.25
	Infinity Plan Achromatic 20x/0.40
	Infinity Plan Achromatic 40x/0.65
	Infinity Plan Achromatic 100x/1.25
Nosepiece	Backward Quadruple
Working Stage	Double Layer Mechanical Stage 150140mm, Moving Range 7650mm, Precision 0.1mm
Focusing	Low Position Coaxial Coarse & Fine Focusing Knob, with Safty Limitation and Tension Adjustment Ring. Coarse Range 25mm, Fine Precision 0.002mm
Condenser	Kohler N.A. 1.25, with Socket for Phase Contrast and Dark Field Slides, Center Fixed
Light Source	3W LED, Intensity Adjustable, Center Fixed
Power	90~240V Wide Range Power Supply

Item	Optional Accessories
Eyepiece	PL10x/22mm, Wide Field, High Eye Point, Diopter Adjustable +/-5 Degree
Nosepiece	Backward Quintuple

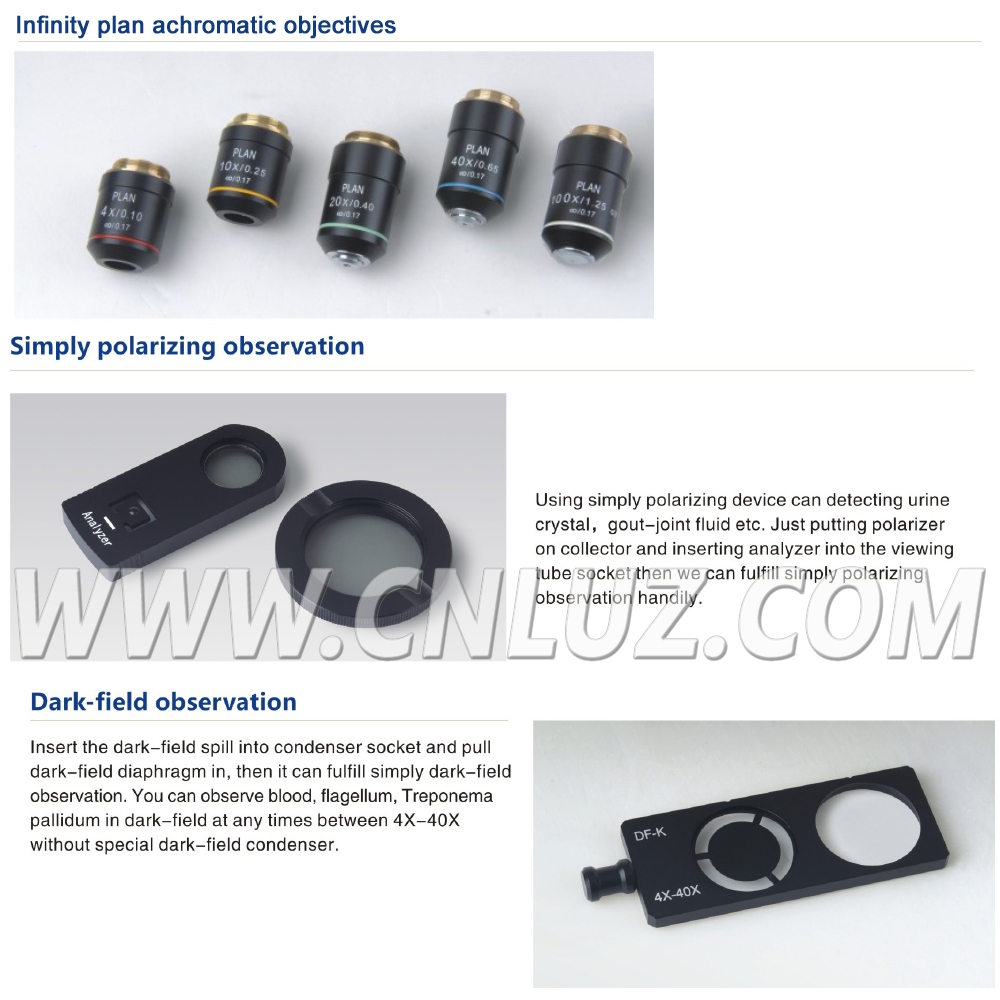

Dark Field	Dark Field Slide, for 4x~40x Objective
Polarizing	Polarizer
Polarizing	Analyser
Filter	Blue, Dia.45
	Yellow,Dia.45
	Green, Dia.45
	Netural, Dia.45
Adapter	C-Mount 1.0x, Focus Adjustable
	C-Mount 0.5x, Focus Adjustable , for 1/2 CCD
	C-Mount 0.35x, Focus Adjustable, for 1/3 CCD
	Photo Adapter with PK or MD mount, with 3.2x Photo Eyepiece
	Professional Photo C Mount, with Photo Eyepiece
Phase Contrast	Centering Telescope, Dia.30mm
	Phase Contrast Slide, for 10x, 40x Infinity Objective
	Phase Contrast Slide, for 20x,100x Infinity Objective
	Infinity Plan Phase Contrast Objective 10x/0.25, W.D.=4.70mm
	Infinity Plan Phase Contrast Objective 20x/0.50, W.D.=1.75mm
	Infinity Plan Phase Contrast Objective 40x/0.65, W.D.=0.72mm
	Infinity Plan Phase Contrast Objective 100x/1.25, W.D.=0.15mm
	N.A.1.25 Kohler Illumination Turnplate Phase Contrast Condense Set, For 10x,20x,40x,100x Phase Contrast Observation
	N.A.1.25 Kohler Illumination Turnplate Phase Contrast Condenser + Dark Field Condenser Set, For 10x,40x,100x Phase Contrast Observation and Dark Filed Observation
