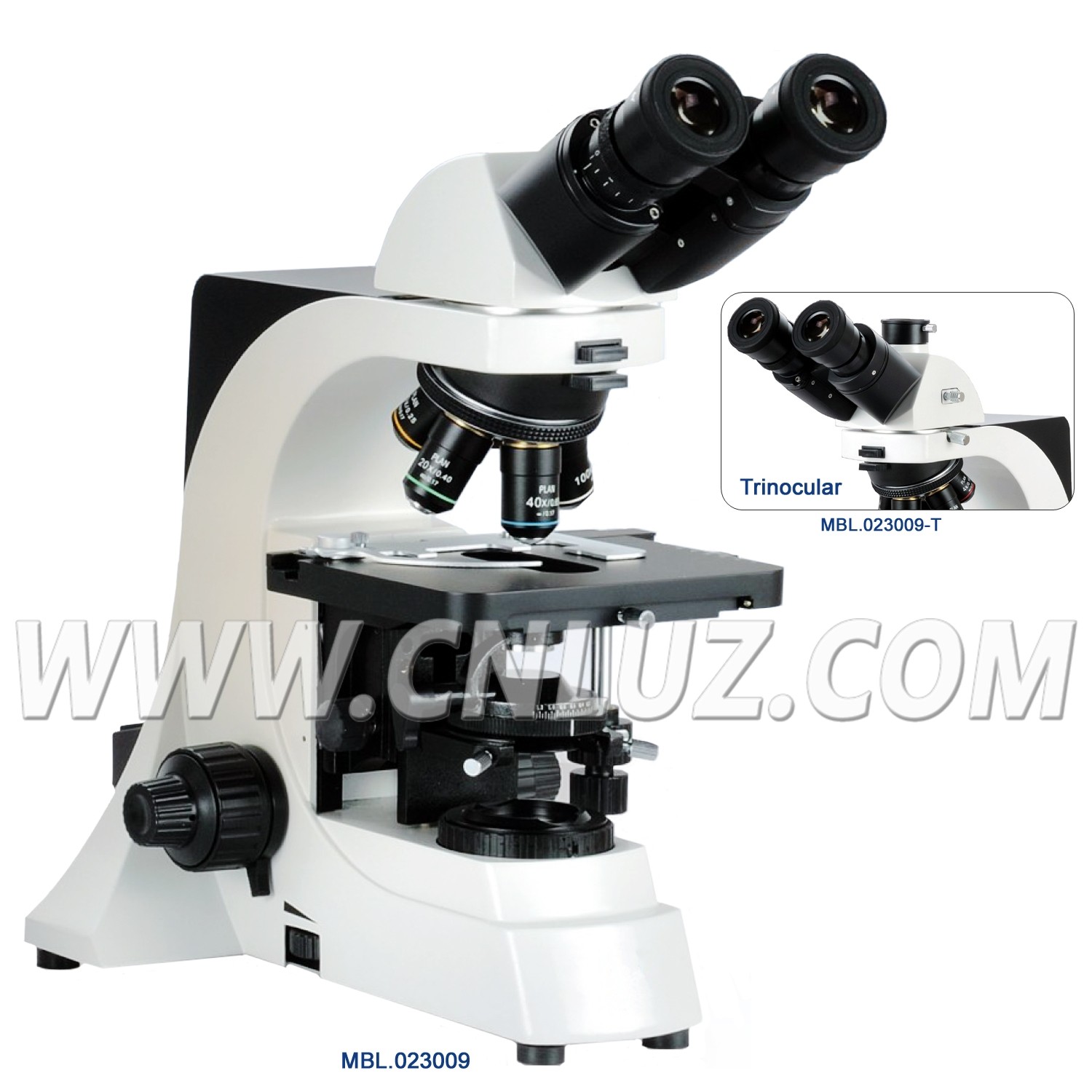

MBL.023009Binocular/Trinocular Compound Microscope, 40X~1000X
  • /usr/575/images/Products/Y/57518033.jpg
  • /usr/575/Picture/Y/11028.jpg
  • /usr/575/Picture/Y/11029.jpg
  •

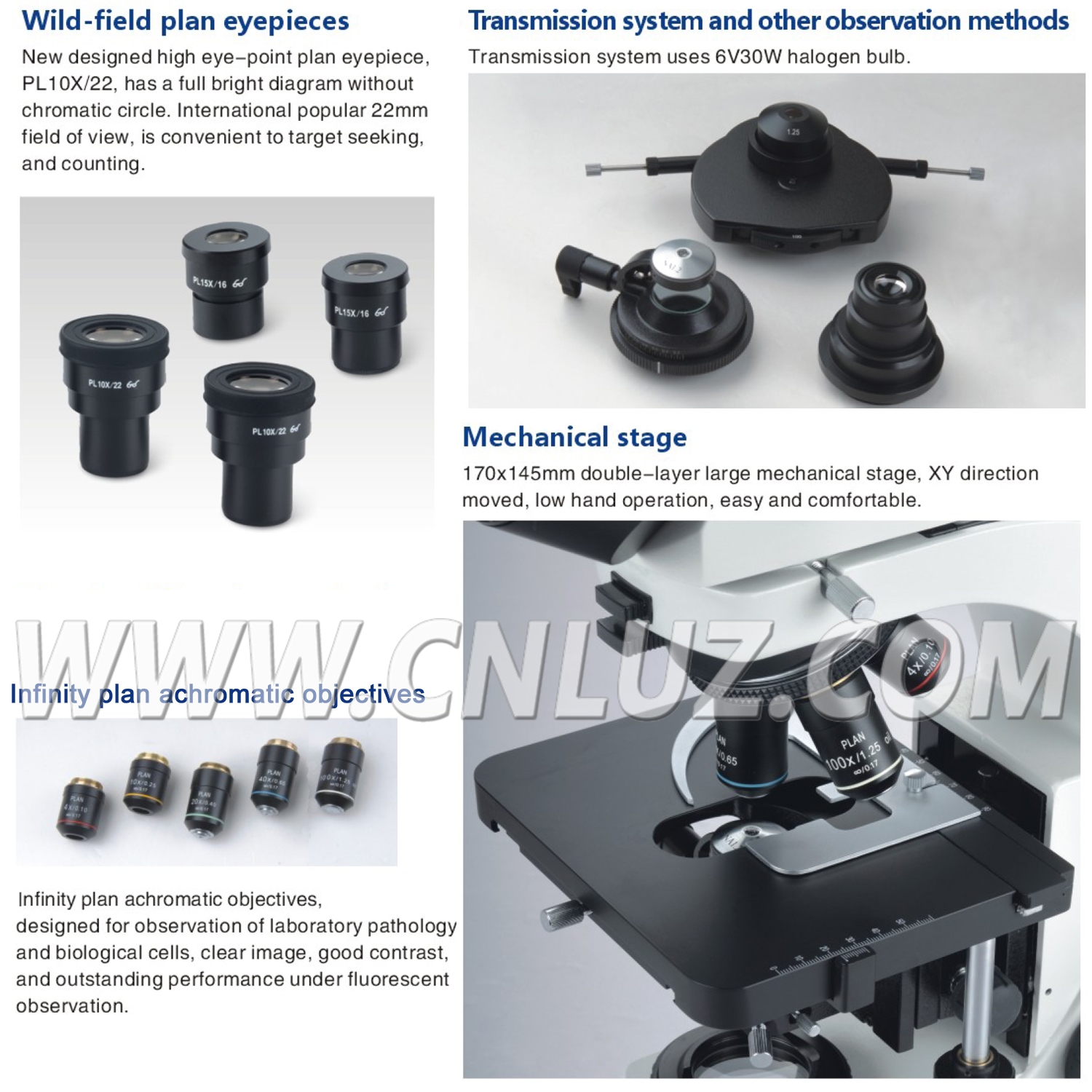

  • A new generation of infinity color corrected optical systems with wild-field high eye-point eyepieces and plan achromatic objectives, presents you sharp and bright micro-images.
  • Integrated T-shaped body with firm structure and ergonomic design makes comfortable operation.
  • Different kinds of accessories, more functions, achieve more methods of observation and suit for all kinds of detections or experiments.
Specification
MBL.023009
MBL.023009-T
Optical System
Color Corrected Infinity Optical System
Head
Binocular, 30° Inclinded, 360° Rotatable, Interpupillary Distance 54~75mm, Diopter Adjustable +/-5°
Trinocular, 30° Inclinded, 360° Rotatable, Interpupillary Distance 54~75mm, Diopter Adjustable +/-5°
Eyepiece

PL10x/22mm, High Eyepoint, With Eye-cup

Objective
Infinity Plan Achromatic Objective 4x/0.1, W.D. 7.18mm
Infinity Plan Achromatic Objective 10x/0.25, W.D. 4.70mm
Infinity Plan Achromatic Objective 20x/0.40, W.D. 1.75mm
Infinity Plan Achromatic Objective 40x/0.65, W.D. 0.72mm
Infinity Plan Achromatic Objective 100x/1.25 W.D. 0.15mm
Nosepiece
Reversed Quintuple Nosepiece
Focusing
Low Position Coaxial Focusing System, WIth Tension Adjustment and Up-limit. Coarse Focusing Range 25mm, Fine Focusing Precision 0.002mm
Stage
Double Layer Mechanical Stage, 175*145mm, Moving Range 75*50mm, Moving Precision 0.1mm
Filter
Blue Filter Dia.45mm
Power
90~240V Wide Range Voltage
Condenser
N.A.1.2/0.22 Swing Achromatic Condenser, With Scale Marked Diaphragm
Illumination
Built-in Koehler Illumination 6V30W Halogen Light (Philips 5761), Brightness Continously Adjustable, Center Pre-fixed

Item
Optional Accessories
Eyepiece
PL10x/22mm, High Eyepoint
PL10x/22mm, Plan Eyepiece with Cross, High Eyepoint
Dark Field
Dark Field Condenser, Dry, N.A=0.9
Dark Field Condenser, Immersion, N.A=1.2
Polarization Set
Polarizer, Dia. 45mm
Analyizer Slide
λ Slide
Rotatable Working Stage
Filter
Yellow, Dia.45mm
Green, Dia.45mm
Neutral, Dia.45mm
Adapter
C-Mount, 1.0x, Focus Adjustable
C-Mount, 0.67x, For 2/3" CCD, Focus Adjustable
C-Mount, 0.50x, For 1/2" CCD, Focus Adjustable
C-Mount, 0.35x, For 1/3" CCD, Focus Adjustable
Infinity Plan Phase Contrast Set
Centering Telescope
Infinity Plan Phase Contrast Objective 10x/0.25, W.D. 4.70mm
Infinity Plan Phase Contrast Objective 20x/0.25, W.D. 1.75mm
Infinity Plan Phase Contrast Objective 40x/0.65, W.D. 0.72mm
Infinity Plan Phase Contrast Objective 100x/1.25, W.D.0.15mm
Infinity Phase Contract Disc Condenser, Abbe N.A.1.25
