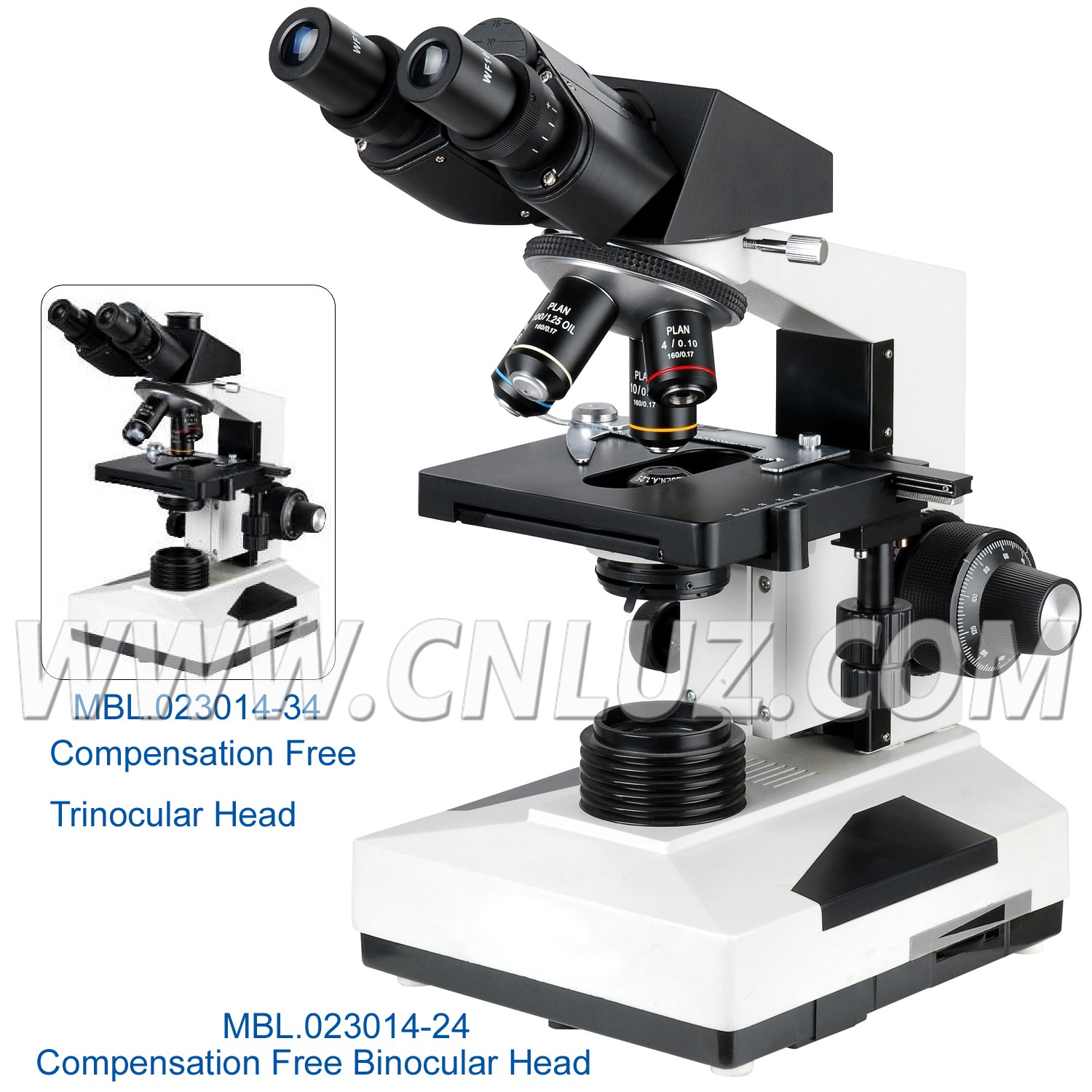

MBL.023014Binocular/Trinocular Compound Microscope, 40X~1600X,
  • /usr/575/images/Products/Y/57518049.jpg
  •
  •
  •
  • 195mm Achromatic Objectives, Mechanical Tube Length 160mm
  • WF10x/18mm Large Field, Wide Angle Eyepiece, All Can Be Mounted With Reticle or Pointer
  • Monocular, Binocular, Trinocular Head Optional
  • Low Position Coaxial Coarse & Fine Focus System
  • Double Layer Mechinal Stage
Specification
MBL.023014-24
MBL.023014-34
Magnification 40x~1600x
Head
 Compensation Free Binocular Head, 30° Inclined Compensation Free Trinocular Head, 30° Inclined
Eyepiece

Wide Field WF10x/18mm, High Eyepoint
Wide Field WF16x/14mm, High Eyepoint
Objective
 Plan Achromatic 4x/0.10, 10x/0.25, 40xs/0.65, 100xs/1.25(Oil)
Nosepiece
Quadruple Nosepiece
Focusing
Low Position Coaxial Coarse & Fine Focusing. Fine Focusing Scale 0.002mm, With Tension Adjustment, With Up Limit
Stage
Double Layer Mechanical Stage, 132*140mm, Mvoing Range 50*76mm, Precision 0.1mm
Condenser
N.A.1.25 Abbe Condenser, Iris Diaphargm, With Filter Holder
Filter Blue, Yellow, Green
Light Source
Built-in Illumination 230V/20W Tungsten Bulb

Item
Optional Accessories
Eyepiece


 WF10x/18mm with Reticle

WF10x/18mm with Pointer
WF20x/10mm
Objective Achromatic 60xs/0.85
Plan Achromatic 25xs/0.40
Adapter 1.0x C-Mount
0.5x C-Mount, For 1/2" CCD, Focus Adjustable
0.35x C-Mount, For 1/3" CCD, Focus Adjustable
