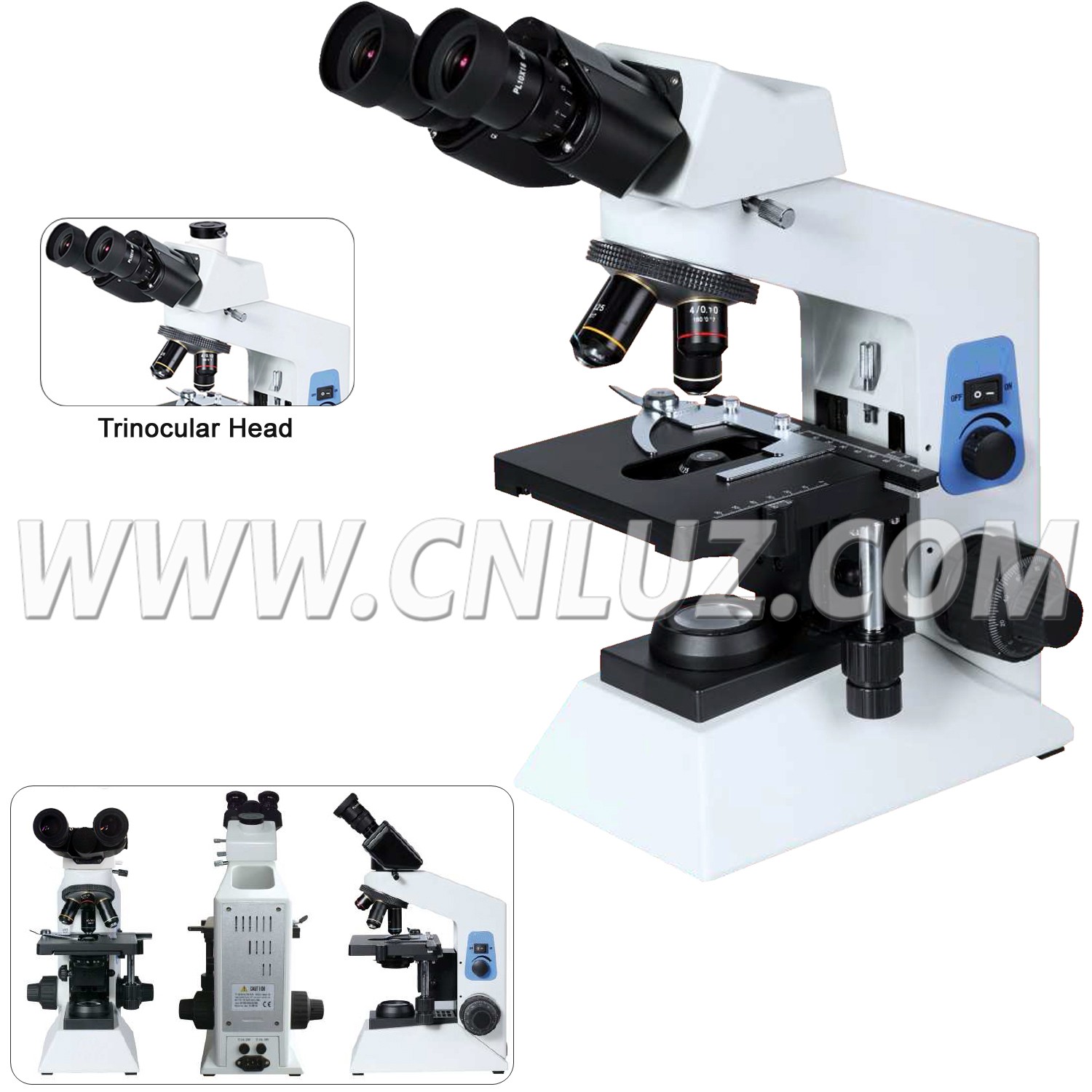

MBL.023044Binocular/Trinocular Compound Microscope, 40X~1000X
  • /usr/575/images/Products/Y/57518146.jpg

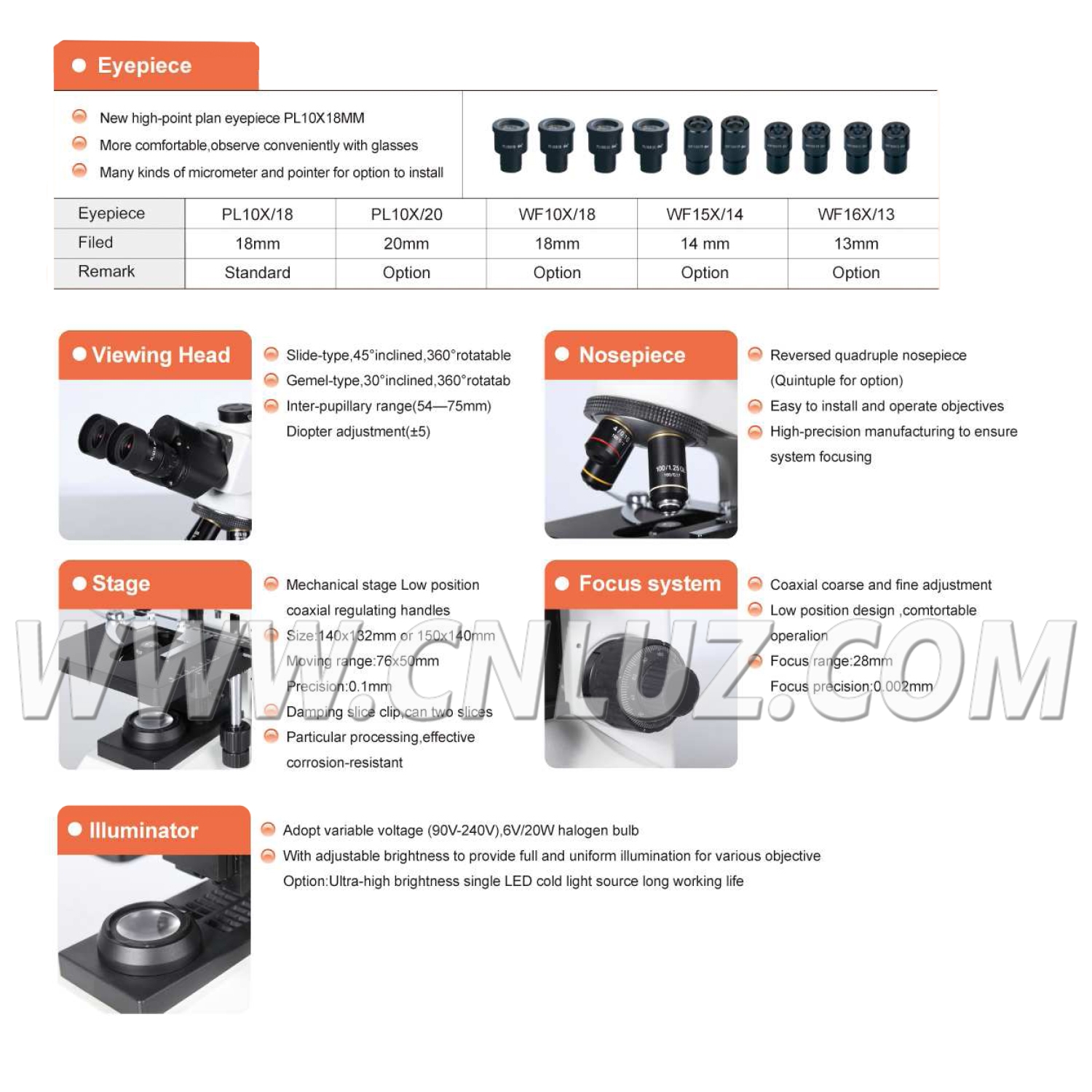

  • /usr/575/Picture/Y/11214.jpg
  •
  •
  • New chromatic correction optical system
  • Popularly and newly microscope body design
  • Higher level resolution ratio and image quality
  • Designed to be used in teaching applications,lab,demical, and sientific reserch



Specification
MBL.023044-2
MBL.023044-3
Head
Binocular, 30° Inclined, 360° Rotatable, Interpupillary Range 54~75mm
Trinocular, 30° Inclined, 360° Rotatable, Interpupillary Range 54~75mm
Eyepiece

PL10x/18mm, Wide Field, High Eyepoint

Objective
Achromatic Objective 4x/0.10
Achromatic Objective 10x/0.25
Achromatic Objective 40x/0.65
Achromatic Objective 100x/1.25 Oil
Nosepiece
Reversed Quadruple
Focusing
Coaxial Coarse & Fine Focusing, Low Position Design, Coarse Focusing Range 28mm, Fine Focusing Precision 0.002mm, With Tension Adjustment and Up Limit
Stage
Double Layer Mechanical Stage, 150*140mm, Moving Range 76*50mm, Precision 0.1mm, Double Slide Holer, Low Position Coaxial Regulating Handles
Condenser
Abbe N.A.1.25 Condenser, With Iris Diaphragm, With Filter Holder
Filter
Blue, Dia. 45mm
Light Source
Critical Illumination, 6V20W Halogen Lamp, Center Pre-adjusted
Power
90~240V Wide Range Voltage

Item
Optional Accessories
Eyepiece
PL10x/20mm, Wide Field, High Eyepoint
PL10x/18mm, Wide Field, High Eyepoint, With Pointer
PL10x/18mm, Wide Field, High Eyepoint, With Reseau
WF15x/13mm
WF20x/10mm
Objective

Plan Achromatic 4x/0.10
Plan Achromatic 10x/0.25
Plan Achromatic 20x/0.40
Plan Achromatic 40xs/0.65
Plan Achromatic 100xs/1.25
Infinity Plan Achromatic 4x/0.10
Infinity Plan Achromatic 10x/0.25
Infinity Plan Achromatic 20x/0.50
Infinity Plan Achromatic 40x/0.65
Infinity Plan Achromatic 100xs/1.25
Nosepiece
Reversed Quintuple Nosepiece
Filter
Yellow, Dia. 45mm
Green, Dia. 45mm
Netural, Dia. 45mm
Adapter C-Mount 1.0x, Focus Adjustable
C-Mount 0.5x , Focus Adjustable, For 1/2" CCD
C-Mount 0.35x, Focus Adjustable , For 1/3" CCD
Photo Adapter, With PK or MD Mount, With 3.2x Photo Eyepiece
Light Source Kohler Illumination, 6V20W Halogen Lamp, Center Pre-adjusted
Critical Illumination, 3W LED, Center Pre-adjusted
Kohler Illumination, 3W LED, Center Pre-adjusted
Condenser Abbe N.A.1.25 Condenser, With Iris Diaphragm, With Filter Holder, WIth Polarizing & Phase Contrast Socket,
For Critical Illumination
Abbe N.A.1.25 Condenser, With Iris Diaphragm, With Filter Holder, WIth Polarizing & Phase Contrast Socket,
For Kohler Illumination
Dark Field Dark Field Slide, For 4x~10x Objective
Dark Field Slide, For 20x~40x Objective
Polarizing

Polarizer

Analyzer
Plan
Phase Contrast
Centering Telescope Eyepiece, Dia. 23.2mm
Phase Contrast Slide, For 10x, 40x Objective
Phase Contrast Slide, For 20x, 100x Phase Contrast Objective
Plan Phase Contrast Objective 10x/0.25
Plan Phase Contrast Objective 20x/0.50
Plan Phase Contrast Objective 40x/0.65
Plan Phase Contrast Objective 100x/1.25
Infinity Plan Phase Contrast Centering Telescope Eyepiece, Dia. 23.2mm
Phase Contrast Slide, For 10x, 40x Infinity Objective
Phase Contrast Slide, For 20x, 100x Infinity Objective
Infinity Plan Phase Contrast Objective 10x/0.25
Infinity Plan Phase Contrast Objective 20x/0.50
Infinity Plan Phase Contrast Objective 40x/0.65
Infinity Plan Phase Contrast Objective 100x/1.25
