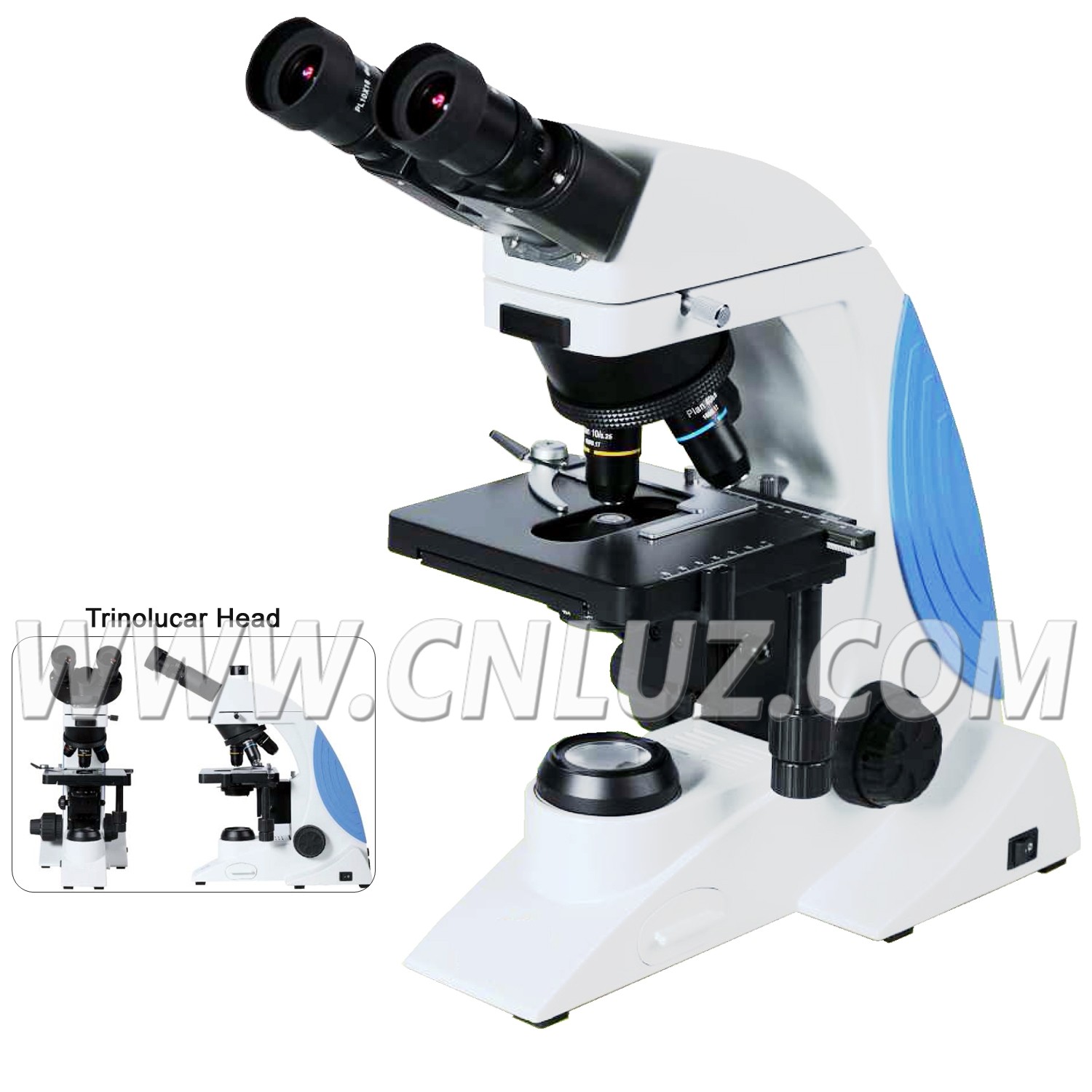

MBL.023045Binocular/Trinocular Compound Microscope, 40X~1000X
  • /usr/575/images/Products/Y/57518150.jpg
  • /usr/575/Picture/Y/11216.jpg
  •
  •
  • Finity&infinity color corrected optical system
  • Plan achromatic objective offers users super resolution ratio and image quality
  • Ergonomic and new generation design,provide the comfortable operating
  • Damping style double clips,for using conveniently and protect the slides
  • More wider focus adjustment’s travel range ,design to be used in a variety of needs
  • Self-adaption variable voltage ,extend the halogen lamp’s service life

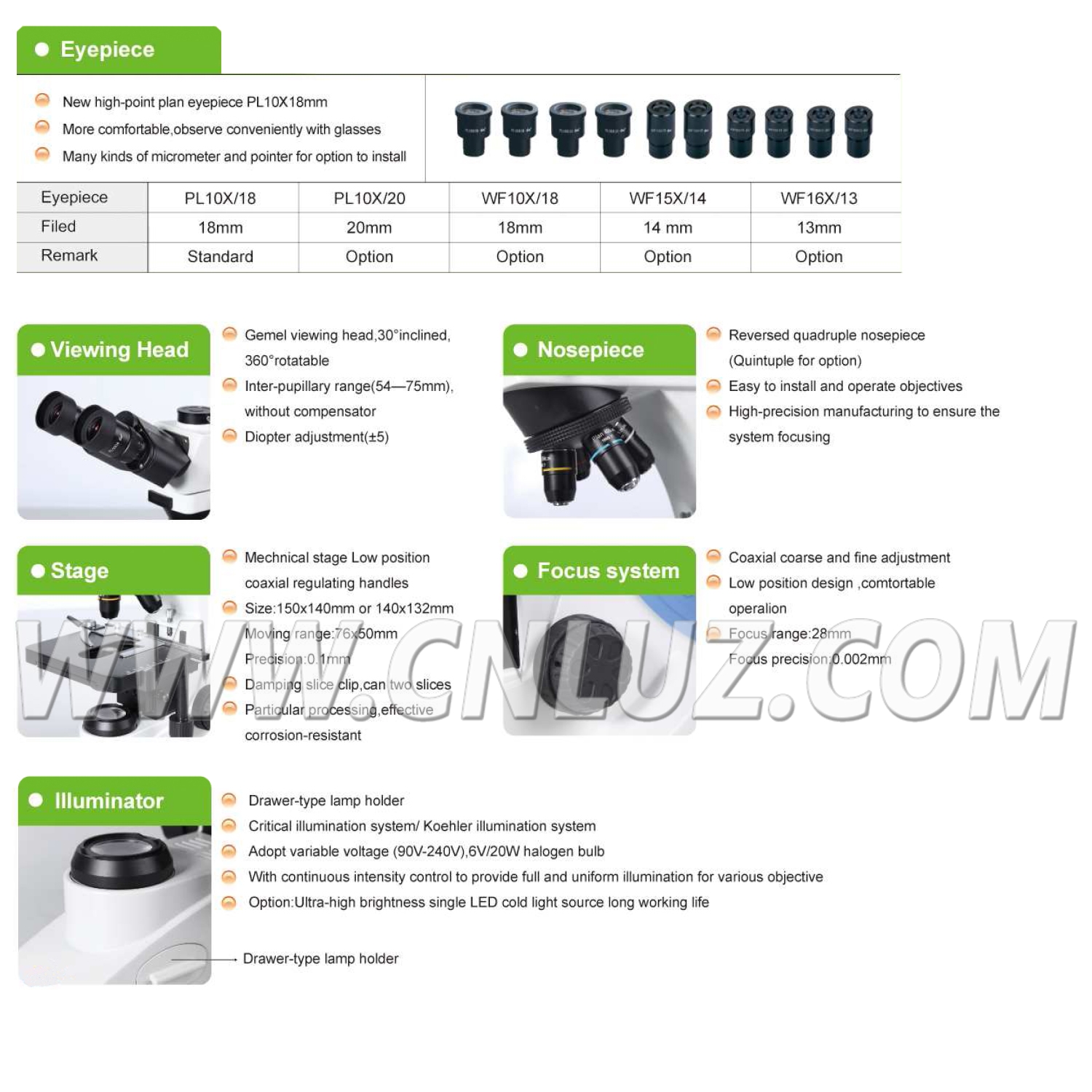

Specification
MBL.023045-2
MBL.023045-3
Head
Compensation Free Binocular Head, 30° Inclined,360° Rotatable, +/-5° Diopter Adjustable, Infinity System
Compensation Free Trinocular Head, 30° Inclined,360° Rotatable,+/-5° Diopter Adjustable, Infinity System
Eyepiece
Wide Field PL10x/20mm, High Eyepoint
Objective
Infinity Plan Achromatic Objective 4x/0.10
Infinity Plan Achromatic Objective 10x/0.25
Infinity Plan Achromatic Objective 40xs/0.65
Infinity Plan Achromatic Objective 100xs/1.25(Oil)
Nosepiece
Quadruple Nosepiece
Focusing
Low Position Coaxial Coarse & Fine Focusing. Coarse Focusing Range 28mm, Fine Focusing Scale 0.002mm, With Tension Adjustment, With Up Limit
Stage
Double Layer Mechanical Stage, 150*140mm, Mvoing Range 50*76mm, Precision 0.1mm, Double Slide Holder
Condenser
N.A.1.25 Abbe Condenser, Iris Diaphargm, With Filter Holder
Filter
Blue, Dia.45mm
Light Source
Critcal Illumination, 6V/20W Halogen Lamp
Power
90~240V Wide Range Voltage

Item
Optional Accessories
Eyepiece
WF10x/20mm with Reticle
WF10x/20mm with Pointer
Objective
Infinity Plan Achromatic 20xs/0.50
Infinity Phase Contrast
5 Holes Turret Phase Contrast Condenser, N.A. 1.25
Phase Contrast Slide, For 10x, 40x Infinity
Phase Contrast Slide, For 20x, 100x Infinity
Phase Contrast Infinity Plan Achromatic Objective 10x
Phase Contrast Infinity Plan Achromatic Objective 20x
Phase Contrast Infinity Plan Achromatic Objective 40x
Phase Contrast Infinity Plan Achromatic Objective 100x
Filter
Yellow, Dia.45mm
Green, Dia.45mm
Netural, Dia.45mm
Polarizing
Polarizer Dia..32mm, Put on Collector
Analyzer Slide, Insert To Hole On Nosepiece
Rotatable Working Stage
Nosepiece
Reversed Quintuple Nosepiece
Filter
Yellow, Dia. 45mm
Green, Dia. 45mm
Netural, Dia. 45mm
Adapter
0.5x C-Mount, For 1/2" CCD, Focus Adjustable
0.35x C-Mount, For 1/3" CCD, Focus Adjustable
Photo Adapter, With Photo Eyepiece 3.2x, With PK or MD Mount
Light Source
Kohler Illumination, 6V20W Halogen Lamp, Center Pre-adjusted
Critical Illumination, 3W LED, Center Pre-adjusted
Kohler Illumination, 3W LED, Center Pre-adjusted
Dark Field
Dark Field Board Slide, For 4x~10x Objective, Critical Illumination
Dark Field Board Slide, For 20x~40x Objective, Critical Illumination
Dark Field Board Slide, For 4x~40x Objective, Kohler Illumination
