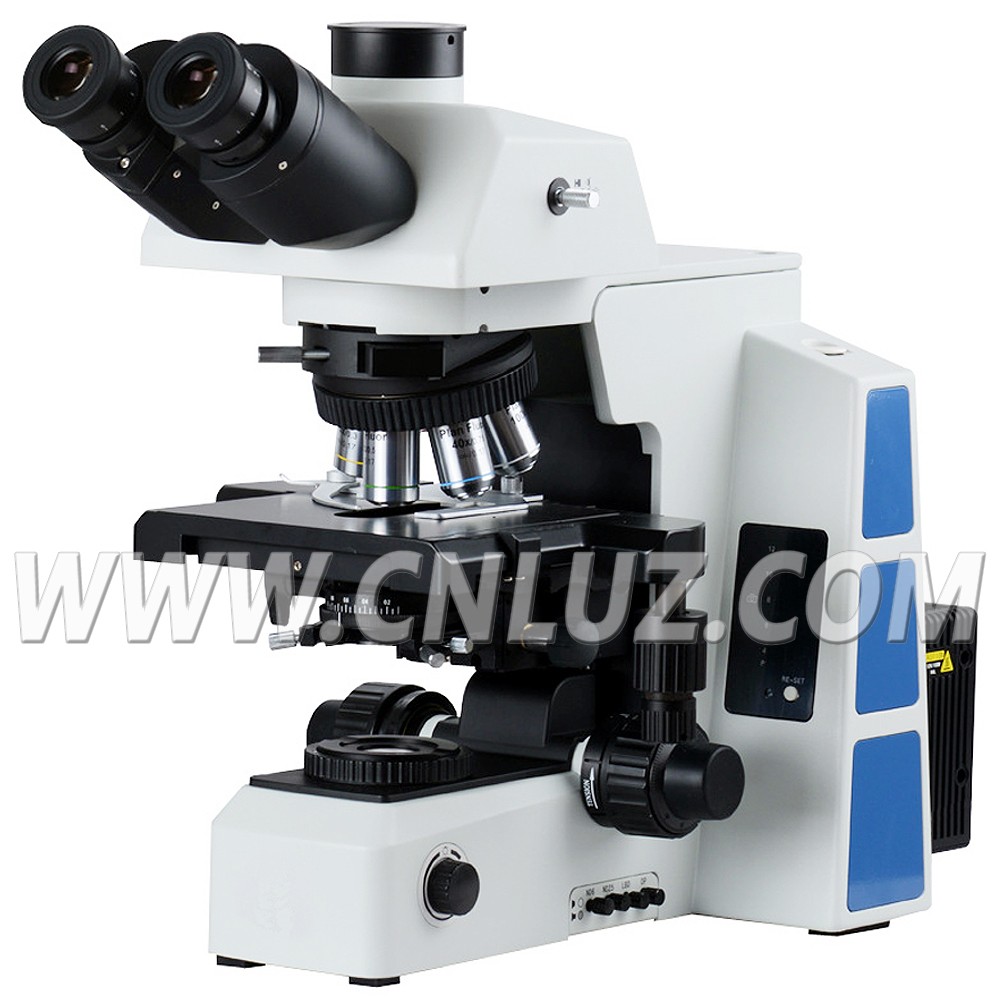

MBL.023046Trinocular Compound Microscope, APO, 40X~1000X
  • /usr/575/images/Products/Y/57518151.jpg
  •
  •
  •
  • With perfectly performed structure, high-definition optical image and simple operating system, the biological microscope realizes professional analysis, and meets all the needs of research in scientific, medical and other fields.
  • Large stage with adjustment in either hand.In order to correct the shortcoming of horizon guide rail, new stage is designed with double-way linear driving mechanism. This change protects the stage from overload at the end of both rails, improves the rigidity and performance of the stage.
  • The handle of the stage can be set at each side based on users’ preference. The X, Y biaxial adjustment are designed with low position for comfortable operation.
  • Two slices can be hold on the stage by using damping-type double clips, easy for comparative study. Moving range: 80mm X55mm; precision: 0.1mm
  • Processed with special craft, the surface of the stage is anti-corrosive and anti-friction. The platform with an arc transition design reduces the stress concentration and damage from impact.
  • Light barrier, which can effectively reduce the stray light, improves the image contrast in fluorescence observation.
  • Modular frame, improve the system compatibility
  • Coaxial adjustment adopts double-stage driving, with adjustable tension tightness and upper limit stop, coarse range is 25mm and fine precision is 1μm. Not only accurately focus but also precision measurement is available.
  • Viewing head is designed of multiple options for splitting ratio. with wide beam imaging system, 26.5mm super wide filed of view is available.
Specification
MBL.023046
Optical System
Infinity Optical System, Semi-Aprochromatic
Head

Trinocular Head, 30°inclined, Inverted Image,Interpupillary Distance 50~76mm,Three Split Ratio 0:100; 20:80; 100:0

Eyepiece
High-Eyepoint Plan Eyepeiece PL10X/25mm,Diopter Adjustable
Objective
Infinity Plan Semi-Aprochromatic Fluorescent Objective 4x/0.13, W.D.=18.5mm
Infinity Plan Semi-Aprochromatic Fluorescent Objective 10x/0.3, W.D.=10.6mm
Infinity Plan Semi-Aprochromatic Fluorescent Objective 20x/0.5, W.D.=2.33mm
Infinity Plan Semi-Aprochromatic Fluorescent Objective 40x/0.75, W.D.=0.6mm
Infinity Plan Semi-Aprochromatic Fluorescent Objective 100x/1.3, W.D.=0.21mm
Nosepiece
BF Sextuple Nosepiece, With Socket For DIC
Focusing
Coaxial Focus System With Upper Limited And Tension Adjustment, Coarse Adjustment Range:25mm, Fine Adjustment Precision: 0.001mm.
Stage
Double Layer Mechanical Stage, 187*166mm, Moving Range 80*55mm,Precision 0.1mm,Double Direction Transmission, Left And Right Position Handle For Option. Tension Of The Torque Adjustable.
Condenser
Swing-Out Achromatic Condenser, N.A.0.9
Light Source
12V100W Halogen Lamp, Center Adjusted,
Adopt Digital Dimming System, With LED Indicator, With The Fnction Of Light Set And Reset
Power
100-240V Built-in Wideband Voltage Transformer,

Item
Optional Accessories
Eyepiece
High-eyepoint Plan eyepeiece PL10X/25mm,diopter adjustable, with micrometer
High-eyepoint Plan eyepeiece PL10X/26.5mm,diopter adjustable
Head

Trinocular Head, 30°inclined, Erect Image,Interpupillary Distance 50~76mm,Three Split Ratio 0:100; 20:80; 100:0
Nosepiece

BF Septuple Nosepiece, With Socket For DIC

BF Quintuple Nosepiece, With Socket For DIC
Adapter C-Mount 0.5x, Focusable
C-Mount 0.65x
