MBL.038001Binocular/Trinocular Compound Microscope, 40X~1000X, Infinite Semi-Plan
  • /usr/575/images/Products/Y/57518431.jpg
  • /usr/575/Picture/Y/11432.jpg
  •
  •
  • Biological microscope ,40X~1000X

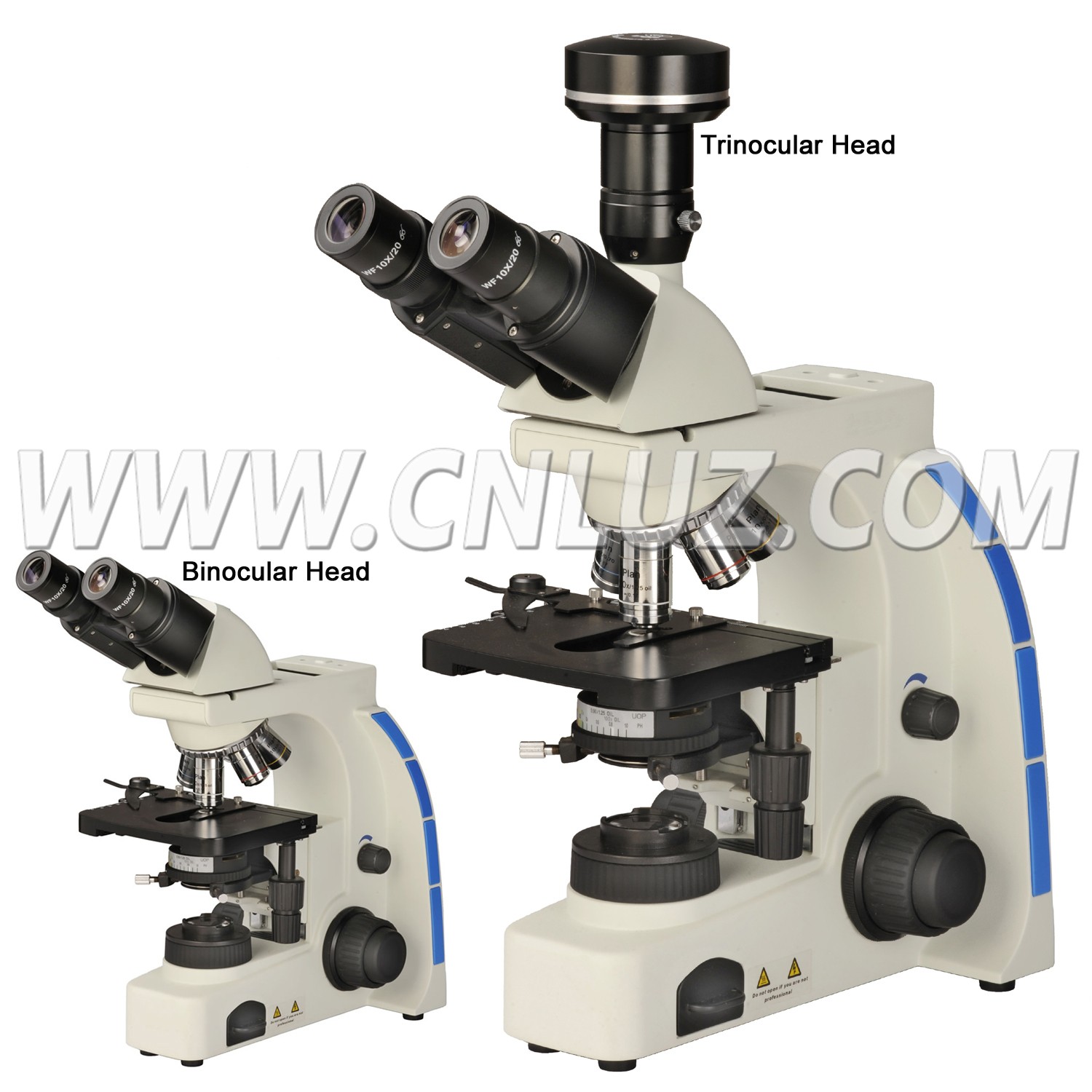

  • Binocular head or trinocular head
  • Infinite Semi-Plan Achromatic Objective,4X/10X/40X/100X

Specification
MLB.038001-B
MLB.038001-T
Head
Seidentopf Binocular Head, Inclined at 30°, 360° rotatable; Interpupillary Distance 52-75mm, ±5diopter adjustment
Seidentopf Binocular Head, Inclined at 30°, 360° rotatable; Interpupillary Distance 52-75mm, ±5diopter adjustment with C-mount adapter
Eyepiece

Wide Field Eyepiece WF10x/20mm

Magnification
40x~1000x

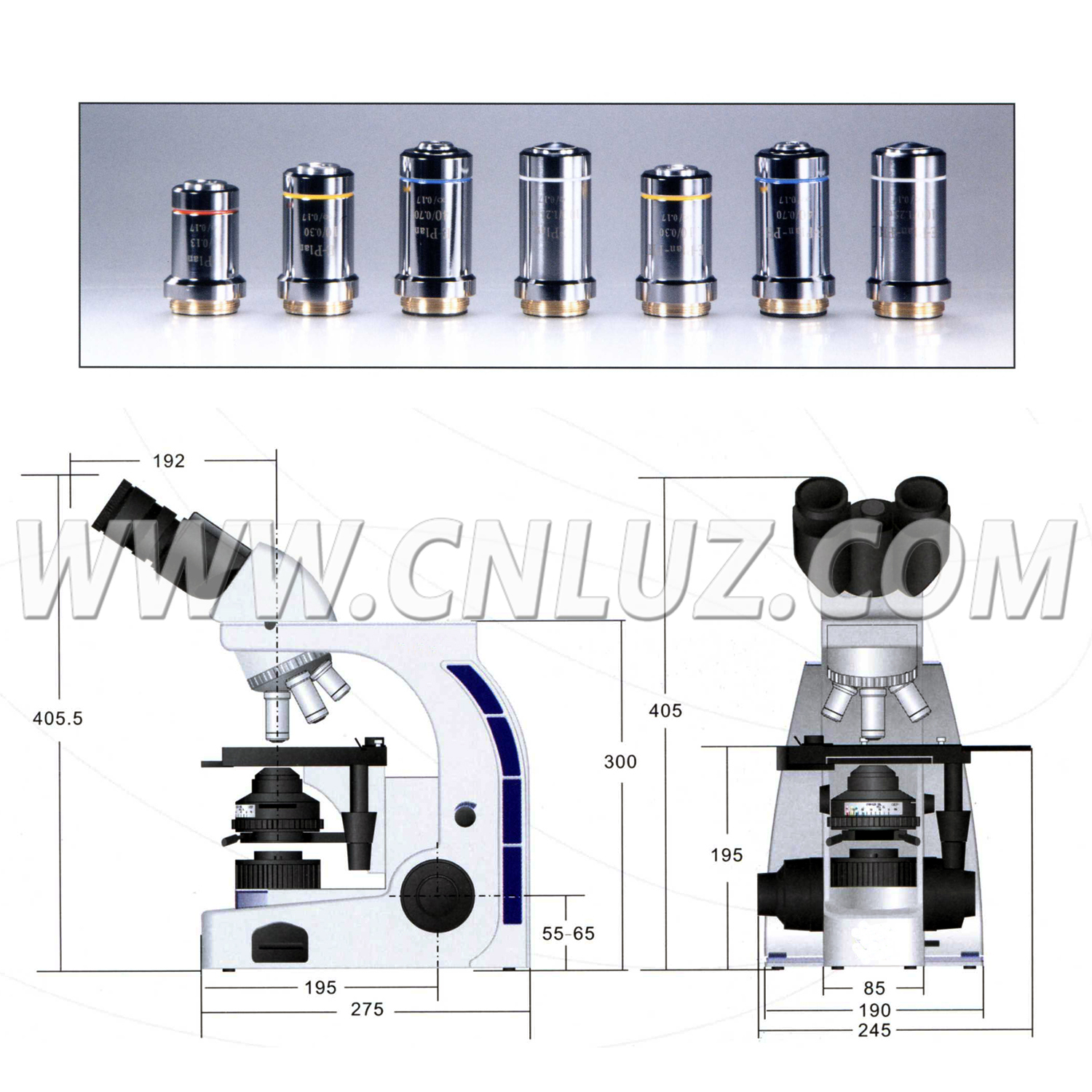

Objective
Infinite Semi-Plan Achromatic Objective 4x
Infinite Semi-Plan Achromatic Objective 10x
Infinite Semi-Plan Achromatic Objective 40x
Infinite Semi-Plan Achromatic Objective 100x(Spring,Oil)
Nosepiece

Quadruple, reversed type with positive click stops

Focusing

Low positioned, coaxial coarse&finefocusing system with an adjustable tension control and upper limit stopcoarse knob coarse 14mm/rot,fine 0.1mm/rot, minimum reading 1μm on left-side fine knob, moving range 20mm

Stage

Double layer mechanical stage, size 156x138mm, moving range 76x54mm low position and right hand controls,X-Y coaxial control knob, two slides holder

Condenser

Abbe N.A.1.25with iris diaphragm and with socket for phase contrast / dark field slider, centering adjustable,height adjustable, color-coded diaphragm scale marking corresponded with the objectives of different power.

Filter
Blue filter Φ 38
Illumination
6V 20W halogen lamp, brightness adjustable, Kohler type with field diaphragm
Power Supply 100-240V wide power range

Item
Optional Accessories
Head Binocular head,30° inclined, 360° rotatable, interpupillary distance 48-75m, ±5 diopter adjustment
Trinocular head,30° inclined, 360° rotatable, interpupillary distance 48-75mm, ±5 diopter adjustment
Trinocular head,30° inclined, 360° rotatable, interpupillary distance 48-75mm, ±5 diopter adjustment,light split 100:0 0:100
Objective Infinity Plan Achromatic 4X/0.10
Infinity Plan Achromatic 10X/0.25
Infinity Plan Achromatic 40X/0.65 (Spring)
InfinityPlan Achromatic 100X/1.25 (Spring,Oil)
Eyepiece

WF10x/22mm, plan, high eyepoint up to 21mm

WF16x/13mm, plan, high eyepoint up to 21mm

WF10x/20mm plan eyepiece with pointer

WF10x/22mm plan eyepiece with pointer

WF10x/20mm plan reticule eyepiece

Nosepiece

Upgrade to Quintuple, reversed type with positive click stops

Stage

Upgrade to mechanical stage 185x177mm platform, moving range 75x50mm, low position,right or left hand controls, X-Y coaxial control knob,two slides holder

Condenser Swing out condenser
Dark Field Dark Field Objective, Infinity Plan 100X,For Immersion Dark Field Observation
Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm
For Immersion Dark Field Observation
Dark Field Condenser, Dry, N.A.0.7~0.9
Dark Field Condenser,Immersion, N.A.1.25~1.36
Light Source

3W LED bulb

3W LED electrical set (brightness adjustable)

Upgrade to LED 3W set including rechargable battery (brightness adjustable)

Upgrade to 6V/30W halogen lamp (brightness adjustable)

6V20W Halogen bulb (Osram)
6V30W Halogen bulb
6V30W Halogen bulb (Osram)
Kohler without field diaphragm
Filter

Green Φ38mm

Yellow Φ38mm

Frosted Φ38mm

Polarizing Attachment

Analyzer

Polarizer

Dark Field Attachment

Dark field condenser (Dry)

Dark field condenser (Immersion)

Dark field slider

Phase Contrast Attachment Centering telescope
Turret phase contrast condenser N.A. 1.25
Turret phase contrast condenser with dark field

Phase contrast slider for infinity phase contrast plan achromatic objective 10x/ 20x/ 40x/ 60x/ 100x

Infinity phase contrast plan achromatic objective, positive 10x/ 20x/ 40x/ 60x/ 100x
Infinity phase contrast plan achromatic objective, negative 10x/ 20x/ 40x/ 60x/ 100x
Flourescent Attachment 100W DC mercury lamp house
Power supply unit for 100W DC mercury lamp
I-Grade excitation filter (superior grade) UV / V / B / G
C-Grade excitation filter (common grade) UV / V / B / G
Epi-fluorescence illumination
UV shield
100W DC mercury bulb
100W DC mercury bulb (Osram)
Adapter 1.0x C-Mount
0.5x C-Mount
0.25x C-Mount
for digital eyepiece (to be used on trinocular tube)
Digital camera adapter, (Need to know camera model number)
