MBL.038003Binocular/Trinocular Compound Microscope, 40X~1000X
  • /usr/575/images/Products/Y/57518780.jpg
  • /usr/575/Picture/Y/11532.jpg
  •
  •
  • It is best choice for your routine work inmedicine, clinical laboratories, pathology and biology.
  • UCIS universal infinity independent achromatic optical system, parfocal distance 45mm
  • Flexible upgrade path for phase contrast, dark field, and polarization
  • Surface at lower temperature even after long time work
  • Robust and vibration resistant
Specification
MBL.038003-B
MBL.038003-T
Head

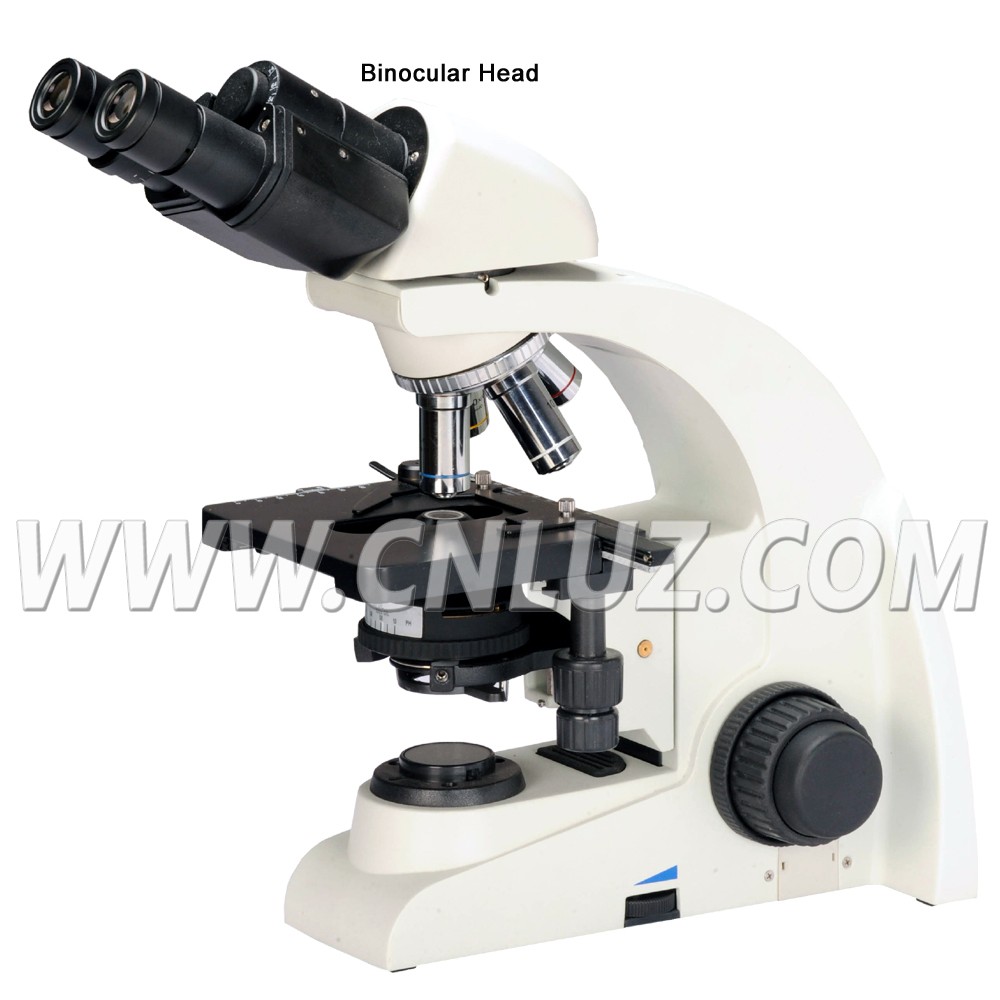

Binocular Head,30° Inclined, 360° Rotatable, Interpupillary Distance 52-75mm, ±5 Diopter Adjustment

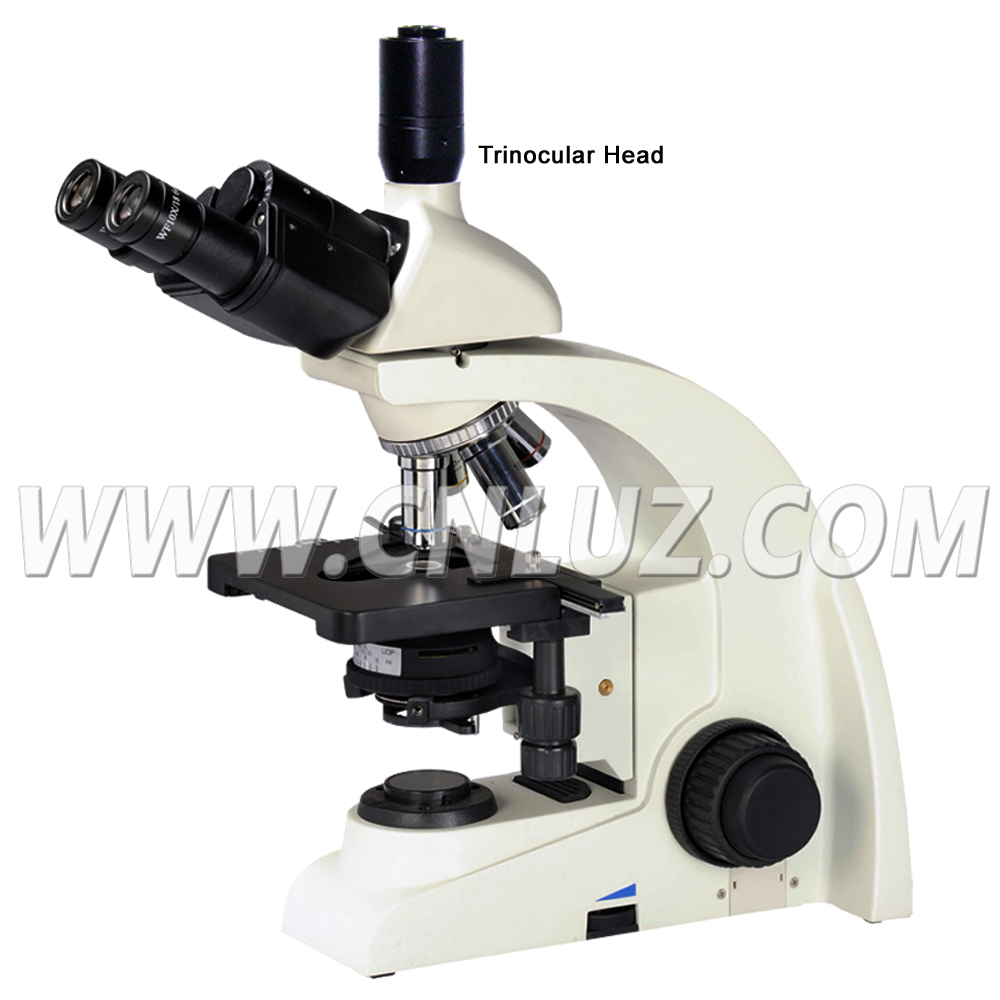

Trinocular Head,30° Inclined, 360° Rotatable, Interpupillary Distance 52-75mm, ±5 Diopter Adjustment
Eyepiece
WF10x/18mm, High Eye-point Up To 21mm
Objective
Infinity Achromatic Objective 4x/0.13
Infinity Achromatic Objective 10x/0.30
Infinity Achromatic Objective 40x/0.70 (Spring),
Infinity Achromatic Objective 100x/1.25 (Spring, Oil)
Nosepiece

Reversed Positioned Quadruple Nosepiece With Click Stops

Focusing

Low Positioned, Coaxial Coarse & Fine Focusing System With Tension Adjustment And Up-Limited, Coarse Knob Coarse 14mm/Rot, Fine 0.1mm/Rot, Minimum Reading 1μm On Left-Side Fine Knob, Moving Range 20mm

Stage

Double Layer Mechanical, Size 156x138mm, Moving Range 76x54mm.Low Position, Right Hand Control, X-Y Coaxial Control Knob, Two Slides Holder

Condenser

Abbe N.A.1.25 With Iris Diaphragm And With Socket For Phase Contrast / Dark Field Slider, Centering Adjustable, Color-Coded Diaphragm Scale Marking Corresponded With The Objectives Of Different Power

Filter Blue Filter Dia. 38mm, (Not Available For LED Illumination)
Light Source 6V 20W Halogen Lamp, Kohler Type With Field Diaphragm
Power Supply 0-240V Wide Power Range,CE Certified

Item
Optional Accessories
Head Binocular Head,30° Inclined, 360°Rotatable,Interpupillary Distance 48-75mm,±5 Diopter Adjustment
Trinocular Head,30° Inclined, 360° Rotatable, Interpupillary Distance 48-75mm, ±5 Diopter Adjustment
Eyepiece
WF10x/20mm, High Eye-point Up To 21mm
WF16x/13mm, High Eye-point Up To 21mm
WF10x/18mm Pointer Eyepiece
WF10x/20mm Pointer Eyepiece
WF10x/18mm Reticule Eyepiece
WF10x/20mm Reticule Eyepiece
Objective Infinity Plan Achromatic 4X/0.13 ∞/0.17,WD12.3
Infinity Plan Achromatic10X/0.30 ∞/0.17,WD4.00
Infinity Plan Achromatic20X/0.45 ∞/0.17,WD1.24
Infinity Plan Achromatic40X/0.70 ∞/0.17,WD0.29 (Spring)
Infinity Plan Achromatic60X/0.80 ∞/0.17,WD0.40 (Spring)
Infinity Plan Achromatic 100X/1.25 ∞/0.17,WD0.09 (Spring,Oil)
Nosepiece Upgrade To Quintuple Inward Nosepiece
Polarization Set Analyzer
Polarizer
Filter Green Filter Φ32mm
Yellow Filter Φ32mm
Frosted Glass Φ32mm
Dark Field Attachment Dark Field Condenser (Dry)
Dark Field Condenser (Immersion)
Dark Field Sliders For Objective 4x,10x,40x,100x
Phase Contrast Attachment Centering Telescope
Phase Contrast Slider, For Infinity Phase Contrast Objective
Infinity Phase Contrast Objective,Positive
Infinity Phase Contrast Objective,Negative
Adapter 1.0x C-Mount
0.5x C-Mount
0.25x C-Mount
Digital Camera Adapter, (Need To Know Camera Model Number)
