MBL.017017Binocular/Trinocular Compound Microscope, 40X~1000X
  • /usr/575/images/Products/Y/57519051.jpg
  • /usr/575/Picture/Y/11552.jpg
  • /usr/575/Picture/Y/11652.jpg
  •
  • New-designed,excellent images
  • Configured with Wide Field eyepiece.Each eyepiece allows diopter adjustment to suit different users
  • The overall design of main body is Ergonomic design,it makes user more comfortable
  • LED lights,has long using life
Specification

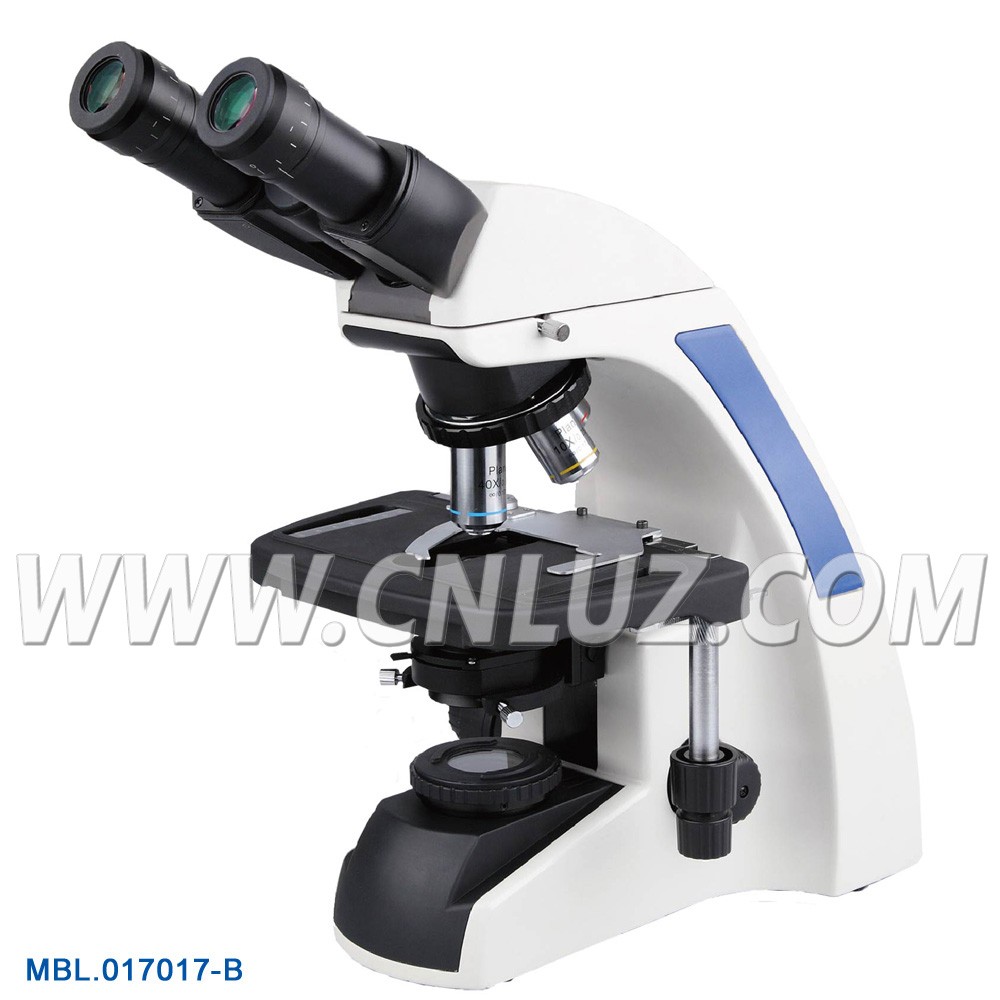

MBL.017017-B

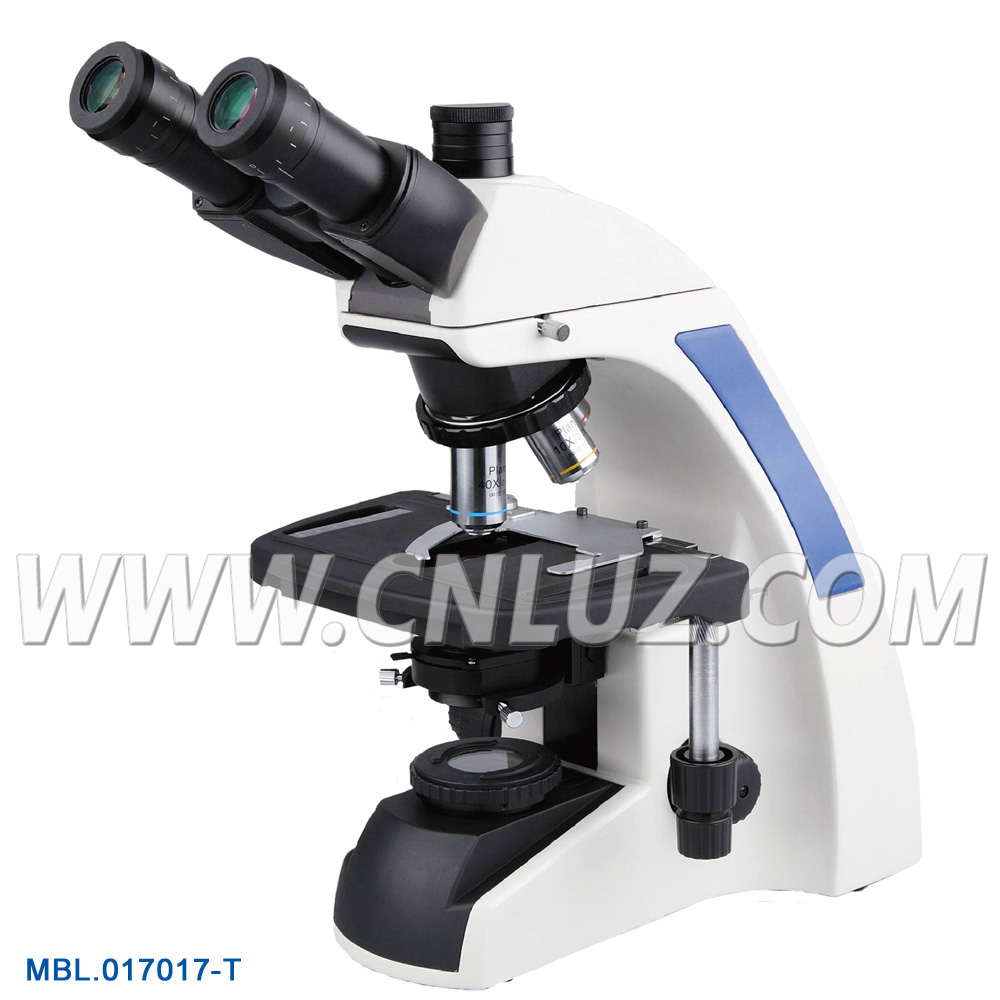

MBL.017017-T
Head
Binocular, Inclined at 30 degree, Interpupillary 48-75mm, Both Eyepiece Tube Diopter Adjustable Trinocular, Inclined at 30 degree, Interpupillary 48-75mm, Both Eyepiece Tube Diopter Adjustable
Eyepiece
WF10x
Objective
Achromatic 4X
Achromatic 10X
Achromatic 40X
Achromatic 100X
Nosepiece
Backward Quadruple Nosepiece
Focusing
Coaxial Coarse and Fine Adjustment, Fine Division0.002mm, Coarse Stroke 37.7mm/Rotation, Moving Range 24mm
Stage
Large Size Double Layer Mechanical Stage 142x132mm , Graphite Surface, Moving Range75mmx50mm
Condenser
Abbe Condensor NA1.25
Illumination
3W LED
Adapter   C-Mount0.5x

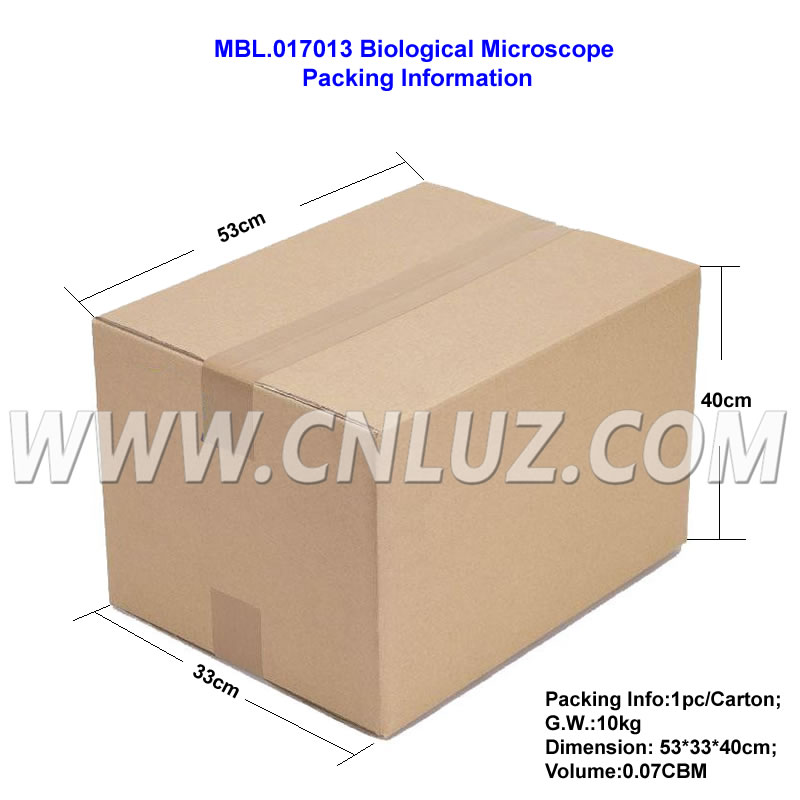

Packing Info. 1pc/carton; G.W:10kg; Carton Dimension: 53*33*40cm; Volume: 0,07CBM

Item
Optional Accessories
Eyepiece

WF20X/F.N.12mm
WF16X/F.N.15mm
Nosepiece
Backward Quintuple Nosepiece
Adapter
C-Mount 0.5x
Dark Field Condensor
Dark Field Condenser, Dry
Dark Field Condenser, Immersion, N.A.1.25~1.36
