MBL.017013Compound Microscope, Infinity Optical System, 40X~1000X
  • /usr/575/images/Products/Y/57519069.jpg
  • /usr/575/Picture/Y/11554.jpg
  • /usr/575/Picture/Y/11555.jpg
  • /usr/575/Picture/Y/11651.jpg

Infinite optical system

  • New-designed high contrast full plan objectives,indicate excellent images
  • Configured with Wide Field eyepiece.Each eyepiece allows diopter adjustment to suit different users
  • The overall design of main body is Ergonomic design,it makes user more comfortable
  • Standard Kohler illumination,using LED lights,has long using life
Specification
MBL.017013-B
MBL.017013-T
Optical System
Infinity Optical System
Head

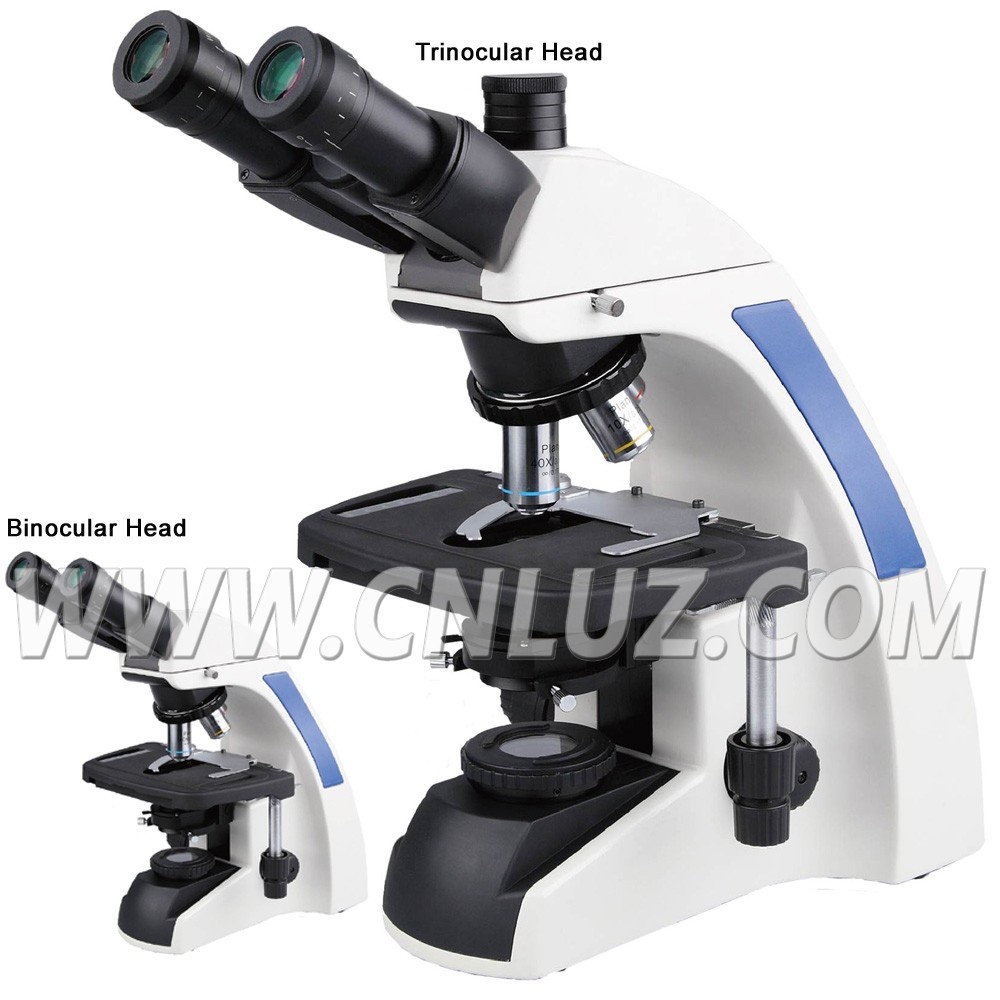

Binocular, Inclined at 30o, Interpupillary 48-75mm, Both Eyepiece Tube Diopter Adjustable Trinocular, Inclined at 30o, Interpupillary 48-75mm, Both Eyepiece Tube Diopter Adjustable
Eyepiece
WF10x/22mm
Objective
Infinite Plan High Contrast Chromatic-free 4X
Infinite Plan High Contrast Chromatic-free 10X
Infinite Plan High Contrast Chromatic-free 40X
Infinite Plan High Contrast Chromatic-free 100X
Nosepiece
Backward Quadruple Nosepiece
Focusing
Coaxial Coarse and Fine Adjustment, Fine Division0.002mm, Coarse Stroke 37.7mm/Rotation, Moving Range 24mm
Stage
Large Size Double Layer Mechanical Stage 216x150mm , Graphite Surface, Moving Range75mmx55mm
Condenser
Abbe Condensor NA1.25
Illumination
Kohler Illumination, 3W LED
Adapter   C-Mount 0.5x
Packing Info. 1pc/carton; G.W:10kg; Carton Dimension: 53*33*40cm; Volume: 0,07CBM

Item
Optional Accessories
Eyepiece

WF20X/F.N.12mm
WF16X/F.N.15mm
Nosepiece
Backward Quintuple Nosepiece
Adapter
C-Mount 0.5x
Dark Field Condensor
Dark Field Condenser, Dry
Dark Field Condenser, Immersion, N.A.1.25~1.36
