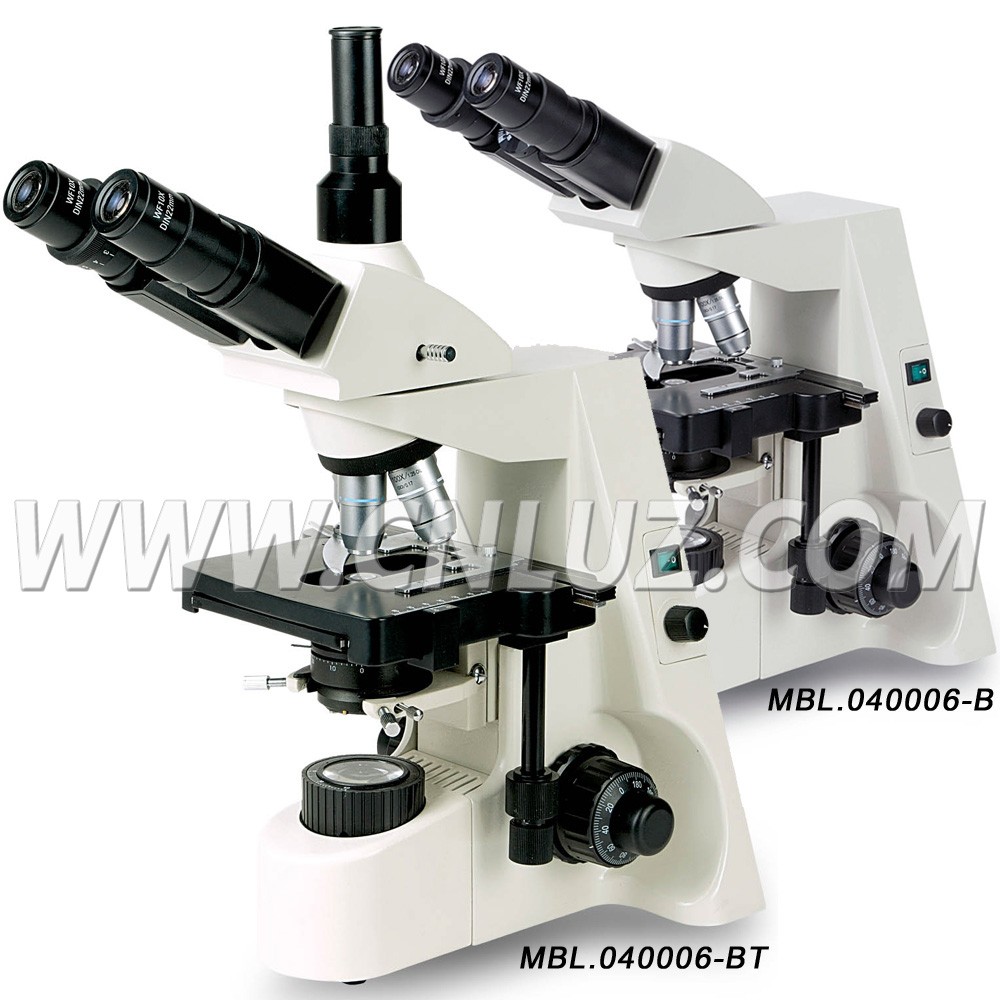

MBL.040006Binocular/Trinocular Compound Microscope, 40X~1000X
  • /usr/575/images/Products/Y/57519485.jpg
  • /usr/575/Picture/Y/11575.jpg
  •
  •

It is widely used, from daily work to scientific research, in Laboratory, Hospitals and Colleges. It also becomes the first choice of individual, Schools, and Scientific research organization.

  • Wide-field Eyepiece, high light illumination and superior optical parts make the image clear, sharp and bright.
  • Backward nosepiece with superior objectives makes the best viewing effect and more space for the operator.
  • Wide mechanical stage with 2-Microslide specimen clamp provides more convenience for the observer.
  • High precision focusing adjustment system and humanized configuration design provide operator more comfortable.
  • Frontal undrawing type Light collector framework, makes the user change the bulb more quickly and easily.



Major differences between each models

  • MBL.040006-B:  Binocular, Achromatic Objectives
  • MBL.040006-BT:Trinocular, Achromatic Objectives
  • MBL.040006-BI:   Binocular,Infinity Objectives
  • MBL.040006-BIT: Trinocular, Infinity Objectives
Specification
MBL.040006-B
MBL.040006-BT
Head
Compensation Free Binocular,30°inclined,55mm-75mm
Compensation FreeTrinocular,30°inclined,55mm-75mm
Eyepiece
WF10X /18mm
Objective
Achromatic Objective 4x
Achromatic Objective 10x
Achromatic Objective 40x, Spring
Achromatic Objective 100x, Spring,Oil
Nosepiece
Quadruple Revolving Nosepiece
Focusing
Coaxial Coarse and Fine Focusing with Rack and Pinion Mechanism; Fine Focusing Scale Value 0.002mm
Stage
Double Layer Mechanical Stage,Size180mmx150mm,Moving Range:75mmx50mm
Condenser
N.A1.25 Abbe condenser with iris diaphragm & filter
Light Source
Halogen Bulb 6V/20W,AC85V-230V, Adjustble Brightness
Illumination
High Brightness Kohler Illumination

Specification
MBL.040006-BI
MBL.040006-BIT
Head
Compensation Free Binocular,30°inclined,55mm-75mm
Compensation FreeTrinocular,30°inclined,55mm-75mm
Eyepiece
WF10X /22mm
Objective
Infinity Objective 4x
Infinity Objective 10x
Infinity Objective 40x, Spring
Infinity Objective 100x, Spring,Oil
Nosepiece
Quadruple Revolving Nosepiece
Focusing
Coaxial Coarse and Fine Focusing with Rack and Pinion Mechanism; Fine Focusing Scale Value 0.002mm
Stage
Double Layer Mechanical Stage,Size180mmx150mm,Moving Range:75mmx50mm
Condenser
N.A1.25 Abbe condenser with iris diaphragm & filter
Light Source
Halogen Bulb 6V/20W,AC85V-230V, Adjustble Brightness
Illumination
High Brightness Kohler Illumination

Item
Optional Accessories
Eyepiece

WF20X
WF16X
P16X
Objective

Achromatic objective 20x
Achromatic objective 60x, Spring
Semi-plan Objective 4X
Semi-plan Objective 10X
Semi-plan Objective 20X
Semi-plan Objective 40X(S)
Semi-plan Objective 60X(S)
Semi-plan Objective 100X(S)
Plan Achromatic Objective 4x
Plan Achromatic Objective 10x
Plan Achromatic Objective 20x
Plan Achromatic Objective 40x (S)
Plan Achromatic Objective 60x (S)
Plan Achromatic Objective 100x (S)
Dark Field
Darkfield
Condenser
Swing ABBE N.A.1.25Condenser with Iris Diaphragm & Filter
Photo Adapter
Photo Adapter
CCD Adapter
0.5x
0.57x
0.75x
