MBL.040014Binocular/Trinocular/Monocular Compound Microscope, 40X1000X
  • /usr/575/images/Products/Y/57519504.jpg
  • /usr/575/Picture/Y/11581.jpg
  • /usr/575/Picture/Y/11582.jpg
  •

This series microscope is widely used in Biology. Histology, Pathology, Medicament, chemistry research and Clinical examination. It can also be used for education in Colleges and Schools.



Major differences between each models

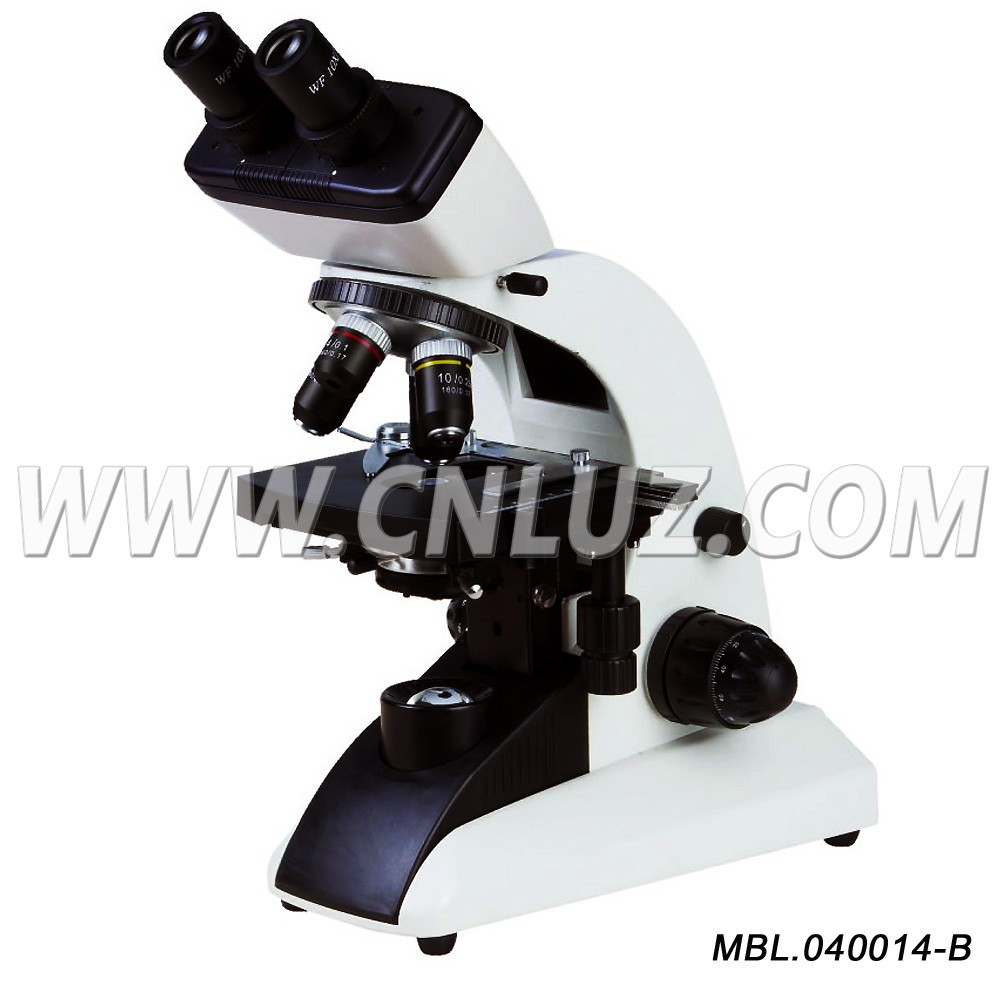

  • MBL.040014-B:  Binocular

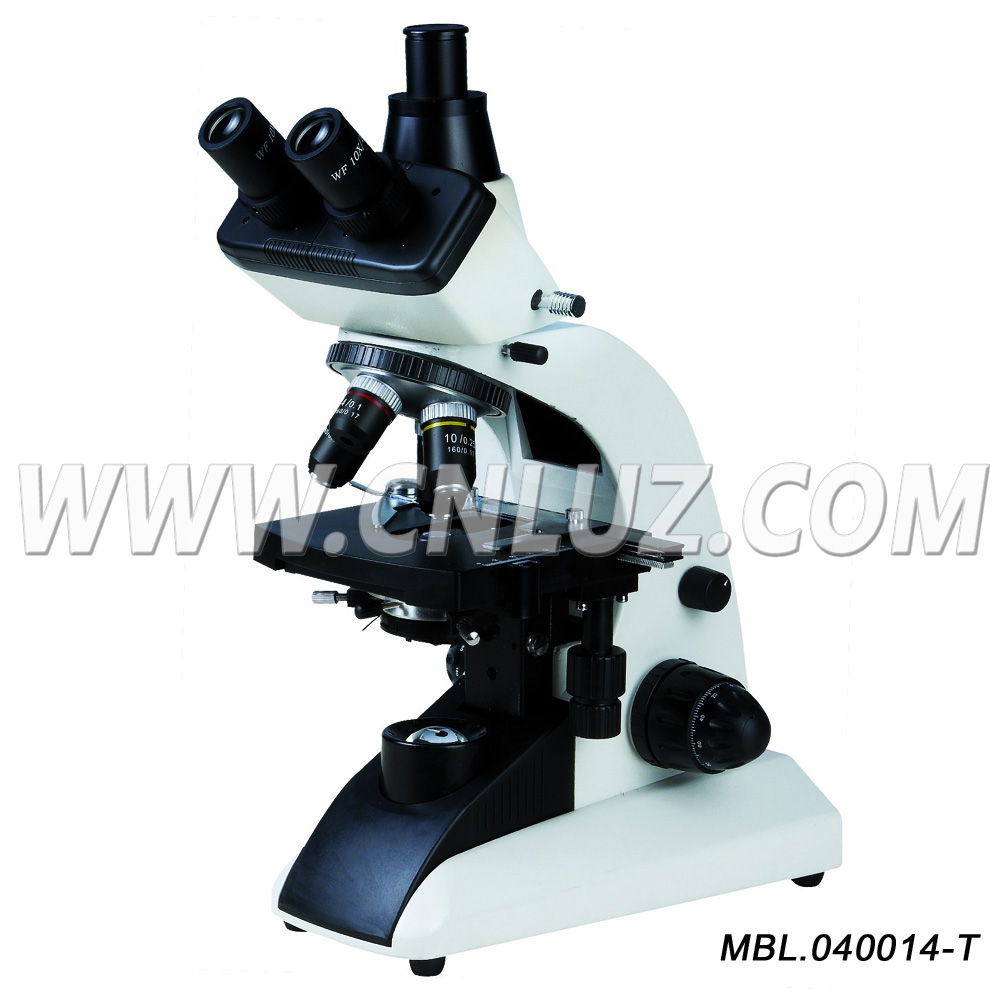

  • MBL.040014-T:    Trinocular

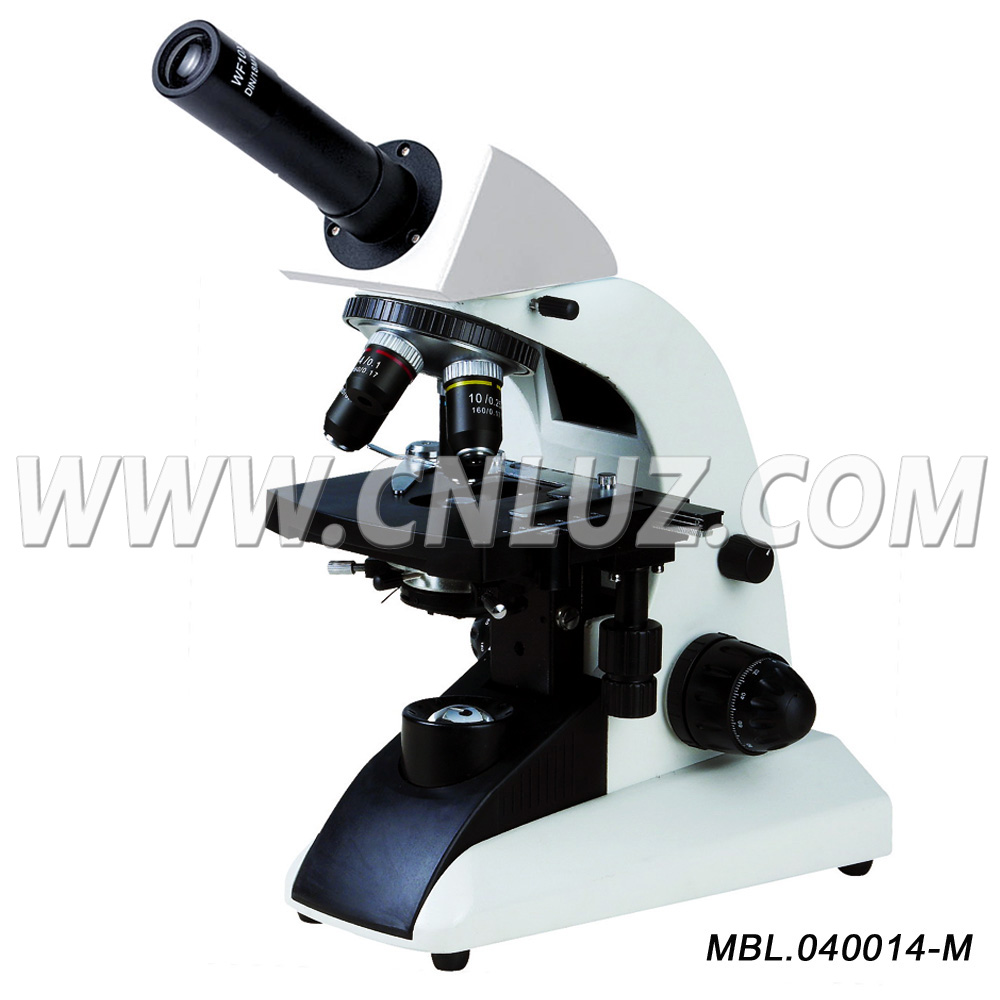

  • MBL.040014-M:   Monocular



Specification
MBL.040014-B
MBL.040014-T
MBL.040014-M
Head
 Sliding Binocular,
45°inclined,55mm-75mm		 Sliding Trinocular,
45°inclined,55mm-75mm		 Monocular Head,
45° inclined,360° Rotatable
Eyepiece
WF10x/18mm
Objective
Achromatic Objective 4x
Achromatic Objective 10x
Achromatic Objective 40x, SPring
Achromatic Objective 100x, Spring, Oil
Nosepiece
Quadruple Revolving Nosepiece
Focusing
Coaxial Coarse and Fine Focusing Scale Value 0.002mm
Stage
Double Layer Mechanical Stage,Size140x132mm,Moving Range:70mmx30mm
Condenser
Abbe Condenser N.A.=1.25, with Iris Diaphragm and Filter
Light Source
 Halogen Bulb6V/20W or 6V/15W,AC 220V/110V, Adjustble Brightness

Item
Optional Accessories
Eyepiece
 WF16X
WF20X
P16X
Objective


 Achromatic objective 20x
Achromatic objective 60x, Spring
Semi-Plan Achromatic Objective 4x
Semi-Plan Achromatic Objective 10x
Semi-Plan Achromatic Objective 20x
Semi-Plan Achromatic Objective 40x (S)
Semi-Plan Achromatic Objective 60x (S)
Semi-Plan Achromatic Objective 100x (S)
Plan Objective 4X
Plan Objective 10X
Plan Objective 20X
Plan Objective 40X(S)
Plan Objective 60X(S)
Plan Objective 100X(S)
Dark Field
Darkfield
Photo Adapter Photo Adapter
CCD Adapter 0.5x
0.57x
0.75x
