MBL.040018Compound Microscope, Infinity Plan, 40X~1000X
  • /usr/575/images/Products/Y/57519508.jpg
  • /usr/575/Picture/Y/11587.jpg
  •
  •
  • It is diversification brings you enter into an epoch not only the performance but also the application. The module design can meet your needs on all normal experiment and scientific research .
  • Its humanized configuration design,reasonable control device and layout of every operation knob can keep your eyes, neck, shoulders, waist, arms and wrist against tiredness. You can be released from heavy word due to the comfortable operation.



Specification

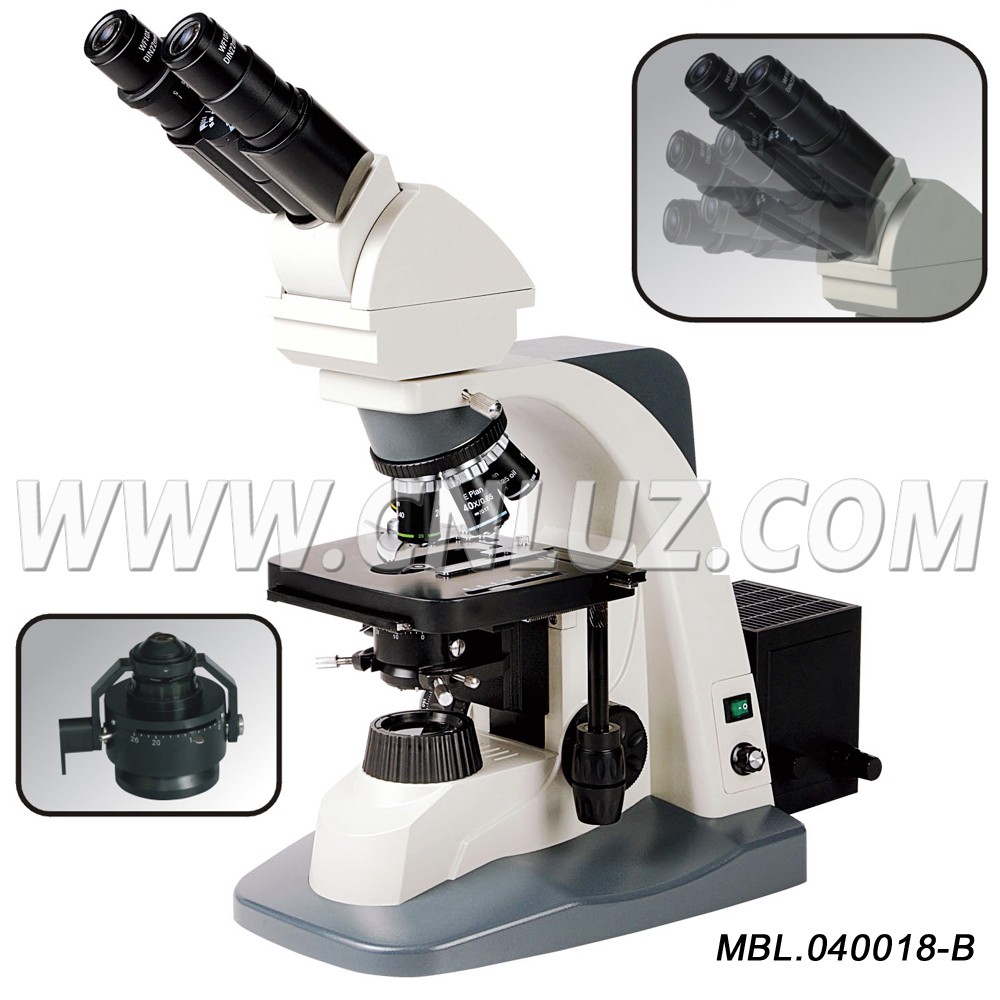

MBL.040018-B

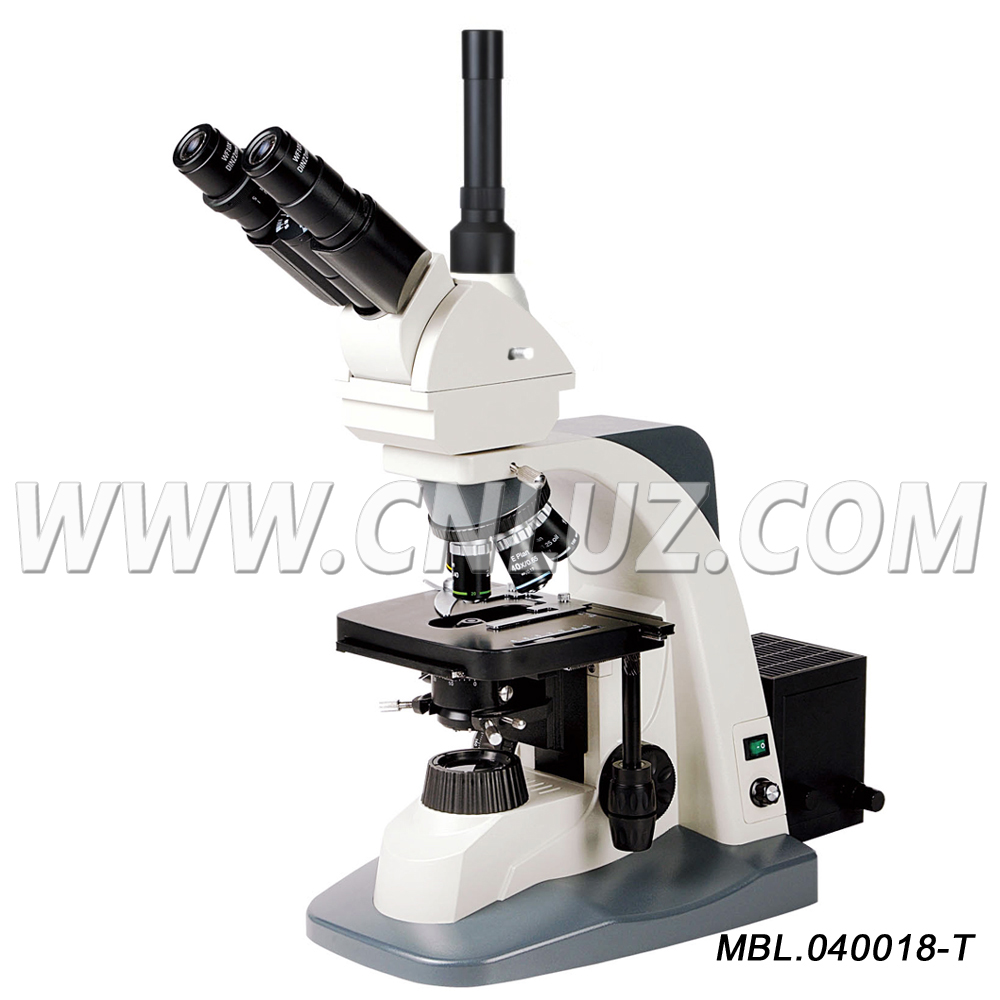

MBL.040018-T
Head
Compensation Free Binocular,0°-40° inclined adjustment, Interpupillary Distance 55mm-75mm
Compensation FreeTrinocular,0°-40° inclined adjustment, Interpupillary Distance 55mm-75mm
Eyepiece
WF10X/22mm
Objective
Infinity Plan 4X
Infinity Plan 10X
Infinity Plan 40X, Spring
Infinity Plan 100X/Oil, Spring
Nosepiece
Quintuple Revolving Nosepiece
Focusing
Coaxial Coarse and Fine Focusing with Rack and Pinion Mechanism; Fine Focusing Scale Value 0.002mm
Stage
Double Layer Mechanical,Size 180mmX160mm,Moving Range75mmx50mm
Collector Kohler Illumination
Condenser
Swing N.A.1.25 Abbe Condenser with Iris Diaphragm Filter
Light Source
Halogen Bulb12V/30W,12V/50W or 12V100W,AC 85-230V, Adjustble Brightness

Item
Optional Accessories
Eyepiece


WF16X
WF20X
WF25X
P16X
Objective Infinity Plan Achromatic 20X(S)
Infinity Plan Achromatic 60X(S)
Nosepiece
Sextuple Revolving Nosepiece
Condenser
Dry Dark Field Condenser
Immersion Dark Field Condenser
Attachment
Simple Polarization Attachment
Phase Contrast Attachment
Fluorescent Attachment
