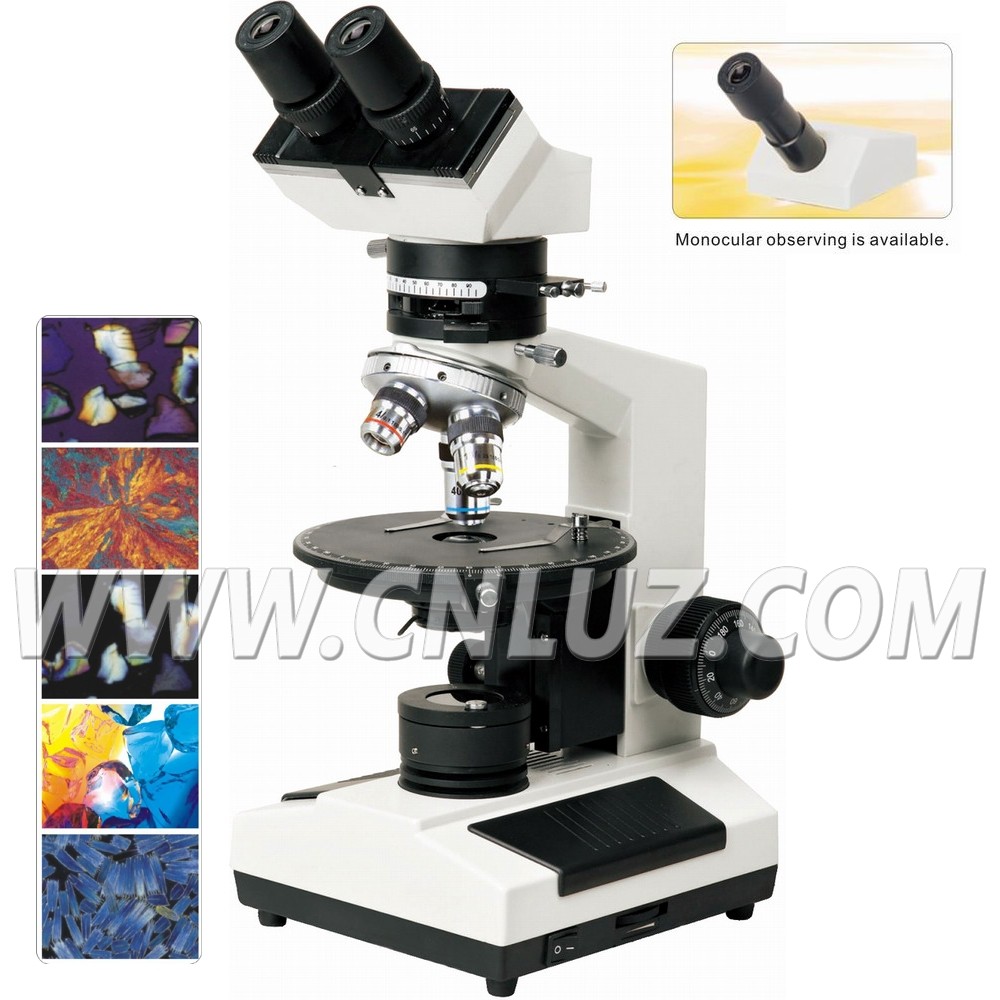

MBP.003048Polarizing Microscope
  • /usr/575/images/Products/Y/57517719.jpg
  • /usr/575/Picture/Y/10749.jpg
  •
  •

MBP.003048 Polarizing Microscope, With features of easy operation, complete functions and economy, it is and ideal instrument in geology, petroleum, coal, chemicals and physic fields. It is also widely used in academic demonstration and research.

Specification
MBP.003048-14
MBP.003048-24
MBP.003048-34
Head
Monocular Head, 45° Inclined, 360° Rotatable
Sliding Binocular Head, 45° Inclined, 360° Rotatable
Sliding Trinocular Head, 45° Inclined, 360° Rotatable
Eyepiece

WF10x/18mm
WF10x/18mm
WF10x/18mm, With Scale Of Crosshair
Objective
Strain Free Achromatic Objective 4x
Strain Free Achromatic Objective 10x
Strain Free Achromatic Objective 40x
Nosepiece
Outward Quadruple Nosepiece
Analyzer
Rotatable Analyzer With Graduation 0~90°
Bertrand Lens, Sliding In/Out Of Optical Path
Optical Compensator :
1) λ Slip, First Class Red
2) 1/4λ Slip
3) Quartz Wedge
Focusing
Coaxial Coarse & Fine Adjustment, Focusing Range 28mm, Fine Focusing Division 0.002mm
Stage
Round Stage Dia.135mm, 360° Rotatable, Graduation 1° Increment, Minimum Resolution 6', Center Adjustable
Condenser
Abbe Condenser N.A.1.25, WIth Iris Diaphragm & Filter
Polarizer
Swing-Out Polarizer 0~90° Rotatable, Located On Top Of Collector
Illumination
Halogen Lamp 6V20W, Brightness Adjustable
