Head
|

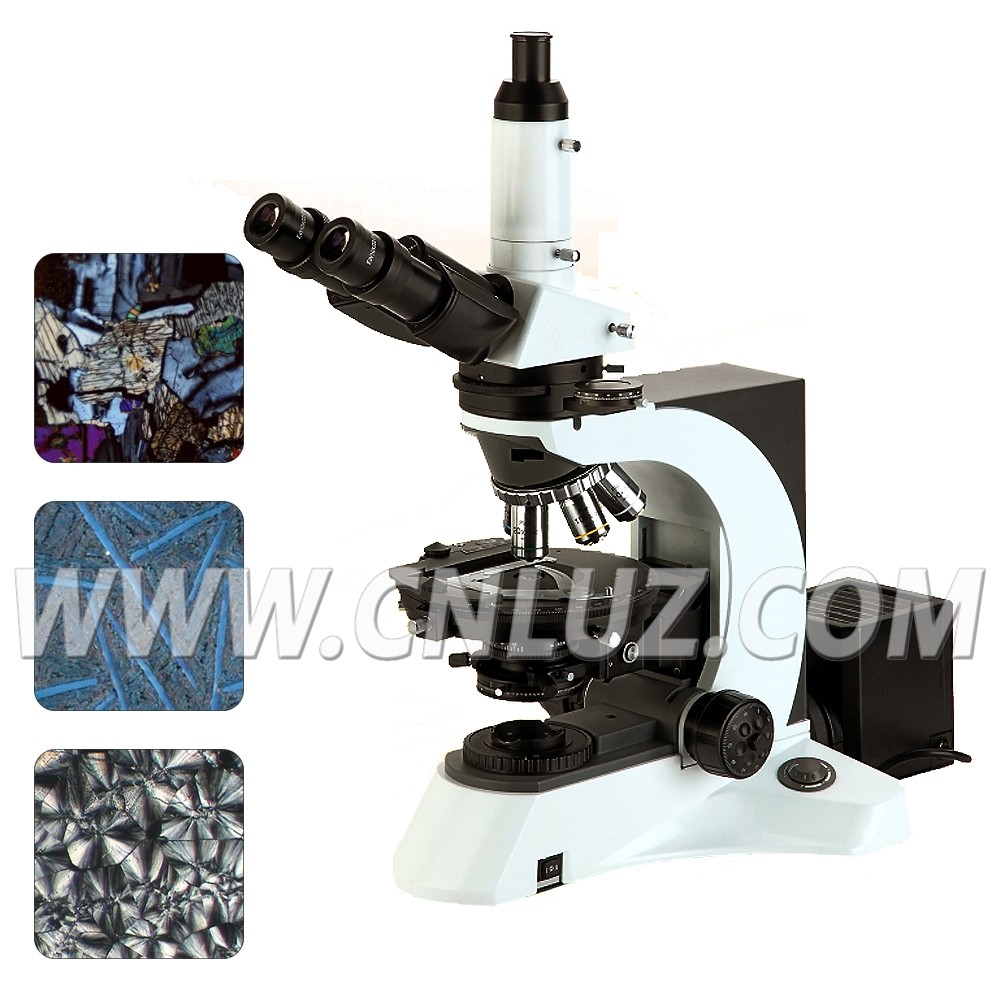

Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable
|
|
Optical System
|
Infinite optical system
|
|

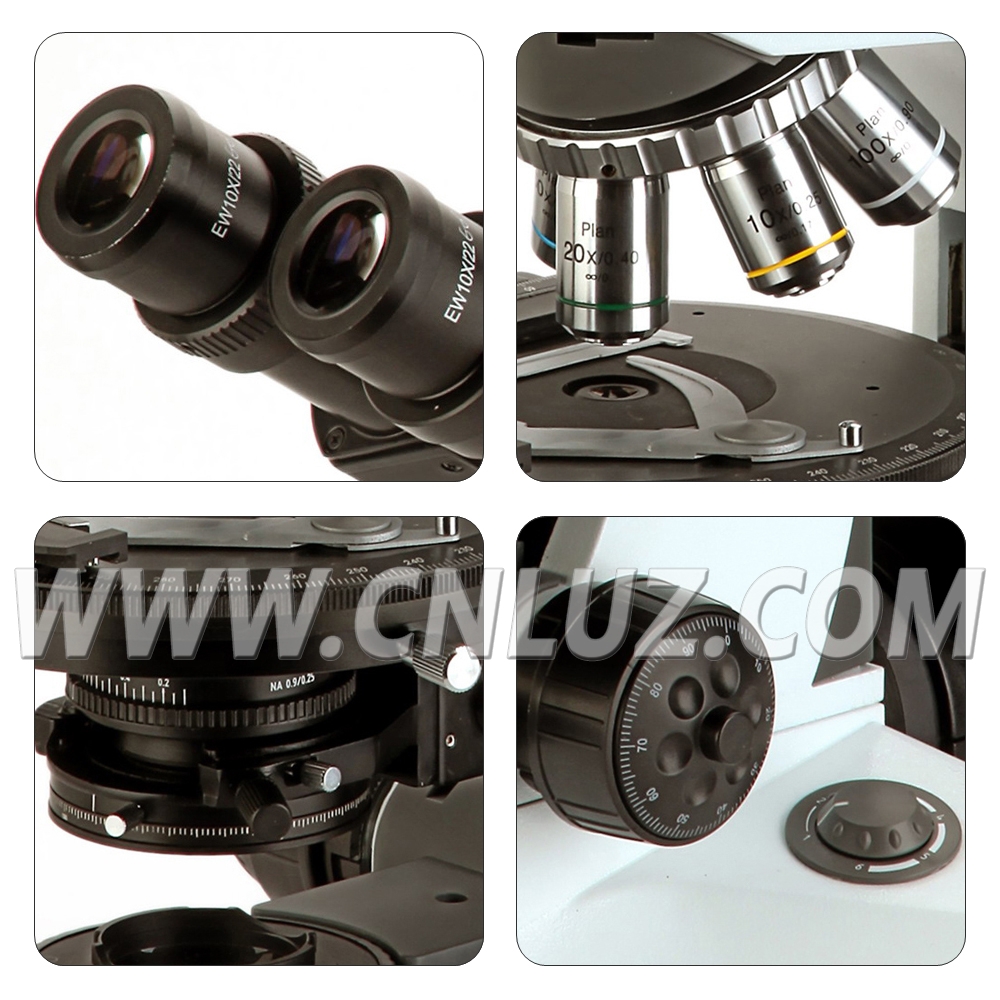

Eyepiece
|
Plan Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm
|
|
Plan Eyepiece With Scale of Crosshair
|
|
Plan Eyepiece With Cross
|
|
Plan Eyepiece With Gridding
|
|
|
Strainfree Infinity Plan Achromatic Objective 4x/0.10/∞/- W.D.17.3mm
|
|
Strainfree Infinity Plan Achromatic Objective 10x/0.25/∞/0.17 W.D.10mm
|
|
Strainfree Infinity Plan Achromatic Objective 40x/0.65/∞/0.17 W.D.0.54mm
|
|
Strainfree Infinity Plan Achromatic Objective 100x/1.25/∞/0.17 W.D.0.13mm
|
|
|
Backward Quintuple Nosepiece, Center Adjustable
|
|
Analyzer
|
1) 360° Dial Rotation Analyzer, Minimum Scale Reading 0.1° (Vernial Scale)
2) Switch Between Orthoscopic And Conoscopic Observation
3) Bertrand Lens Postion Adjustable
4) Optical Compensator: λ Slip (First Class Red), 1/4λ Slip, Quartz Wedge
|
|
Focusing
|
Coaxial Coarse & Fine Adjustment, Focusing Range 32mm, Fine Division 0.001mm, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.1mm Per Rotation
|
|
|
Polarizing Rotatable Stage, Dia.170mm, Center Adjustable
360° Scale, Minimum Division 1°
Minimum Reading 6' By Means of Vernial Scale
45° Click Stop Knob
|
|
Condenser
|
Strainfree Swing Condenser N.A.0.95/0.25
|
|
Polarizer
|
360° Rotatable, 0° Position Adjustable
|
|
Filter
|
Blue Filter, Dia.45mm
|
|
Illumination
|
Transmit Illumination Halogen Lamp 24V100W, Brightness Adjustable
|
