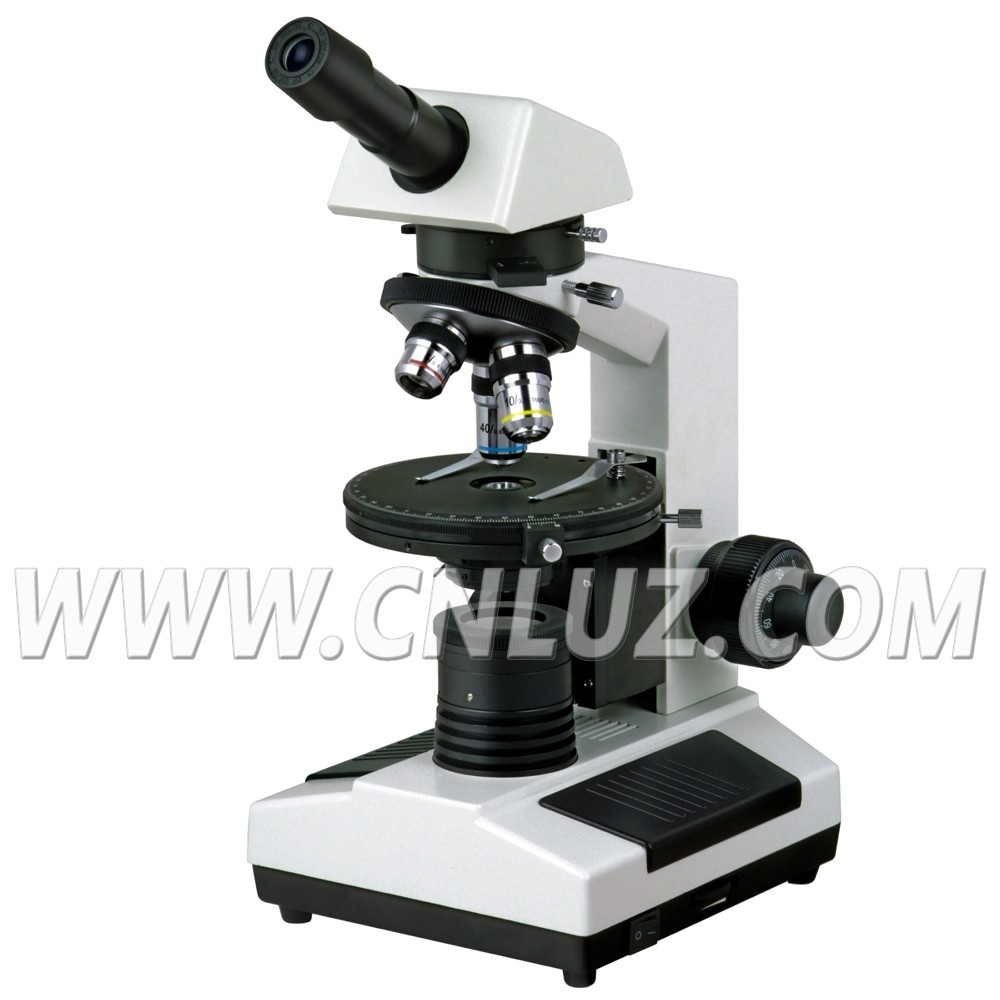

MBP.003056 Polarizing Microscope, With features of easy operation, complete functions and economy, it is and ideal instrument in geology, petroleum, coal, chemicals and physic fields. It is also widely used in academic demonstration and research.
|
Specification
|
MBP.003056
|
|
Head
|
Monocular Head, 45° Inclined, 360° Rotatable
|
|
Optical System
|
Infinite optical system
|
|
Eyepiece
|
WF10x, With Scale Of Crosshair
|
|
Objective
|
Strain Free Achromatic Objective 4x
|
|
Strain Free Achromatic Objective10x
|
|
|
Strain Free Achromatic Objective 40x
|
|
|
Nosepiece
|
Outward Quadruple Nosepiece
|
|
Analyzer
|
Fixed Analyzer
Bertrand Lens, Sliding In/Out Of Optical Path Optical Compensator : 1) λ Slip, First Class Red 2) Optical Compensator : 1/4λ Slip |
|
Focusing
|
Coaxial Coarse & Fine Adjustment, Focusing Range 28mm, Fine Focusing Division 0.002mm
|
|
Stage
|
Round Stage Dia.135mm, 360° Rotatable, Graduation 1° Increment, Minimum Resolution 6', Center Adjustable
|
|
Condenser
|
Abbe Condenser N.A.1.25, WIth Iris Diaphragm & Filter
|
|
Polarizer
|
Polarizer 0~90° Rotatable, Located On Top Of Collector
|
|
Illumination
|
Halogen Lamp 6V20W, Brightness Adjustable
|
