MBP.001004Polarizing Microscope
  • /usr/575/images/Products/Y/57517858.jpg
  • /usr/575/Picture/Y/10952.jpg
  • /usr/575/Picture/Y/10953.jpg
  •

These series transmitted and reflected polarization microscopes are utilized polarize light to observe and research the matter which have double refraction features, the user can make single polarizing observation, orthoscopic observation, conescopic observation. They are applied in geology, chemicals, physic and leechdom fields. They are also widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. They are the ideal instruments for scientific research and universities teaching demo.

  • Transmitted, Reflected, transmitted/reflected illumination can be choosn
  • Equipped with strain-free plan objectives(center adjustable) and wide field eyepiece
  • Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2μm
  • Rotatable stage, 360° graduated in 1° increments, minimum retardation resolution 6' center adjustable and with tightener£¬Stage vertical effective movement up to 30mm
  • Wide voltage range power supply (85-265V 47-60HZ), 6V20W halogen lamp, brightness adjustable

Specification

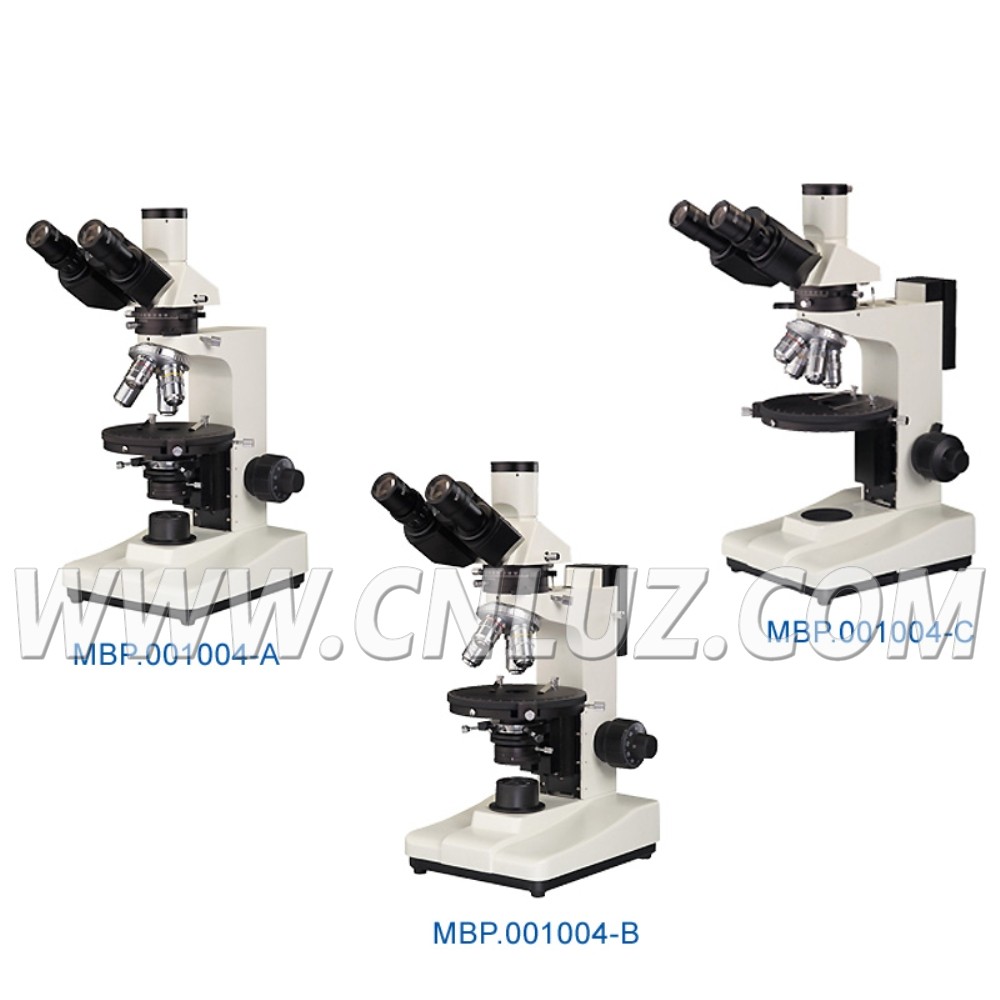

MBP.001004-A
MBP.001004-B
MBP.001004-C
Transmitted
Transmitted & Reflected
Reflected
Eyepiece
Wide field WF10x/18mm
Division eyepiece 10x/18mm 0.10mm/div
Head
Trinocular head,revolved (inclination of 30 °),100% image light for photography capable
Objective , Center Adjustable
Strain-free plan achromatic objective (cover glass:0.17mm)
PL 4X/0.10
Strain-free plan achromatic objective
(no cover glass) PL 5X/0.12
Strain-free plan achromatic objective (cover glass:0.17mm)
PL 10X/0.25
Strain-free plan achromatic objective
(no cover glass) PL L 10X/0.25
Strain-free plan achromatic objective(cover glass:0.17mm)
PL 40X/0.65 (spring)
Strain-free plan achromatic objective
(no cover glass) PL L40X/0.60 (spring)
Strain-free plan achromatic objective(cover glass:0.17mm)
PL 60X/0.85 (spring)
Strain-free plan achromatic objective
(no cover glass) PL L 60X/0.75 (spring)
Eyepiece Tube
Trinocular head, inclination of 30°,can send 100% of the image light to top photography port
Focus System
Coaxial coarse/fine system, with tension adjustable and up stop, minimum division of fine focusing: 2um
Nosepiece
Quadruple (Frontward ball bearing inner locating)
Stage
Rotatable stage, Diameter Φ150mm, 360° graduated (in 1degree increments), minimum retardation resolution 6' center adjustable and with tightener
Polarizing Attachment
Built-in analyzer, can switch to normal observe or polarizing observe freely, 90° rotatable with scale, minimum retardation resolution 12'
Bertrand lens, impellent style, center adjustable
λ compensator
λ/4 compensator
Quarts wedge compensator
Reflected Illumination

Rotatable Polarizer

6V 20w, halogen lamp, adjustable brightness
Transmitted Iillumination
Polarizer 360° rotatable, have 0,90,180,270 four scale

Collector for halogen lamp illumination

Illumination 6V 20w, halogen lamp, adjustable brightness

Abbe condensor N.A. 1.25, rack & pinion adjustable


Item

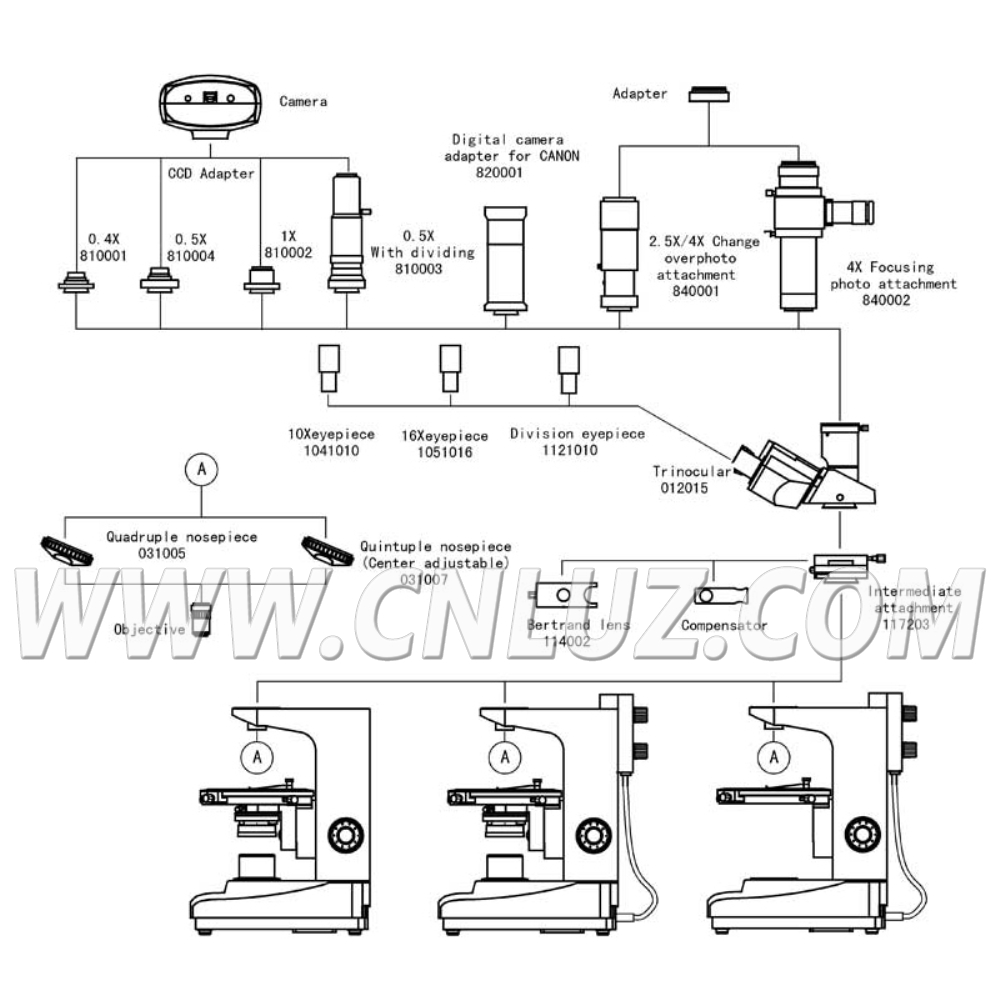

Optional Accessories
Eyepiece
Wide field WF16X(Φ11mm)
Objective

Strain-free plan achromatic objective(cover glass:0.17mm)
PL 20X/0.40
Strain-free plan achromatic objective(cover glass:0.17mm)
PL 100X/1.25 (Oil ,spring)
Strain-free plan achromatic objective(no cover glass)
PL L 20X/0.40
Strain-free plan achromatic objective(no cover glass)
PL L 50X/0.70
Strain-free plan achromatic objective(no cover glass)
PL L 80X/0.80
Strain-free plan achromatic objective (Dry) (no cover glass)
PL L 100X/0.85 (Spring)
Nosepiece
Quadruple (Frontward ball bearing inner locating),adjust the center of objective
Slide Moving Holder
Moving range: 30mmX25mm
CCD adapter 0.4x
0.5x
1x
0.5x with dividing 0.1mm/Div
Camera
DV-1 With USB & video output
DV-2 With USB output
DV-3 With video output
Photo Adapter
2.5x/4x change over photograph attachment with 10x viewing eypiece
4x focusing photograph attachment
MD adapter
PK adapter
Digital Camera Adapter
For Canon EF ditigal SLR camera adapter
