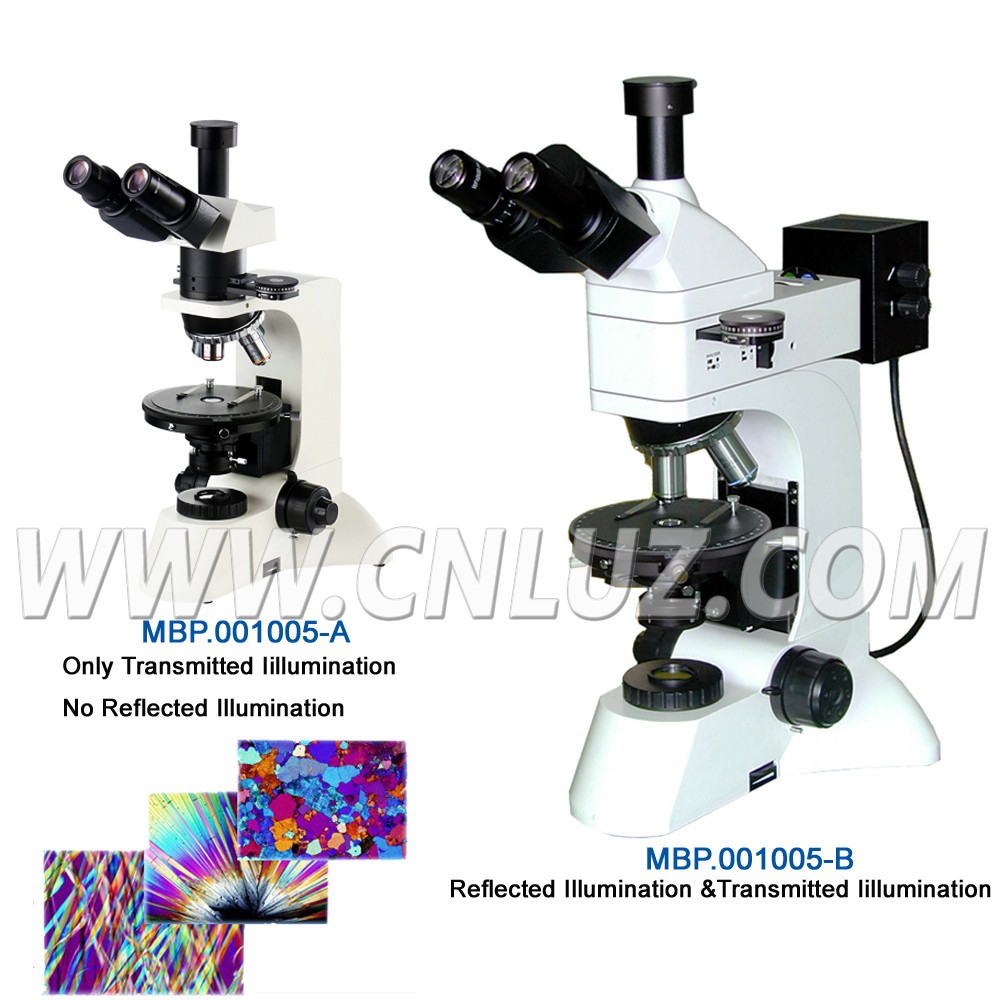

MBP.001005Polarizing Microscope

These transmitted & reflected polarization microscopes are utilized polarize light to observe and research the matter which have doublerefraction features, the user can make single polarizing observation, orthoscopic observation, conescopic observation. They are applied in geology,chemicals, physic and leechdom fields. They are also widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. They are the ideal instruments for scientific research and universities teaching demo.

Equipped with infinity plan objectives (strain-free) and wide field eyepiece
Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2μm
Rotatable stage, 360° graduated in 1° increments, minimum retardation resolution 6' center adjustable and withtightener,Stage vertical effective movement up to 30mm
Wide voltage range power supply (85-265V 47-60HZ), 6V30W halogen lamp, brightness adjustable

Specification	MBP.001005-A		MBP.001005-B
Eyepiece	Wide field WF10X (Φ20mm)
	Division eyepiece 10X (Φ20mm) 0.10mm/div
Head	Trinocular, Inclination 30°, send 100% of the image light to top photography port
Infinity Plan Objective, Strain-free	PL4x/0.10, WD 17.9mm	PLL 5X/0.12, WD 26.1mm, no cover glass
	PL10x/0.25, WD 8.8mm	PLL 10X/0.25, WD 20.2mm, no cover glass
	PL40x/0.65, WD 0.56mm	PLL 40X/0.60, WD 3.98mm, no cover glass
	PL100x/1.25, WD 0.33mm	PLL 60X/0.75 , WD 3.18mm, no cover glass
Intermediate	Built-in bertrand lens
Focusl System	Coaxial coarse/fine system, with tension adjustable and up stop, minimum division of fine focusing: 2um
Nosepiece	Quadruple(Backward ball bearing inner locating)
Compensator	λ compensator
	λ/4 compensator
	Quarts wedge compensator
Stage	Rotatable stage, Diameter Φ150mm, 360°graduated (in 1° increments), minimum retardation resolution 6' center adjustable and with tightener
Reflected Illumination	No Reflected Illumination	Polarizer 360 Degree rotatable
		Analyzer 360 Degree rotatable with scale and minimum vernier
		Illumination 6V 30w, halogen lamp, adjustable brightness
Transmitted Iillumination	Polarizer 360° rotatable, have 0,90,180,270 four scale
	Collector for halogen lamp illumination
	Illumination 6V 30w, halogen lamp, adjustable brightness
	Abbe condenser rack & pinion adjustable

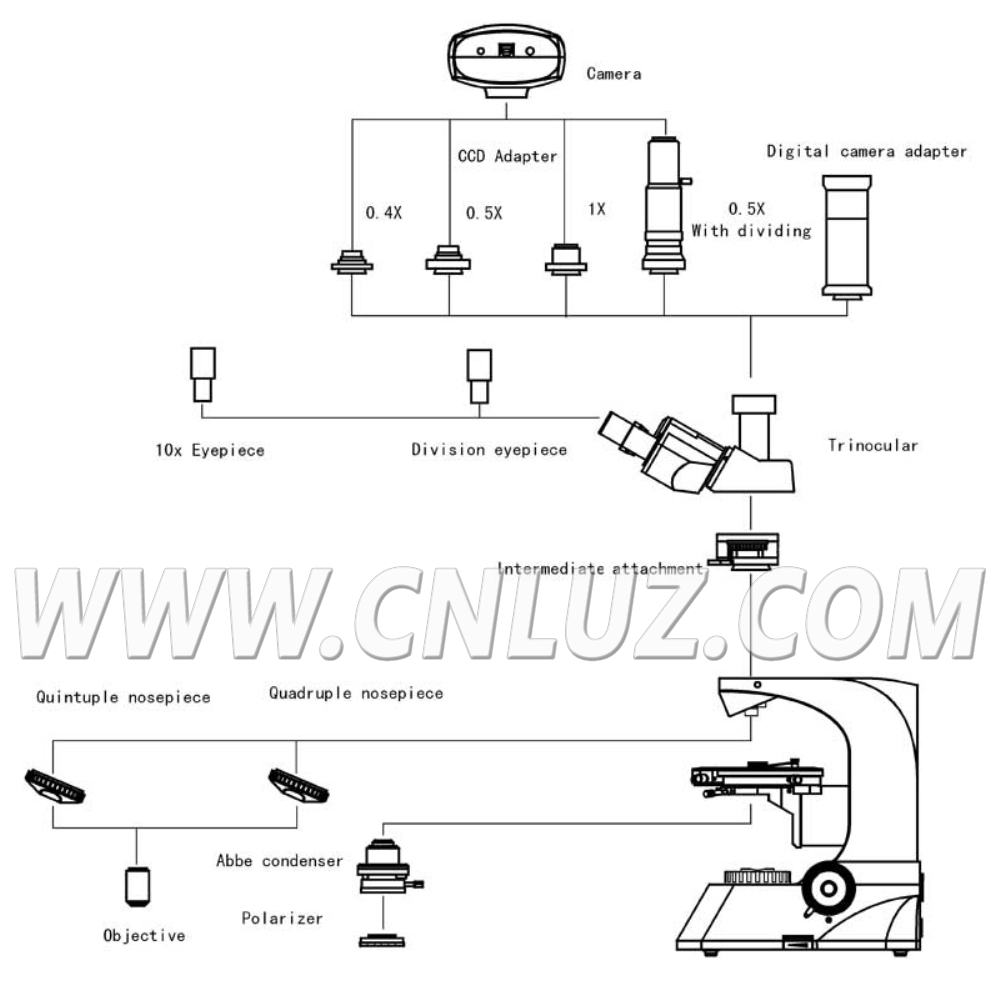

Item	Optional Accessories
Eyepiece	Wide field WF16X(Φ11mm)
Infinity Plan Objective, Strain-free (No Cover Glass)	PL L 20X/0.40 (Working Distance): 8.80mm
	PL L 50X/0.70 (Working Distance): 3.68mm
	PL L 80X/0.80 (Working Distance): 1.25mm
Nosepiece	Quintuple(Backward ball bearing inner locating)
Slide Moving Holder	Moving range: 30mmX25mm
CCD adapter	0.4x
	0.5x
	1x
	0.5x with dividing 0.1mm/Div
Camera	DV-1 With USB & video output
	DV-2 With USB output
	DV-3 With video output
Digital Camera Adapter	For Canon EF ditigal SLR camera adapter
