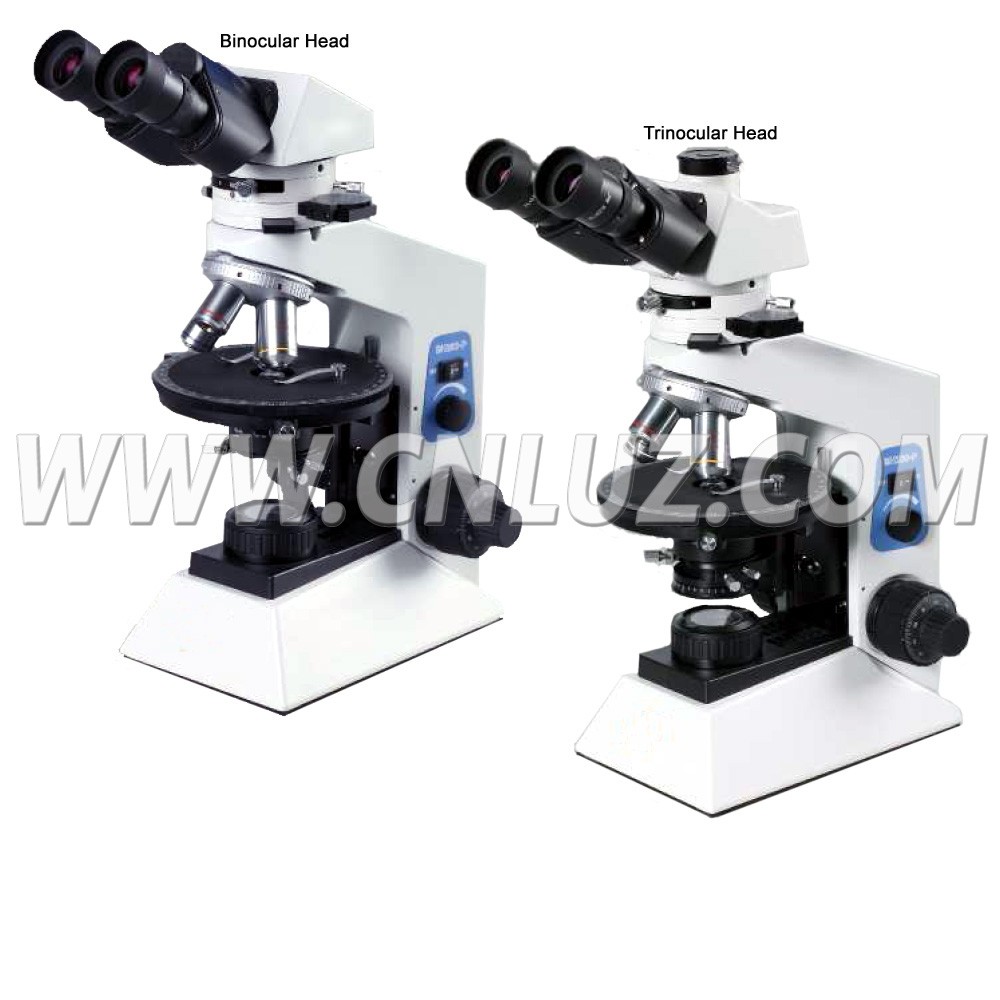

Binocular/Trinocular Polarizing Microscope, 40X~400X_IHPVISION:Microscope,Digital Vision

MBP.023066Binocular/Trinocular Polarizing Microscope, 40X~400X

This series microscope is a universal-type polarizing microscope, designed for teaching and conventional using.
Plan destressing objectives provide excellent image and high definition.
Professional metal rotary stage, particularly craftwork,wear-resistant and resist ing corrode. Smooth rotating, comfortable operation, with locking device, very easy to use.
Koehler illuminator systems, wide-range voltage, effectively protect and extend the life of bulbs.
Bertrand lens using the handle rotating structure, circular focus, more convenient and simple operation, reliable performance.
Widely used in component analysis and identification on on a variety of mineral specimens and sample slices under polarized light.

Specification	MBP.023066-B	MBP.023066-T
Head	Infinity Gemel Binocular, 30° Inclinded, 360° Rotatable, Interpupillary Distance 54~75mm, Diopter Adjustable +/-5°	Infinity Gemel Trinocular, 30° Inclinded, 360° Rotatable, Interpupillary Distance 54~75mm, Diopter Adjustable +/-5°

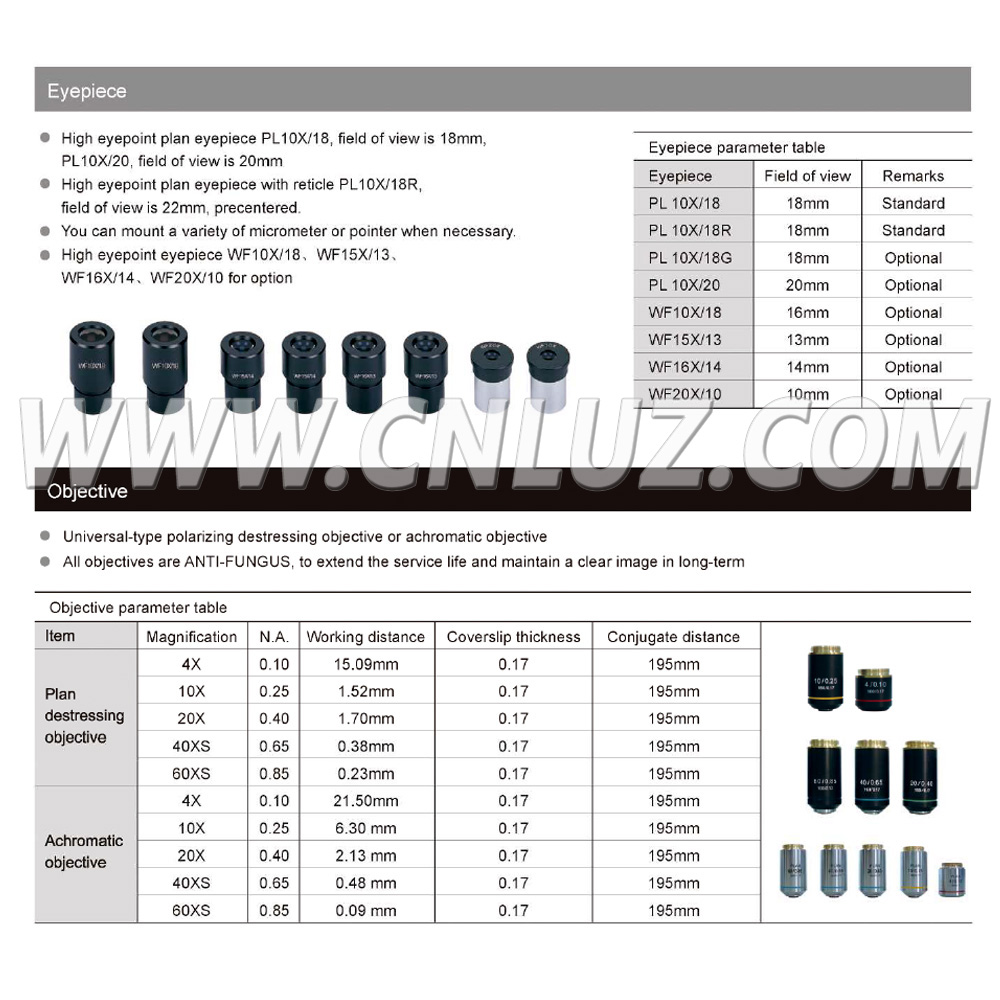

Eyepiece	High Eyepoint Plan PL10x/18mm
Objective	Infinity Plan Stress Free Objective 4x / 0.10
	Infinity Plan Stress Free Objective 10x / 0.25
	Infinity Plan Stress Free Objective 40x / 0.65
Nosepiece	Reversed Quadruple
Focusing	Coaxial Coarse & Fine Focusing, With Tension Adjustable and Limited Stopper, Coarse Focus Range 28mm, Fine Focusing Precision 0.002mm
Stage	Round Stage Dia.160mm, 360° Rotatable, 1° Increments, a Dose Value of Vernier 6', WIth Locking Device Special Metal Composing, Particularly Craftwork, Wear-Resistance and Resisting Corrode, with Micrometer 0.01mm Increments
Condenser	Koehler Abbe Condenser 1.25, Stress Free
Illumination	Transmit Illumination: Built-in Koehler Illumination, 6V30W Halogen Lamp, Precentered, With Continuously Intensity Control
Filter	Yellow, Dia.45mm

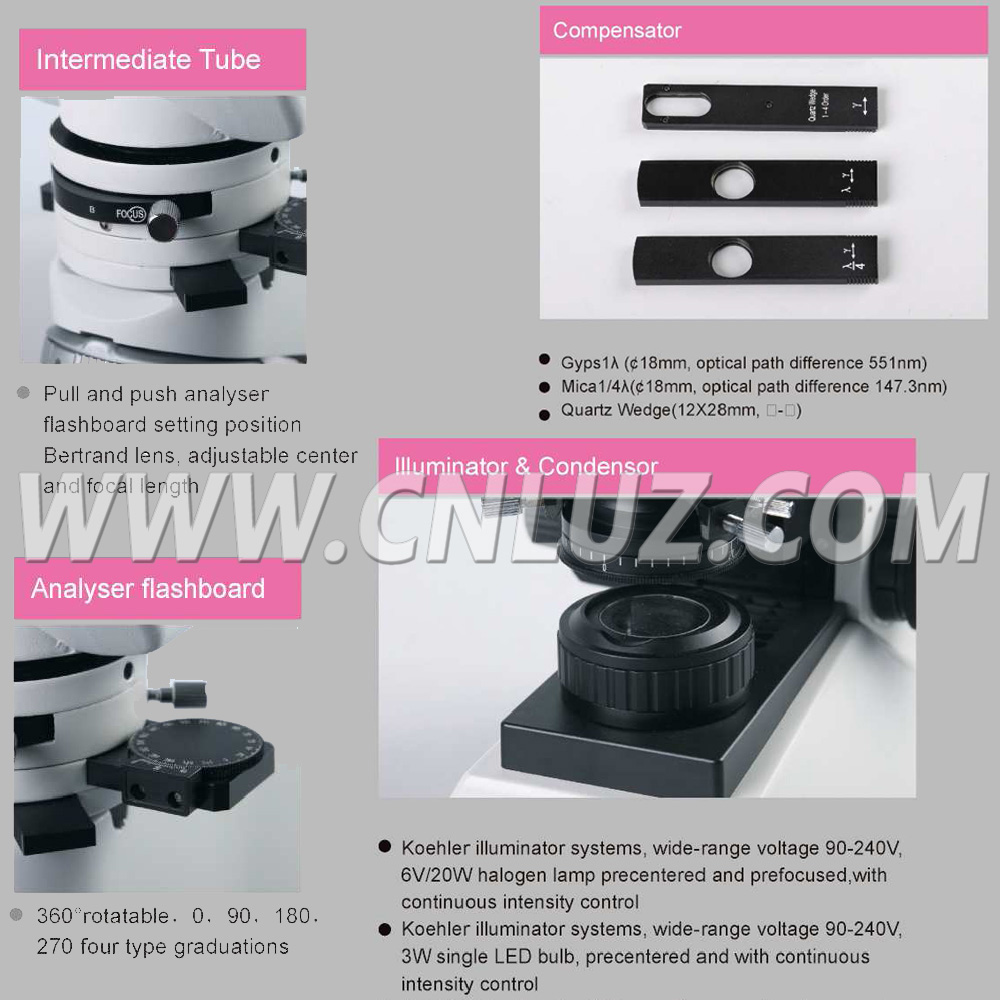

Polarizing	Intermediate Tube, with Built-in Analyser, 90° Rotary and Can Shift Out the Optical Way, Bertrand Lens, Polarizer, 360° Rotatable, 0,90,180,270 Four Type Graduations Analyser, 360° Rotatable, 2° Increments, a Does Value of Vemier 6'
Compensator	Gyps 1λ , Dia.18mm, Optical Path Difference 551nm Mica 1/4λ , Dia.18mm, Optical Path Difference 147.3nm Quartz Wedge 12*28mm
Power	90-240V Wide Voltage

Item	Optional Accessories
Eyepiece	Wide Field WF15x/13mm
	Wide Field WF20x/10mm
	High Eyepoint Plan PL10x/20mm
	High Eyepoint Plan PL10x/18mm, with Cross PL10x18g,
	High Eyepoint Plan PL10x/18mm, with Retical Micrometer
Objective	Infinity Plan Stress Free Objective 20x/0.40
Objective	Infinity Plan Stress Free Objective 60xs/0.85
Filter	Netural, Dia.45mm
	Green, Dia.45mm
	Blue, Dia.45mm
Dark Field	Dark Field Slide, for Koehler Illuminaiton 4x~40x
Adapter	Photo Adapter, with 3.2x Photo Eyepiece, PK or MD Mount
	0.5x C-Mount, for 1/2" CCD, Focus Adjustable
	0.35x C-Mount, for 1/3" CCD,Focus Adjustable
