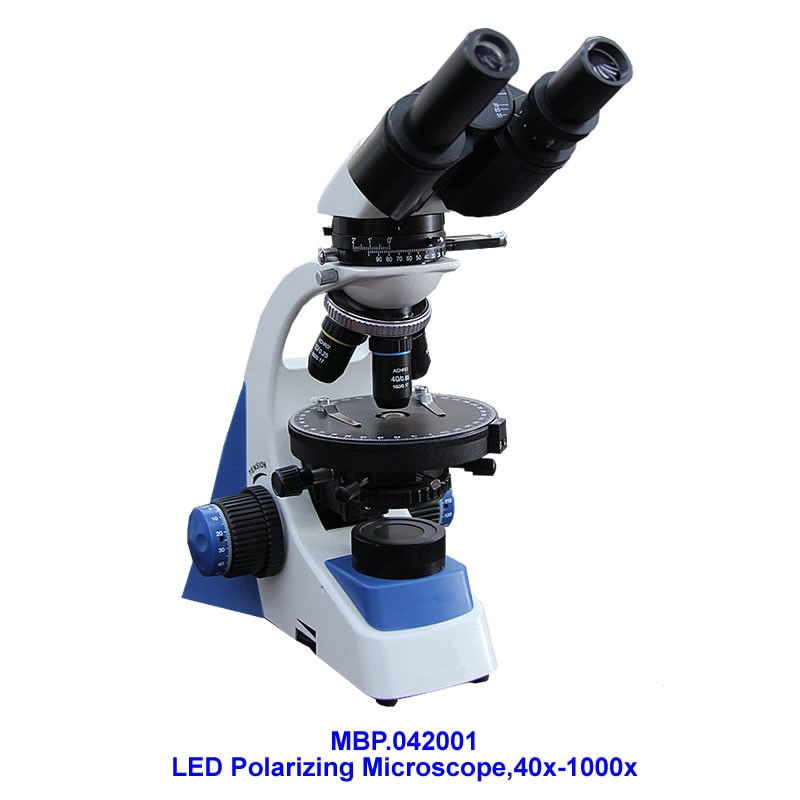

MBP.042001Polarizing Microscope LED 40x-1000x
  • /usr/575/images/Products/Y/57520659.jpg
  • /usr/575/Picture/Y/11647.jpg
  • /usr/575/Picture/Y/11648.jpg
  •

MBP.042001 Polarization Microscope is designed for the examination of birefringent samples from petrography and mineralogy, and can also be used for the synthetic materials industry where repeatable observations can be performed with efficiency and reliability. This polarizing microscopy also works especially well in Educational applications of material professions, where affordability and ease-of-use are key requirements.

Specification
MBP.042001 LED Polarizing Microscope 40x-1000x

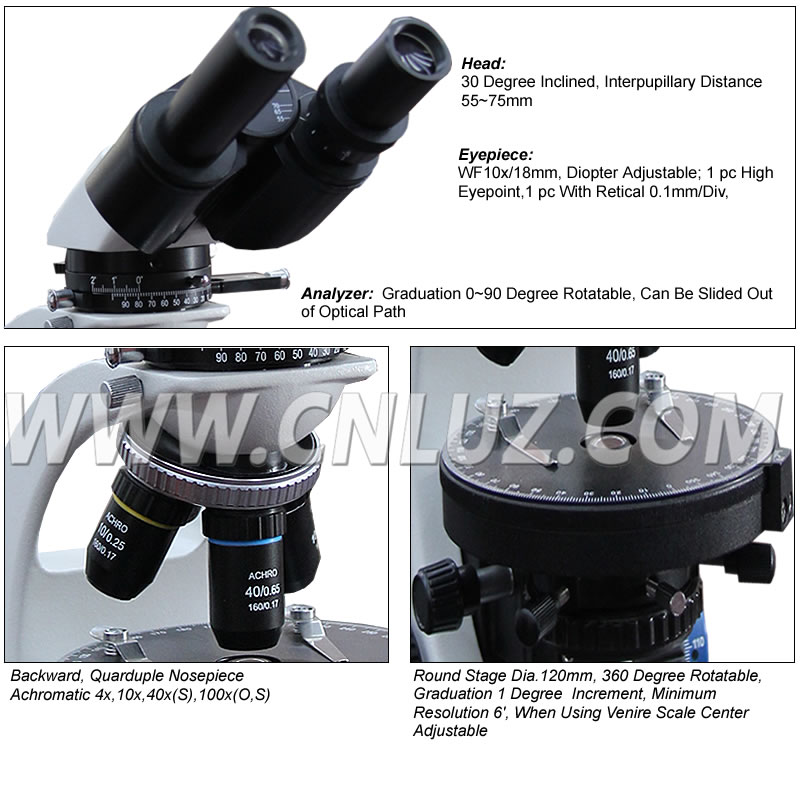

Head
Binocular Head, 30° Inclined, Interpupillary Distance 55~75mm
Eyepiece
WF10x/18mm, 1 pc High Eyepoint,
WF10x/18mm, 1 pc With Retical 0.1mm/Div,
Objective
Achromatic 4x
Achromatic 10x
Achromatic 40x
Achromatic 100x
Nosepiece
Backward, Quarduple Nosepiece

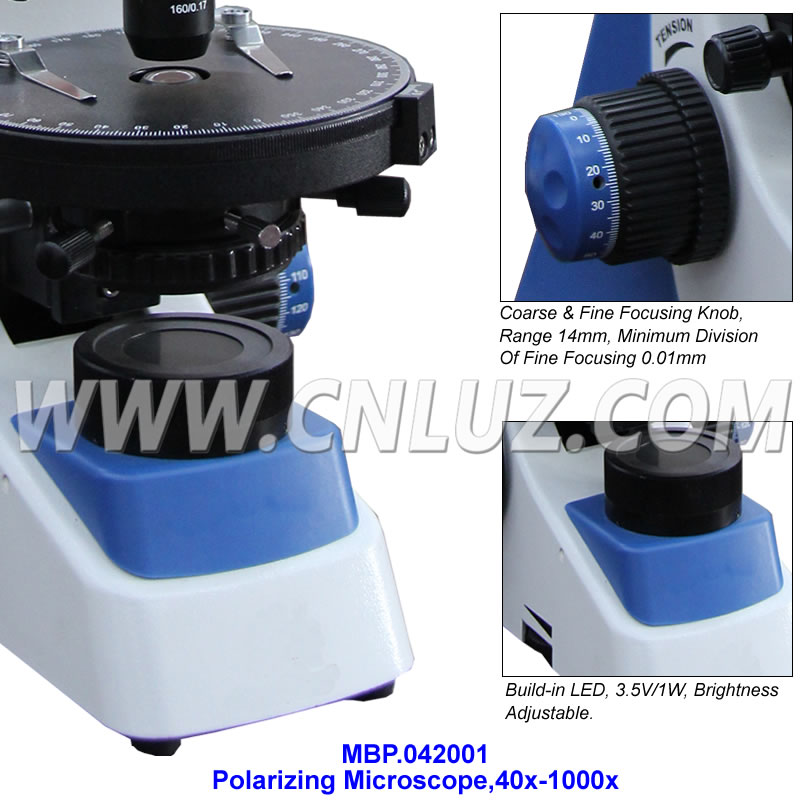

Focusing
Coarse & Fine Focusing Knob, Range 14mm, Minimum Division Of Fine Focusing 0.01mm
Stage
Round Stage Dia.120mm, 360° Rotatable,Graduation1° Increment,Minimum Resolution 6', When Using Venire Scale Center Adjustable
Condenser
Abbe N.A.1.25, With Dia.2~30mm Iris Diaphragm, With Filter Dia.32mm
Illumination
Build-in LED, 3.5V/1W, Brightness Adjustable.
Polarizing Set Analyzer: Rotatable With Graduation 0~90°, Can Be Slided Out of Optical Path
Polarizer: On Light Collector, 360°Rotatable
Optical Compensator with following :
-- λ Slip (First Class Red),
--1/4λ Slip
--Quartz Wedge Slip
Bertrand Lens, can slid out of optical path

Item
MBP.042001 Optional Accessories
Head
Monocular Head, 30° Inclined
