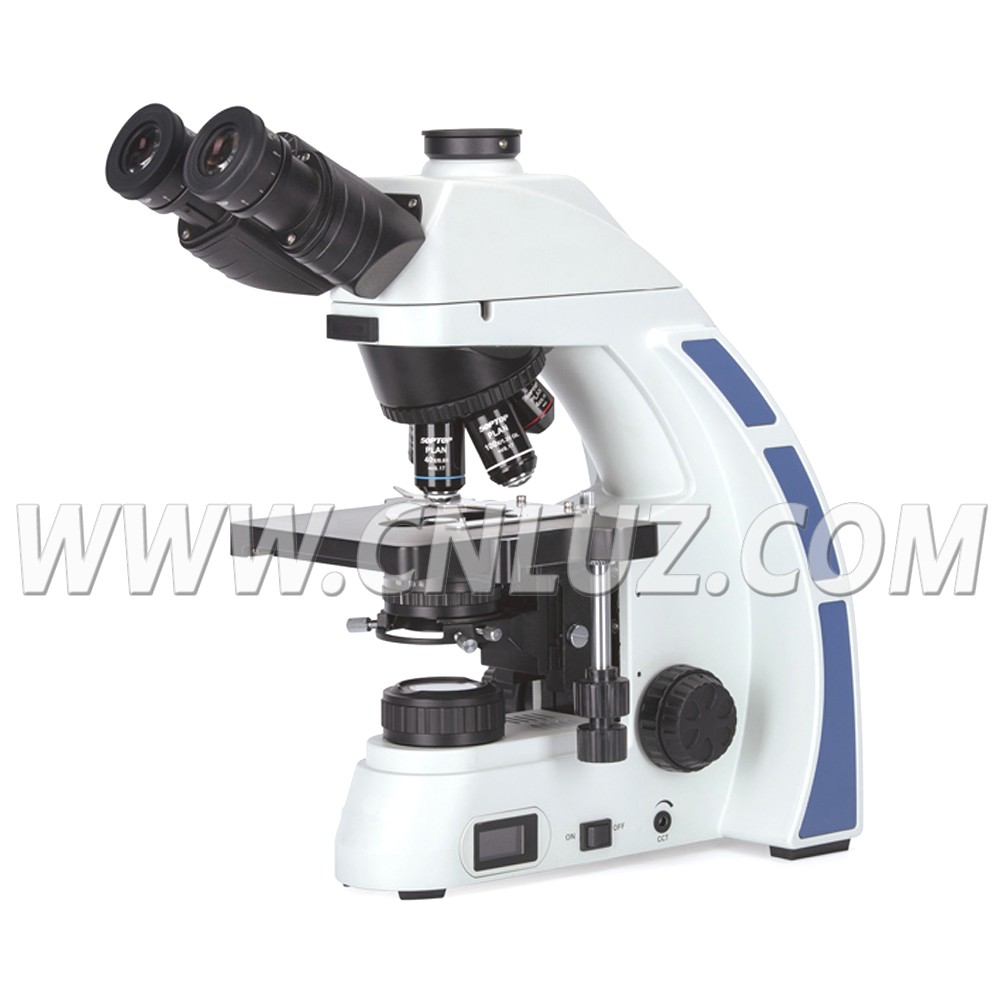

MBC.023006 Advanced Professional Phase Contrast Microscope
|
| Optical System |
Infinity Color Corrected Optical System |
|
|
Seidentopf trinocular head, inclined at 30°,360° Rotatable
|
|
Eyepiece
|
Eyepiece 360 degree rotateable, means the High Eyepoint can be adjusted 34mm higher. Wide field eyepiece WF10x/ 20,High Eye Point, Diopter Adjustable +/-5 Degree;
|
Phase Contrast Attachment
|

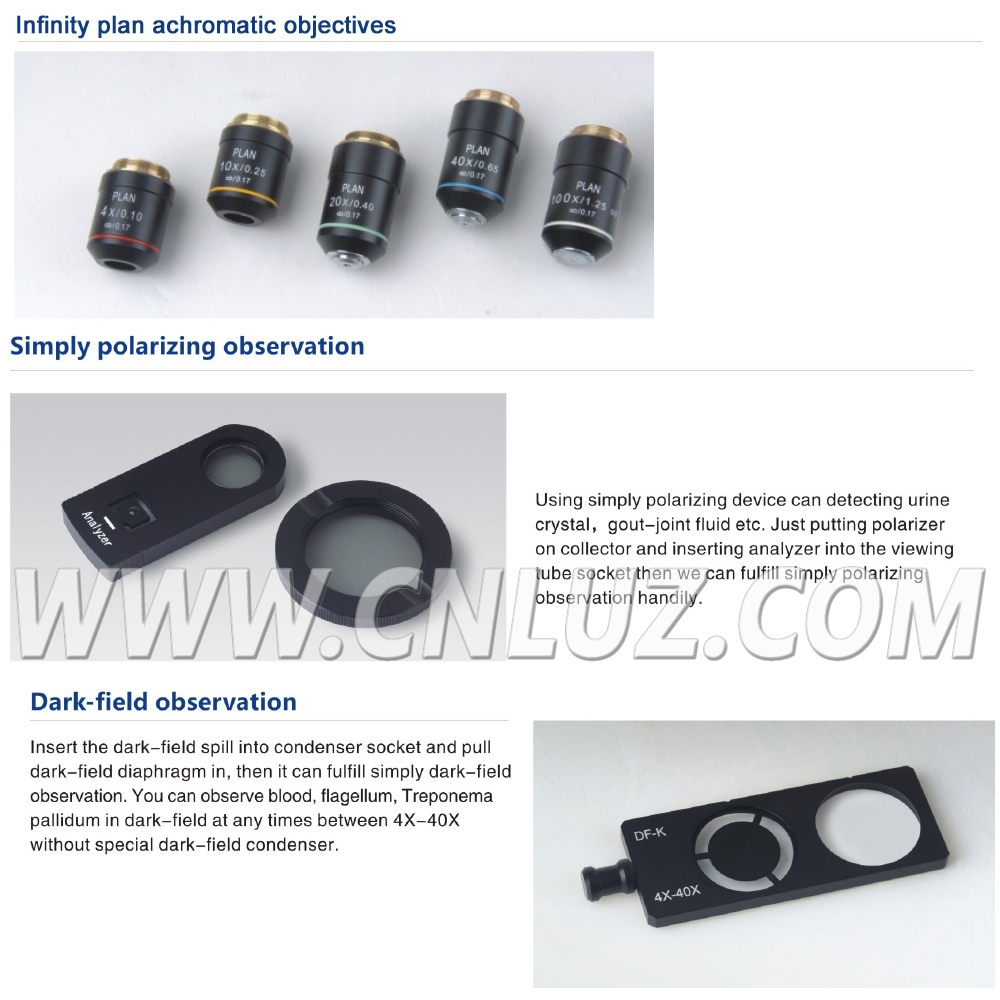

Infinity Plan Phase Contrast Objective 10X/0.25
|
|
Infinity Plan Phase Contrast Objective 20X/0.50
|
|
Infinity Plan Phase Contrast Objective 40X/0.65
|
|
Infinity Plan Phase Contrast Objective 100X/1.25
|
| Centering telescope |
| Phase Contrast Slide, for 10x, 40x Infinity Objective |
| Phase Contrast Slide, for 20x,100x Infinity Objective |
|
|
Backward quadruple nosepiece
|
|
Focusing
|
Low Position Coaxial Coarse & Fine Focusing Knob, with Safty Limitation and Tension Adjustment Ring. Coarse Range 25mm, Fine Precision 0.002mm
|
|
|
Double Layer Mechanical Stage 140*150mm, Moving Range 76*50mm, Precision 0.1mm
|
|
Condenser
|
Kohler N.A. 1.25, with Socket for Phase Contrast and Dark Field Slides, Center Fixed
|
|
Illumination
|

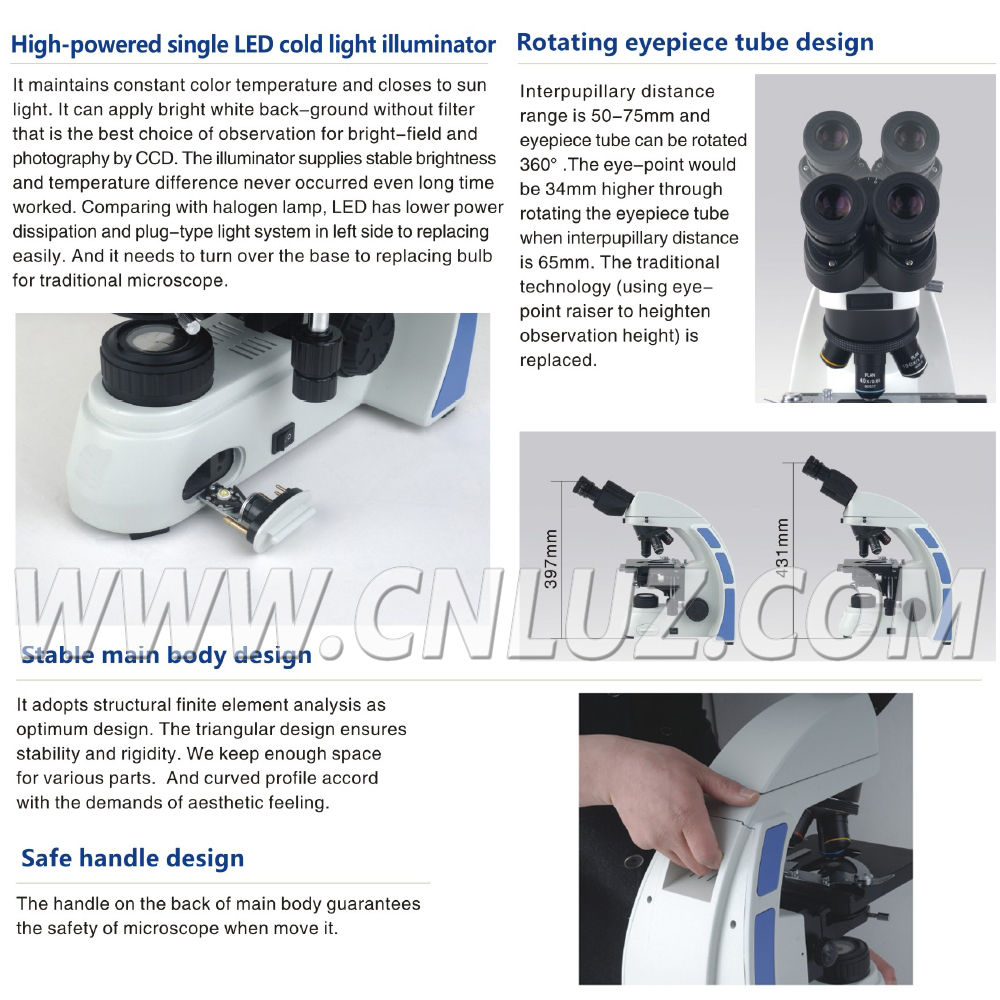

3W LED, Intensity Adjustable, Center Fixed
|
| Power |
100~240V Wide Range Power Supply |
