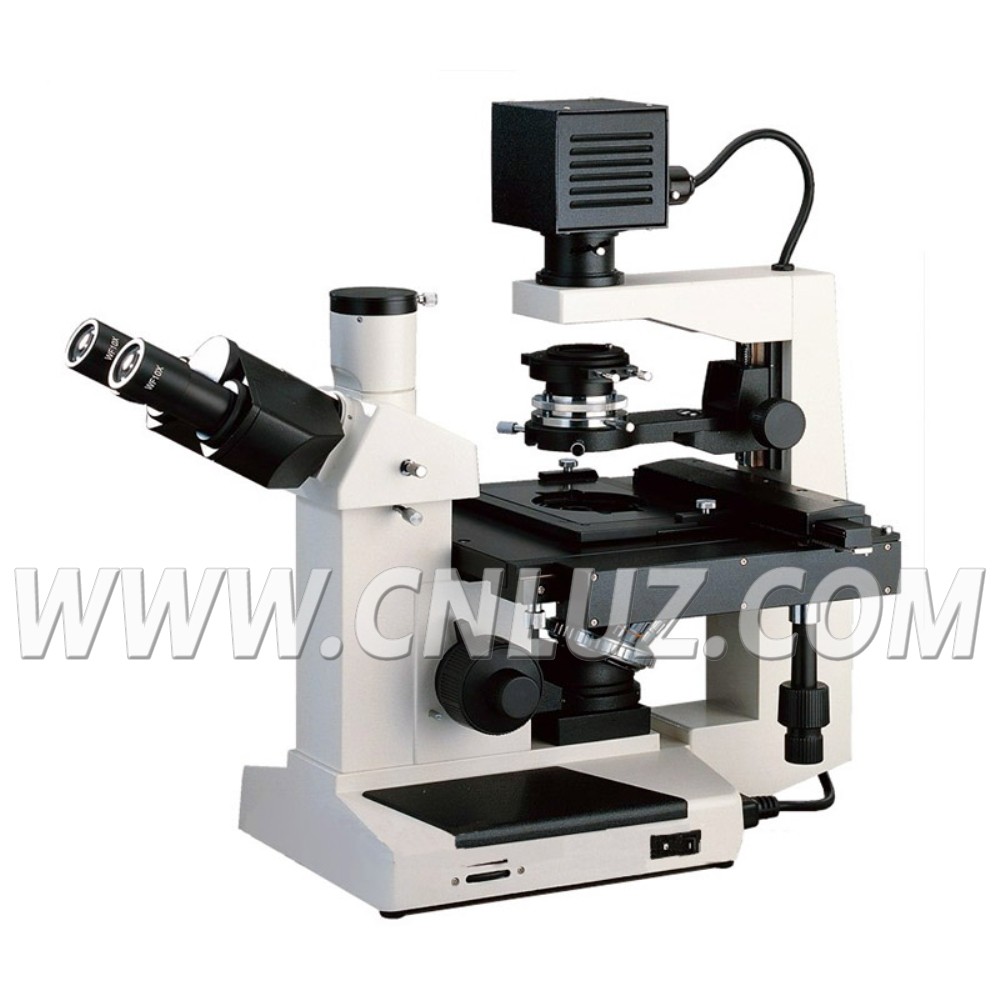

MBI.001007Inverted Microscope
  • /usr/575/images/Products/Y/57517861.jpg
  • /usr/575/Picture/Y/10958.jpg
  • /usr/575/Picture/Y/10959.jpg
  •

This inverted microscope is equipped with wide field eyepieces, long working distance plan achromatic objectives, long working distance condenser and phase contrast unit. It can observe transparent and unfinished living specimen in culture bottle or culture utensil. It is the ideal tools for research of living specimen structure, liquid, deposits and so on.

  • Wide field eyepiece, long working distance, plan achromatic objectives
  • Equipped with phase contrast unit, include long working distance condenser, phase contrast objective and centering telescope
  • Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing 2um
  • 6V 20W halogen lamp with brightness control

Specification
MBI.001007
Eyepiece
WF10X(Φ20mm)
Head
Trinocular, inclination of 30°,100% image light for photography capable
Objective
Long working distance plan achromatic PLL10x/0.25
Long working distance plan achromatic PLL25x/0.40
Long working distance plan achromatic PLL40x/0.60
Long working distance plan achromatic phase contrast PLL10x/0.25 PHP2
Shelf of Specimen
Match to installΦ68mm, or 77x29mm culture utensil
Match to install 82x57mm culture utensil
Match to install 128x85mm 96 holes culture utensil
Focus System
Coaxial coarse/fine focus system, with tensional adjustable and limit stopper, minimum division of fine focusing: 2 μm
Nosepiece
Quadruple ball bearing inner locating
Stage
Double layer mechanical, size 224x208mm, moving range 112x79mm
Filter
Blue filter
Green filter
Frosted filter
Light Source
6V 30W halogen lamp with brightness control
Sliding Phase Contrast Unit
Centering telescope
10x impellent style phase plate
Condenser rack & pinion adjustable, NA=0.4, working distance 30mm

Item

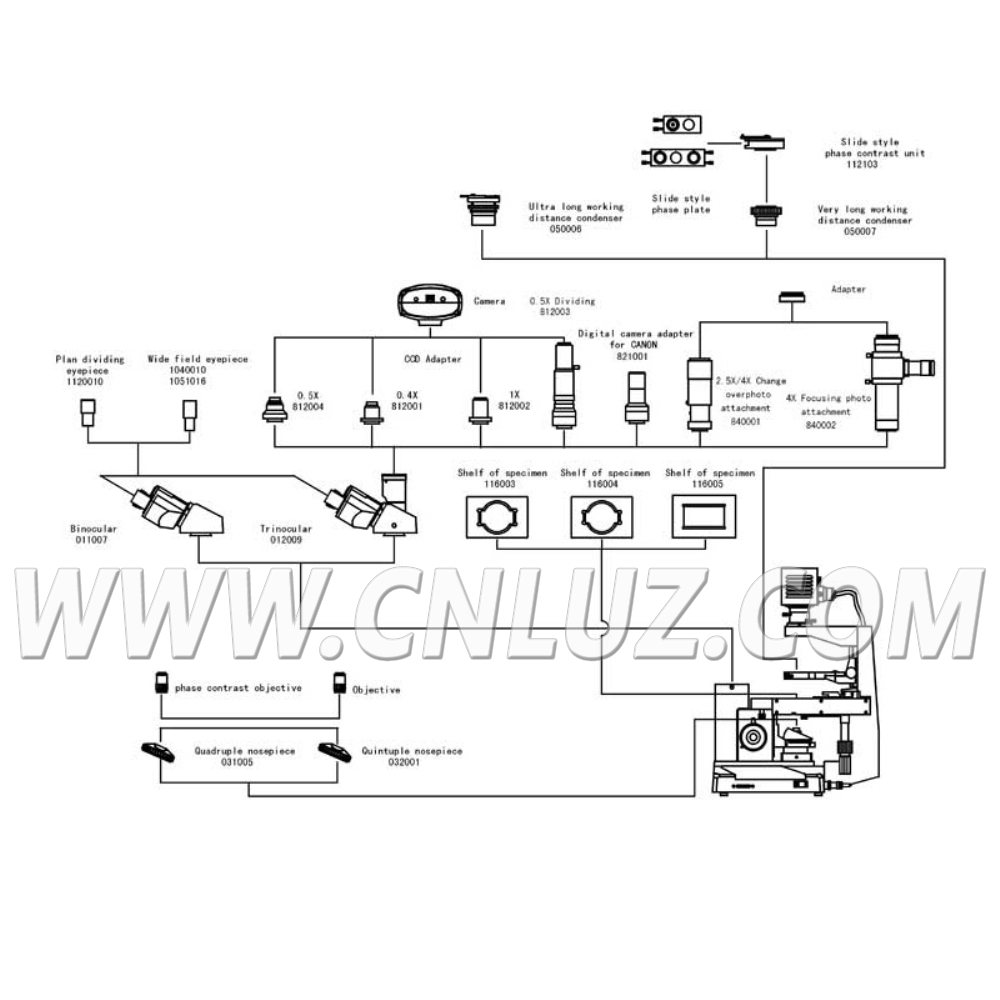

Optional Accessories
Eyepiece
Wide field WF16x/11mm
Divding 10x/20mm, 0.1mm/Div
Condenser
Ultra long working distance, working distance 70mm
Filter
Yellow filter
Nosepiece
Quintuple (Ball bearing inner locating)
Sliding Phase Contrast Unit
Long working distance plan phase contrast objective PLL25x/0.40 PHP2
Long working distance plan phase contrast objective PLL40x/0.60 PHP2
Sliding phase plate 25x/40x
CCD Adapter
0.4x
0.5x
1x
0.5x with dividing 0.1mm/Div
Photo Adapter
2.5x/4x change over photograph attachment with 10x viewing eypiece
4x focusing photograph attachment
MD adapter
PK adapter
DC Adapter
For Canon ditigal camera adapter (A610, A620, A630, A640)
