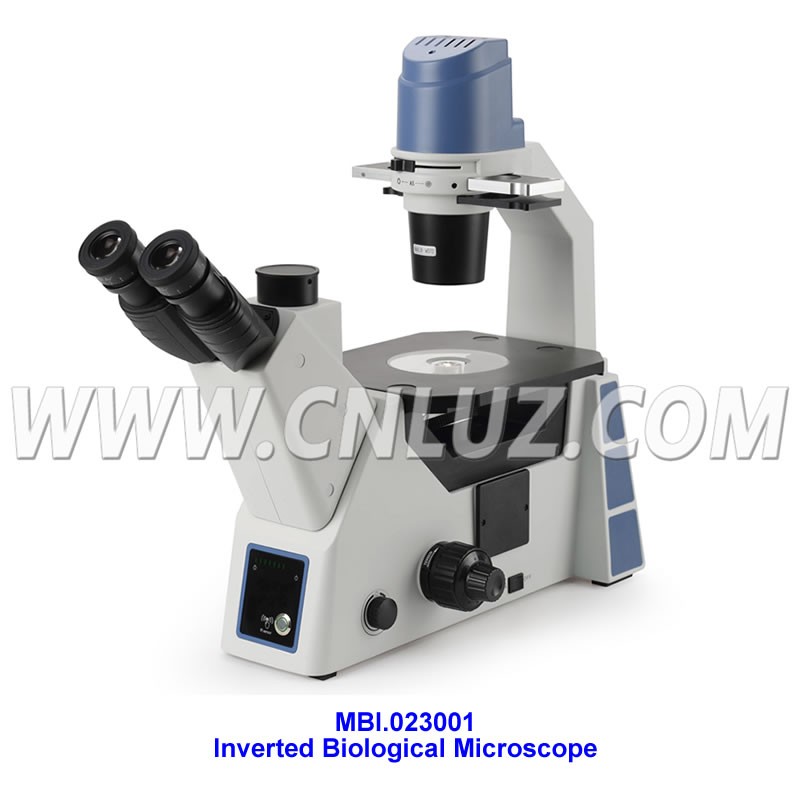

MBI.023001Infinity Inverted Biological Microscope 40x-400x
  • /usr/575/images/Products/Y/57520384.jpg
  • /usr/575/Picture/Y/11632.jpg
  •
  •
  •  With Infinity Optical system of MBI.023001 you can get clear image.
  •  With ergonomic designed frame and superior
  •  Micro-image and easy operation.
  •  Specially designed for cell tissue culture
  •   With high contrast and resolution, highlighting the outline and internal structure of cells, meets the needs of basic laboratory research.
  •   With the core concept of energy conservation and environmental protection, MBI.023001 is more intelligent.
Specification
MBI.023001 Inverted Biological Microscope
Optical system Infinity color corrected optical system

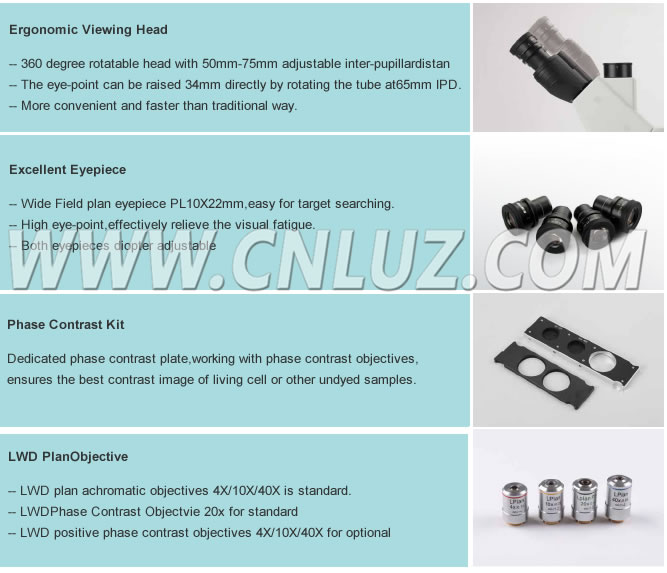

Head 45° inclined gemel trinocular head, 360° rotatable, interpupillary distance: 50mm~76mm; splitting ratio =5:5
Eyepiece Pair of High eyepoint wide field plan eyepiece PL10X22mm, diopter adjustable
Objective Long working distance plan achromatic objectives 4X/10X/40X
Long working distance positive phase contrast objectives 20X
Nosepiece Quadruple nosepiece
Focus Coaxial focus system with tension adjustment, coarse range: 9mm, fine precision: 0.002mm
Stage

Petri dish holder
Metal plate
Glass plate.
Size:215mmX250mm fixed stage

Condenser N.A. 0.3 condenser, working distance 72mm, dismountable
phase contrast slide
Dia 30mm Centering telescope
Illumination 5W LED illumination with light indicator, intensity adjustable; With Infrared sensor.
Voltage External wide voltage transformer, input 100-240V, output 12V5A;
Other accessories Color temperature change filter/contrast green filter, M3/M4 Allen key

Item
Optional Accessories
Objective Long working distance positive phase contrast objectives 4X
Long working distance positive phase contrast objectives 10X
Long working distance positive phase contrast objectives40X
Nosepiece Quintuple nosepiece
Stage

Moving Stage
Plate Extension plate
Metal plate
Glass plate
Holder Slide holder
Petri dish holder
Teraseki holder
