MBI.023002Infinity Plan Inverted Microscope, 40X~400X
  • /usr/575/images/Products/Y/57521904.jpg
  • /usr/575/Picture/Y/11656.jpg
  • /usr/575/Picture/Y/11657.jpg
  • /usr/575/Picture/Y/11658.jpg

Color corrected infinity optical system. Long working distance objectives, great image Ergonomics physical design, various accessories for option ---Specially design for observation of cell structure.

  • Color corrected infinity optical system, excellent optical performa nce and great image.
  • Application of high-contrast and low chromatic phase contrast observati on, access to detailed examination of internal structure of the cells.
  • Supply long working distance and high N.A. objectives to get flat and cl ear image.
  • Long working distance condenser has capacity to use revolution bottle and suit for various sample containers.
  • Well-designed body structure, durable, high resistance of vibration.
  • Low position coaxial coarse and fine adjustment, ergonomic design
Specification
MBI.023002-B
MBI.023002-T
Optical System Infinity Color Corrected Optical System
Head
Binocular,Gemel Viewing Head, 45 Degree Inclined, Interpupilary Distance 54-75mm, Spliting Ratio 80:20

Trinocular,Gemel Viewing Head, 45 Degree Inclined, Interpupilary Distance 54-75mm, Spliting Ratio 80:20
Eyepiece
PL10x/22mm, High Eyepoint, Wide Field
Objective
Long Working Distance Infinity Plan Achromatic Objectives, LWDPL4X/0.10, W.D.=22mm
Long Working Distance Infinity Plan Achromatic Objectives, LWDPL10X/0.25, W.D.=7.94mm
Long Working Distance Infinity Plan Achromatic Objectives, LWDPL40X/0.60, W.D.=3.71mm
LWD Infinity Plan Phase Contrast Objectives, LWDPH20X/0.40, W.D.=7.66mm
Nosepiece
Revolving Quintuple Nosepiece
Focusing
Coaxial Coarse & Fine Focusing System, Coarse Adjustment Range 9mm, Fine Adjustment Precision 0.002mm,with Tension Adjustment, with Safty Stop

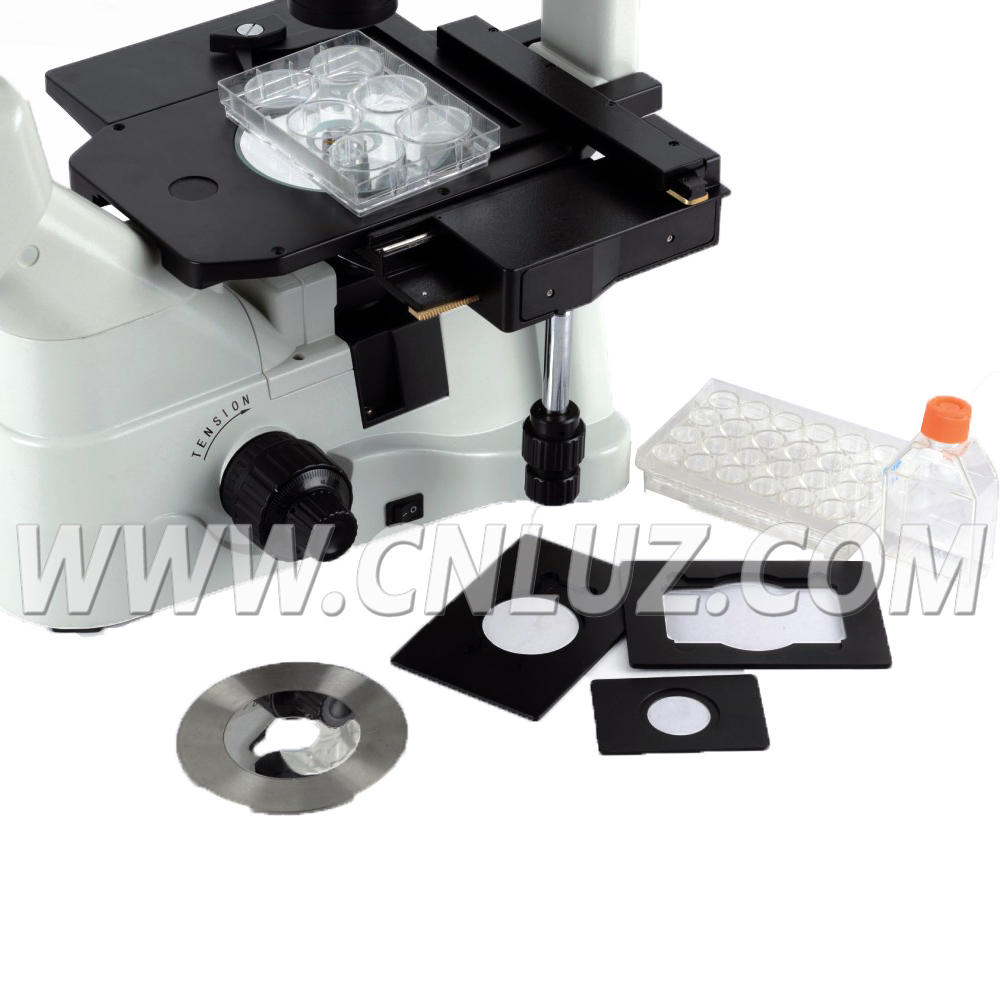

Stage
Fixed Stage Size 250*160mm, Slider Clips
  • Glass Plate
  • Metal Plate
  • Petri Dish Holder, Dia.35mm
Condenser
N.A.0.3 Kohler Illumination Condenser, with Phase Adjustable Slide Plate, Long Working Distance 72mm. The Whole Set Can Be Rotated Down

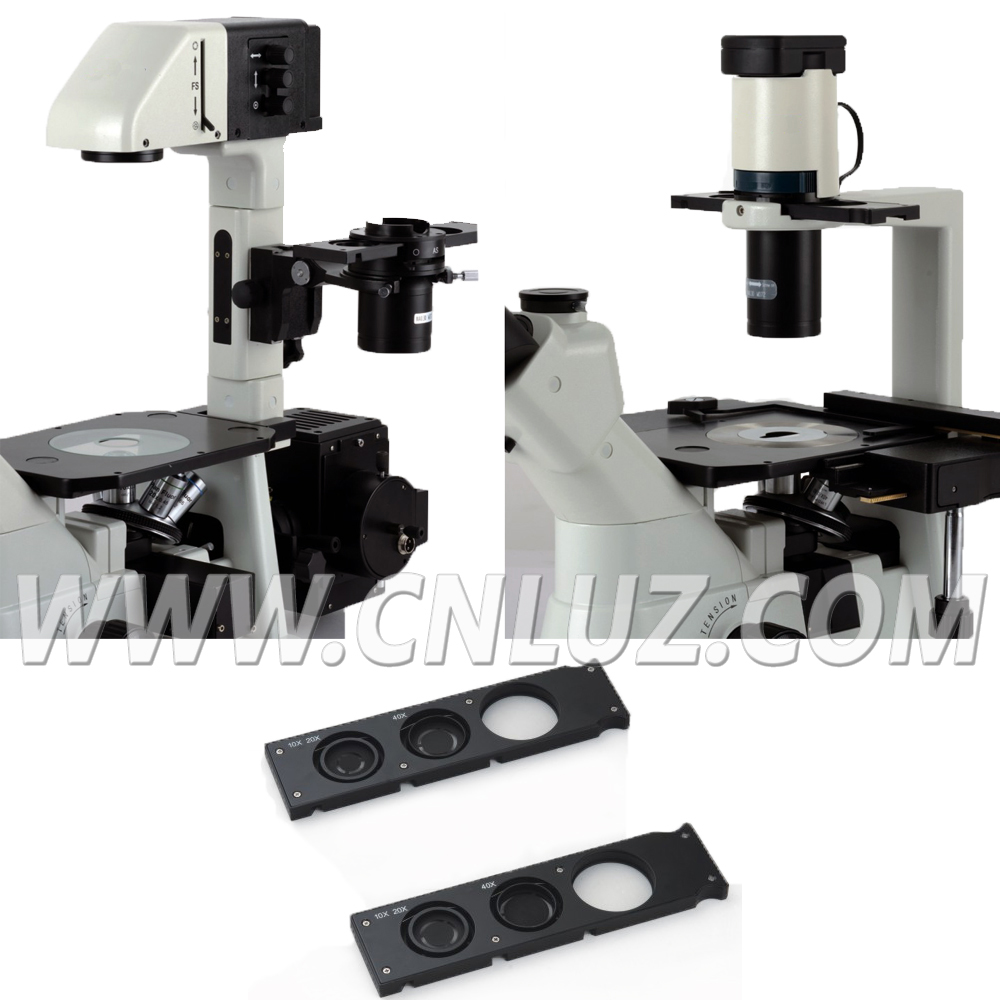

Phase Contrast
Phase Contrast Plug-board for 10x-40x, Center Adjustable
Centering Telescope Dia. 30mm
Filter Dia.45mm Green Interference Filter
Dia.45mm Color Temperature Change Filter
Illumination Critical Illumination, With Iris Aperture, Halogen 6V30W, Pre-centered, Intensity Adjustable
Power Wide Voltage 90-240V
