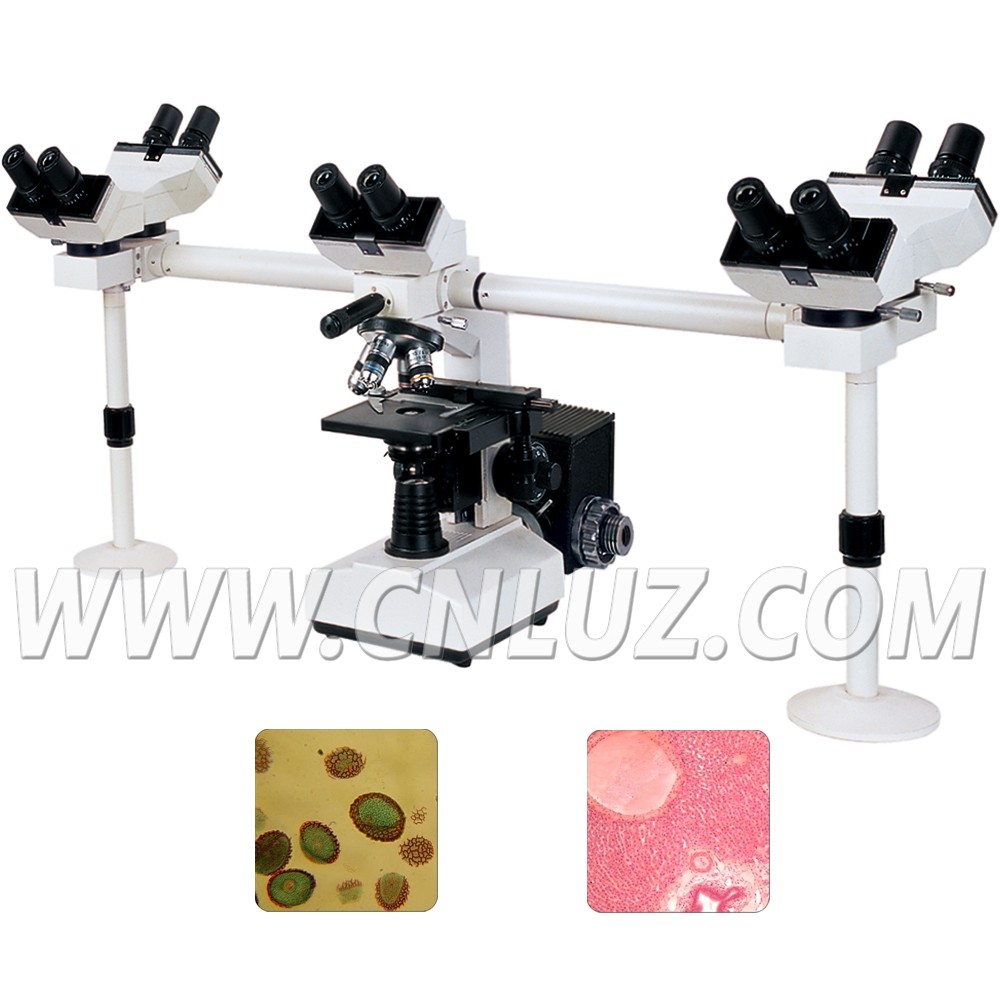

Multi-Viewing, 5 Position！
|
Specification
|
MBM.003062
|
|
Head
|
5 pcs Sliding Binocular Head, 30°Inclined, Interpupilary Distance 55-75mm
|
|
Eyepiece
|
WF10X, 10 pcs |
|
Objective
|
Achromatic Objectives 4×
|
|
Achromatic Objectives 10×
|
|
|
Achromatic Objectives 40×(s)
|
|
|
Achromatic Objectives 100×(s,oil)
|
|
|
Nosepiece
|
Quadruple Revolving Nosepiece
|
|
Focusing
|
Coaxial Coarse & Fine Focusing Knobs, Fine division 0.002mm, Coase Stroke 37.7mm Per Rotation, Ffine Stroke 0.2mm Per Rotation, Moving Range 28mm
|
|
Stage
|
Double Layer Mechanical Stage 140mm x 140mm, Travel Range 75x50mm
|
|
Condenser
|
Abbe N.A.=1.25 with Iris Diaphragm & Filter
|
|
Indicator
|
Demo. Indicator with Illuminator of 6V/3W |
|
Illumination
|
Base with Built-in Halogen Lamp 24V/100W , with Continue Intensity Control, 110V/220V
|
