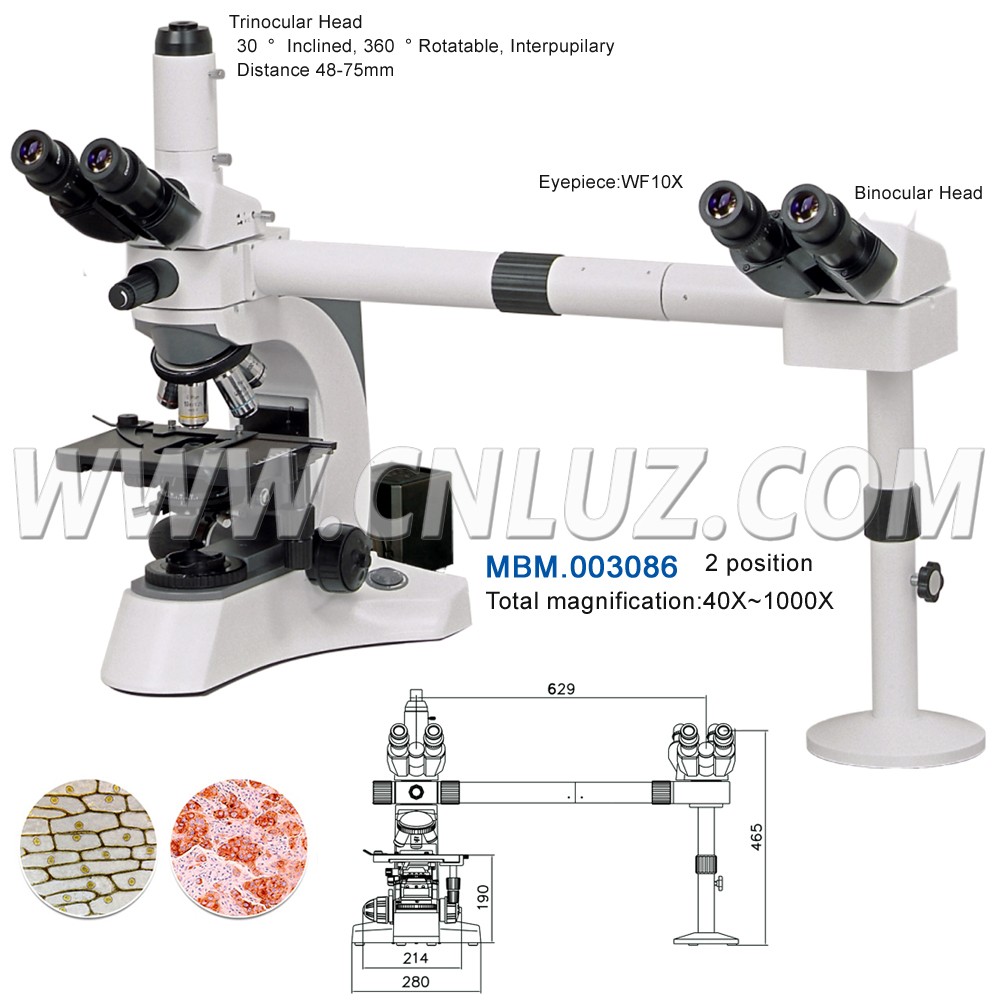

MBM.003086Mutiple Viewing,2 Position,40X~1000X
  • /usr/575/images/Products/Y/57518377.jpg
  •
  •
  •
  • lnfinite Optical System,40X~1000X
  • 2 Position:1 pcs Trinocular Head,1 pcs Brinocular Head
Specification
MBM.003086
Optical System
lnfinite Optical System
Head
1 pcs Trinocular Head, 30°Inclined, 360° Rotatable, Interpupilary Distance 48-75mm
1 pcs Brinocular Head, 30°Inclined, 360° Rotatable, Interpupilary Distance 48-75mm
Eyepiece

WF10X, 4 pcs

Objective
Infinity Plan Achromatic 4x
Infinity Plan Achromatic 10x
Infinity Plan Achromatic 40x(s)
Infinity Plan Achromatic 100x(s, oil)
Nosepiece
Reversed Quadruple Revolving Nosepiece
Focusing
Coaxial Coarse & Fine Focusing Knobs, Fine division 0.002mm
Stage
Double Layers Mechanical Stage 185x142mm, Moving Range 75x55mm
Condenser
Swing Abbe Condenser N.A.0.9/0.25
Pointer Green LED Pointer, Brightness Adjustable
Illumination
External Kohler Illumination, Halogen Lamp 12V50W

Item
Optional Accessories
Adapter
0.5x C-Mount
1.0x C-Mount
