Optical System
|
lnfinite Optical System
|
|
|

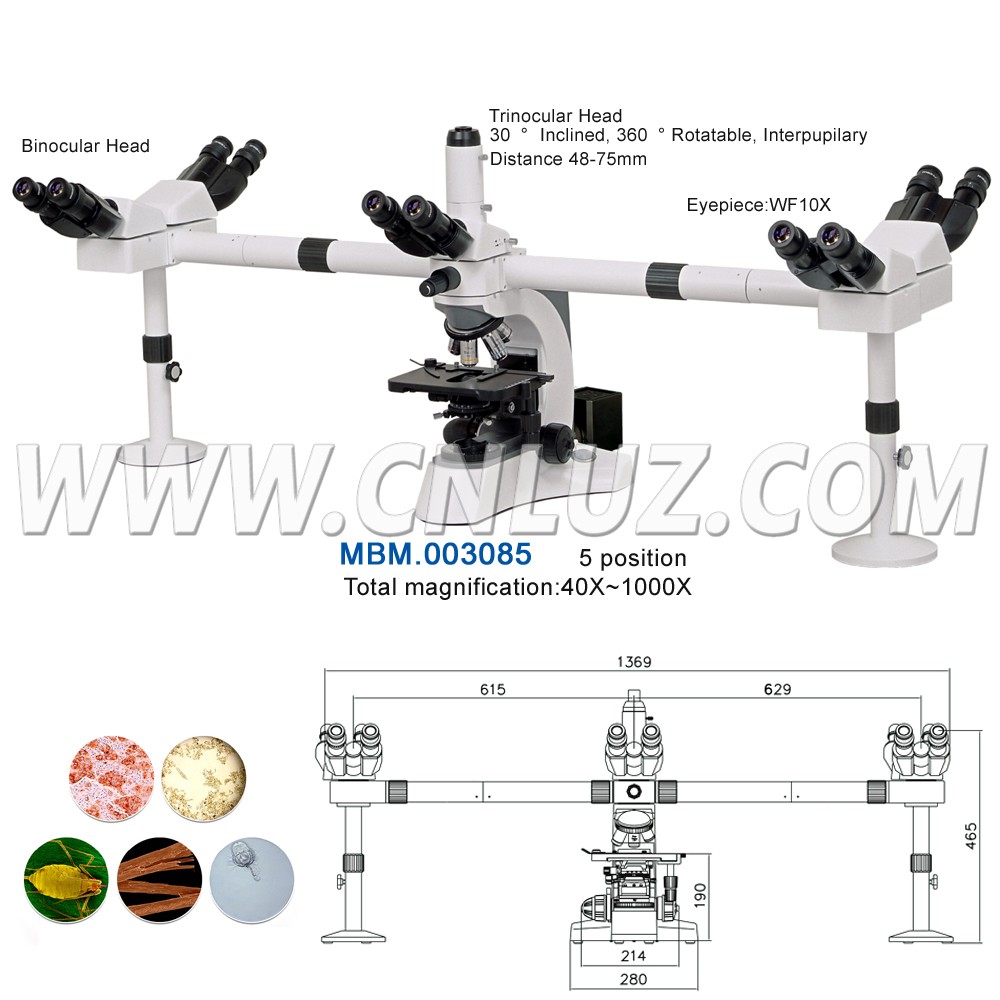

1 pcs Trinocular Head, 30°Inclined, 360° Rotatable, Interpupilary Distance 48-75mm
4 pcs Brinocular Head, 30°Inclined, 360° Rotatable, Interpupilary Distance 48-75mm
|
|
Eyepiece
|
WF10X, 10 pcs
|
|
|
Infinity Plan Achromatic 4x |
| Infinity Plan Achromatic 10x |
| Infinity Plan Achromatic 40x(s) |
| Infinity Plan Achromatic 100x(s, oil) |
|
|
Reversed Quadruple Revolving Nosepiece |
|
Focusing
|
Coaxial Coarse & Fine Focusing Knobs, Fine division 0.002mm |
|
|
Double Layers Mechanical Stage 185x142mm, Moving Range 75x55mm
|
|
Condenser
|
Swing Abbe Condenser N.A.0.9/0.25
|
| Pointer |
Green LED Pointer, Brightness Adjustable |
|
Illumination
|
External Kohler Illumination, Halogen Lamp 12V50W |
