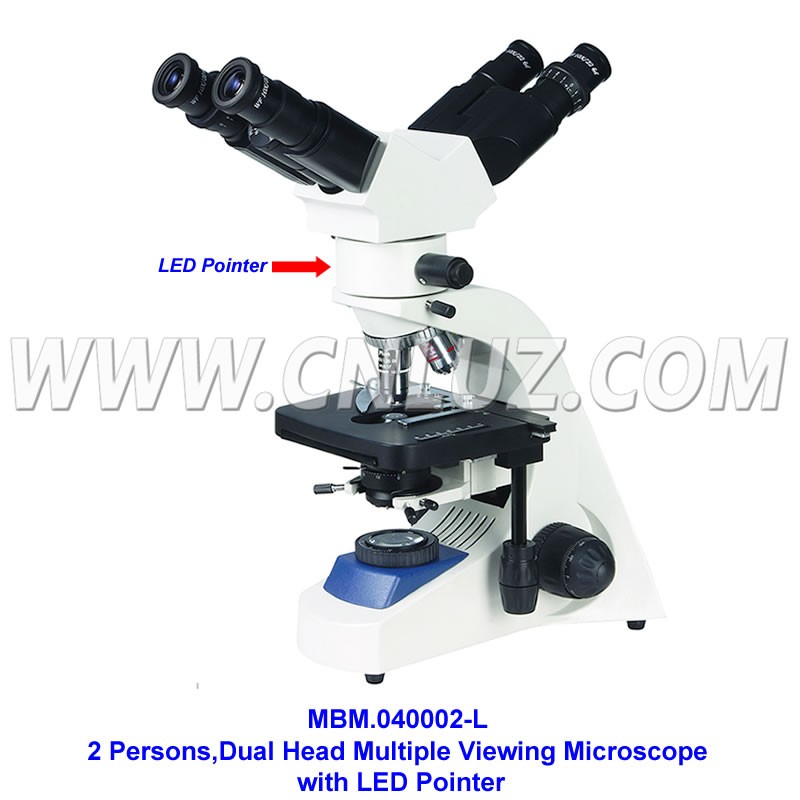

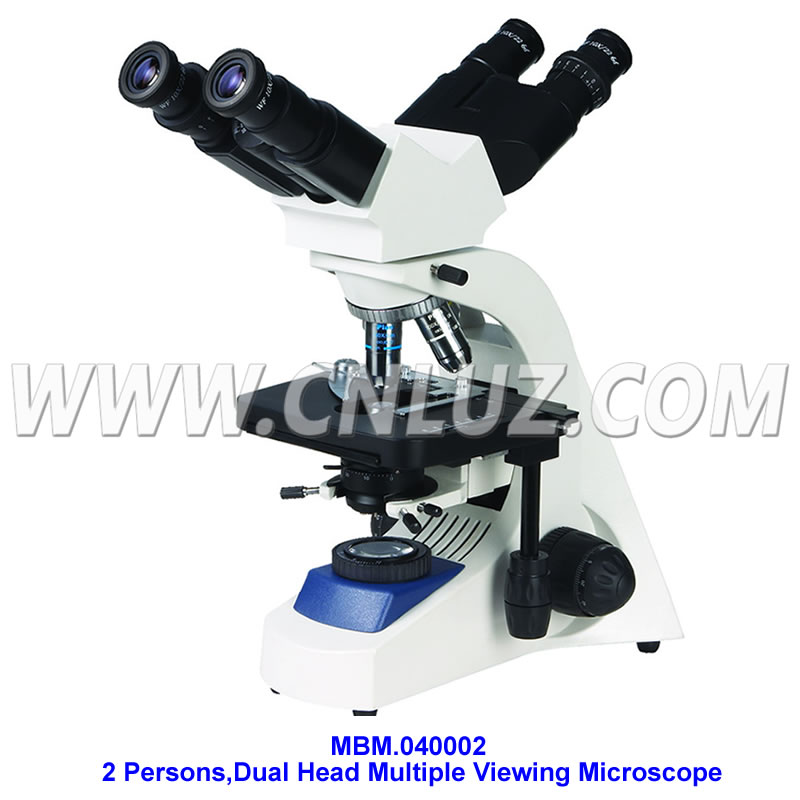

MBM.040002 2 Persons,Dual Head Multiple Viewing Mcirscope
  • /usr/575/images/Products/Y/57520661.jpg
  • /usr/575/Picture/Y/11649.jpg
  •
  •

MBM.040002 Two-Person Multiple Viewing Microscope with Dual Head is designed for two people to observe one specimen together at the same time. It has infinity imaging system, high light illumination system and provide sharp & clear image. Particularly, it is suitable for discussion application in Clinic, Research and Teaching.

Specification
MBM.040002
MBM.040002-L
Optical System Infinity Optical System
Head
 Dual Compensation Free Binocular Head, Interpupilary Distance 55-75mm
Indicator
No
With LED Pointer
Eyepiece
Wide field eyepiece WF10x/22mm
Objective
Achromatic Objective 4x
Achromatic Objective 10x
Achromatic Objective 40x
Achromatic Objective 100x
Nosepiece
Backward quadruple nosepiece
Focusing
 Coaxial Coarse & Fine Focusing Knobs,Scale:0.002mm
Stage
Double Layer Mechanical Stage, Size 180x150mm, Moving Range 75x50mm
Condenser
 Abbe Condenser N.A.=1.25, with Iris Diaphragm and Filter
Illumination
 Halogen Lamp 6V 20W, Continue Intensity Control,Kohler Illumination

Item
MBM.040002 Optional Accessories
Head Dual Compensation Free Binocular Head, Interpupilary Distance 48-75mm
Eyepiece
 Wide Field Eyepiece WF16x
Wide Field Eyepiece WF20x
Objective

 Plan Achromatic Objective 4x
Plan Achromatic Objective 10x
Plan Achromatic Objective 20x
Plan Achromatic Objective 40x
Plan Achromatic Objective 60x
Plan Achromatic Objective 100x
Photo Adapter 0.5×
0.57×
0.75×
