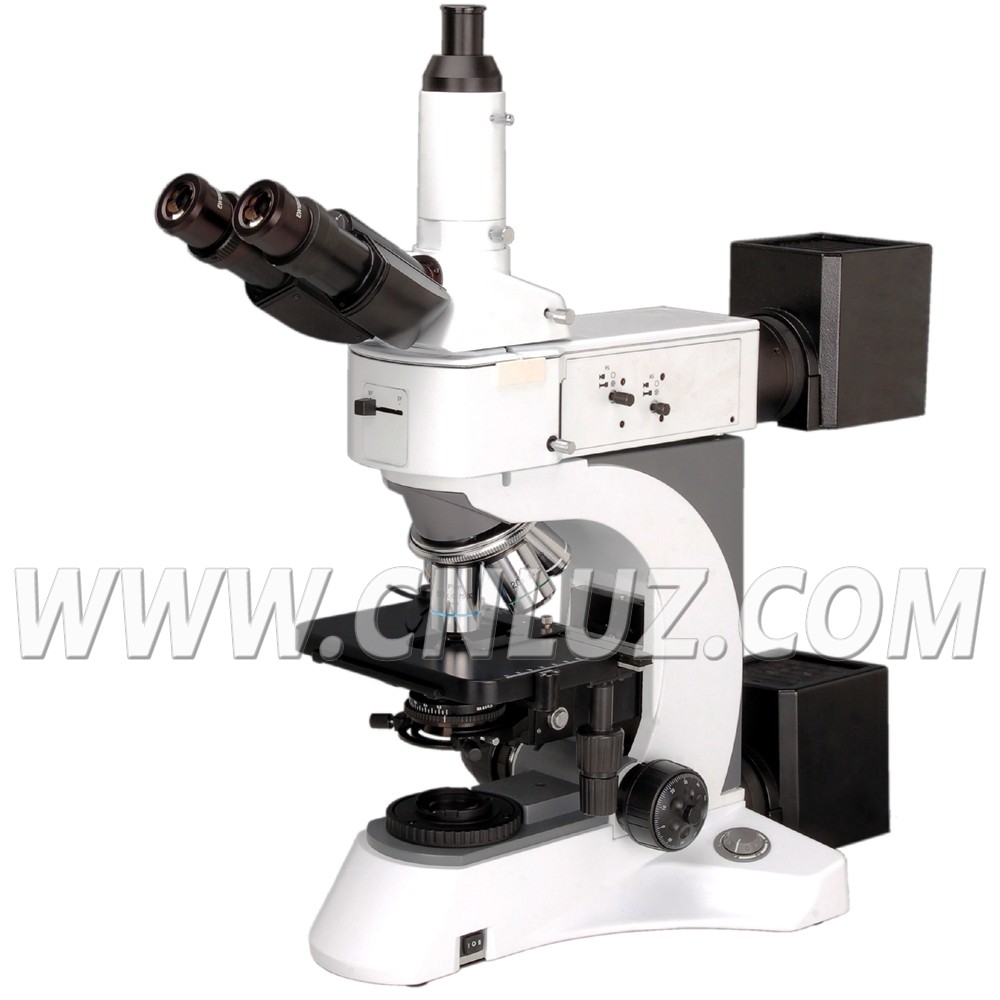

MMU.003041Upright Metallurgical Microscope
  • /usr/575/images/Products/Y/57517751.jpg
  • /usr/575/Picture/Y/10768.jpg
  • /usr/575/Picture/Y/10769.jpg
  • /usr/575/Picture/Y/10770.jpg
  • Ideal instrument for industry inspection and science research.

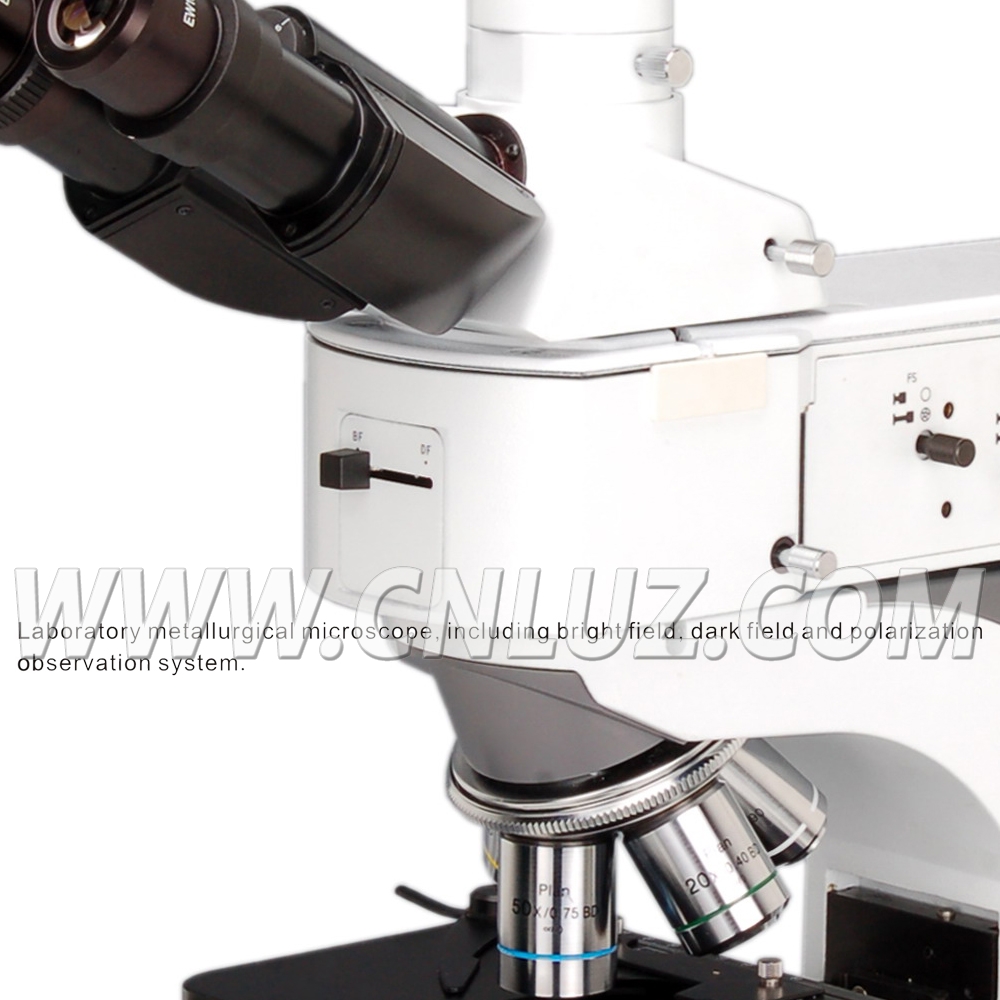

  • Laboratory metallurgical microscope, including bright field, dark field and polarization observation system.

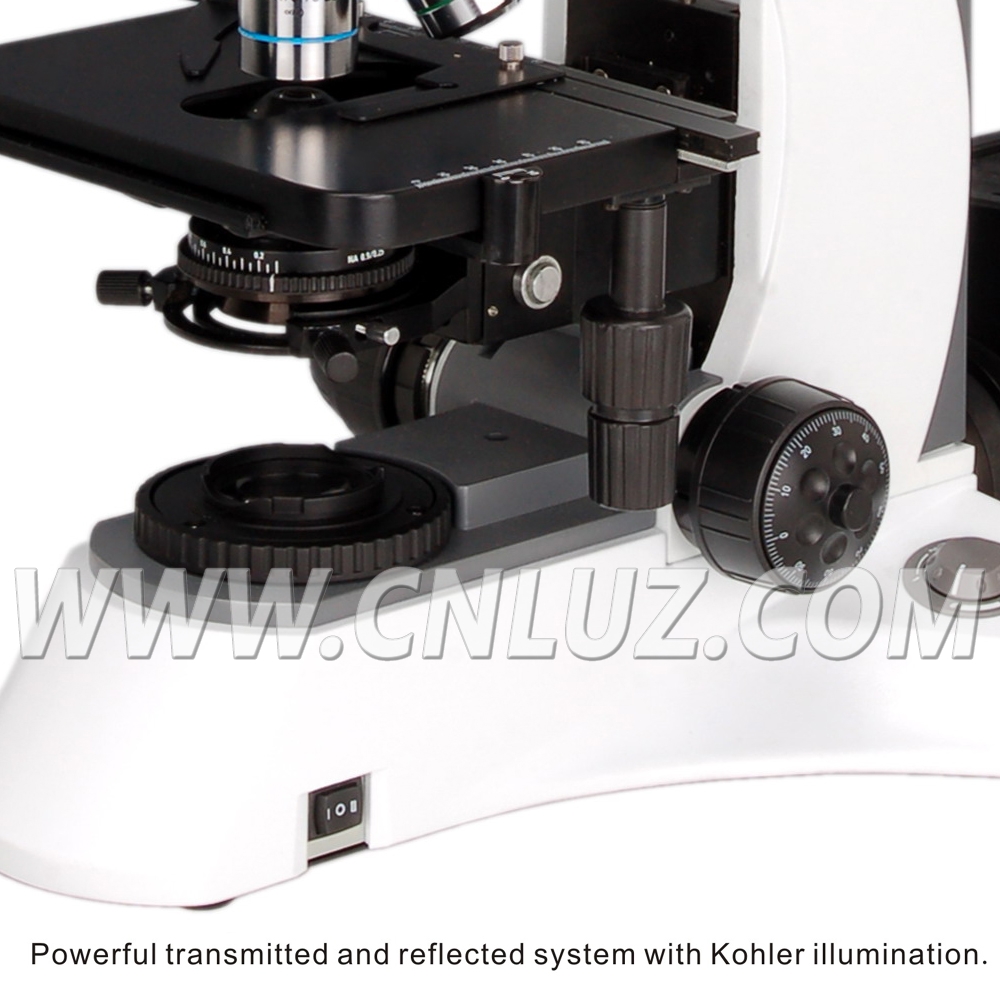

  • Powerful transmitted and reflected system with Kohler illumination.
Specification
MMU.003041-A
MMU.003041-B
Head
Seidentopf Trinocular Head Inclined at 30°, Interpupillary 48-75mm
Optical System
Infinity Optical System, Bright Field/Dark Field, Polarizing
Eyepiece

Extra Wide Field Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm

Objective
Infinity Plan Achromatic Objectives 5x/ 0.12/ ∞/ - (BF)
Infinity Plan Achromatic Objectives 10x/ 0.25/ ∞/ - (BF/DF)
Infinity Plan Achromatic Objectives 20x/ 0.4/ ∞/0 (BF/DF)
Infinity Plan Achromatic Objectives 50x/ 0.75/ ∞/0 (BF)
Infinity Plan Achromatic Objectives100x/0.90/∞/0 (BF)

Infinity Plan Achromatic Objectives 40x/0.65/∞/0.17

Infinity Plan Achromatic Objectives 100x/1.25/∞/0.17
Nosepiece
Backward Quintuple Nosepiece
Focusing
Coaxial Coarse & Fine Adjustment, Fine Focusing Precision <1um,
With Safty Stop, With Tension Adjustment
Stage
Maximum Sample Height 30mm
Double Layer Mechanical Stage 186*138mm, Moving Range 74*50mm, Including:Specimen Preparation Plate without hole in the center
Double Layer Mechanical Stage 186*138mm, Moving Range 74*50mm, Including: Slide Glass
Reflect Illumination
24V 100W Halogen Light, Brightness Adjustable
Kohler Illumination With Aspherical Condenser
Blue, Green, Yellow Filter, Gound Glass
Transmit Illumination

Swing-Out Condenser N.A.0.9/0.25
24V 100W Halogen Light With Aspherical Condenser
Blue Filter

Item
Optional Accessories
Objective
Infinity Plan Achromatic Objectives 40x/0.6/∞/0 (BF/DF)
Infinity Plan Achromatic Objectives 50x/0.75/∞/0 (BF/DF)
Polarizing
Polarizer & Analyzer, Intergrate Board For Polarizer & Analyzer | For Reflect Illumination
Filter
Netural Filter ND25
Netural Filter ND 6
Adapter
Photo Adapter, For Nikon or Canon SLR Camera
C-Mount 1.0x
C-Mount 0.5x
Other
Specimen Presser
