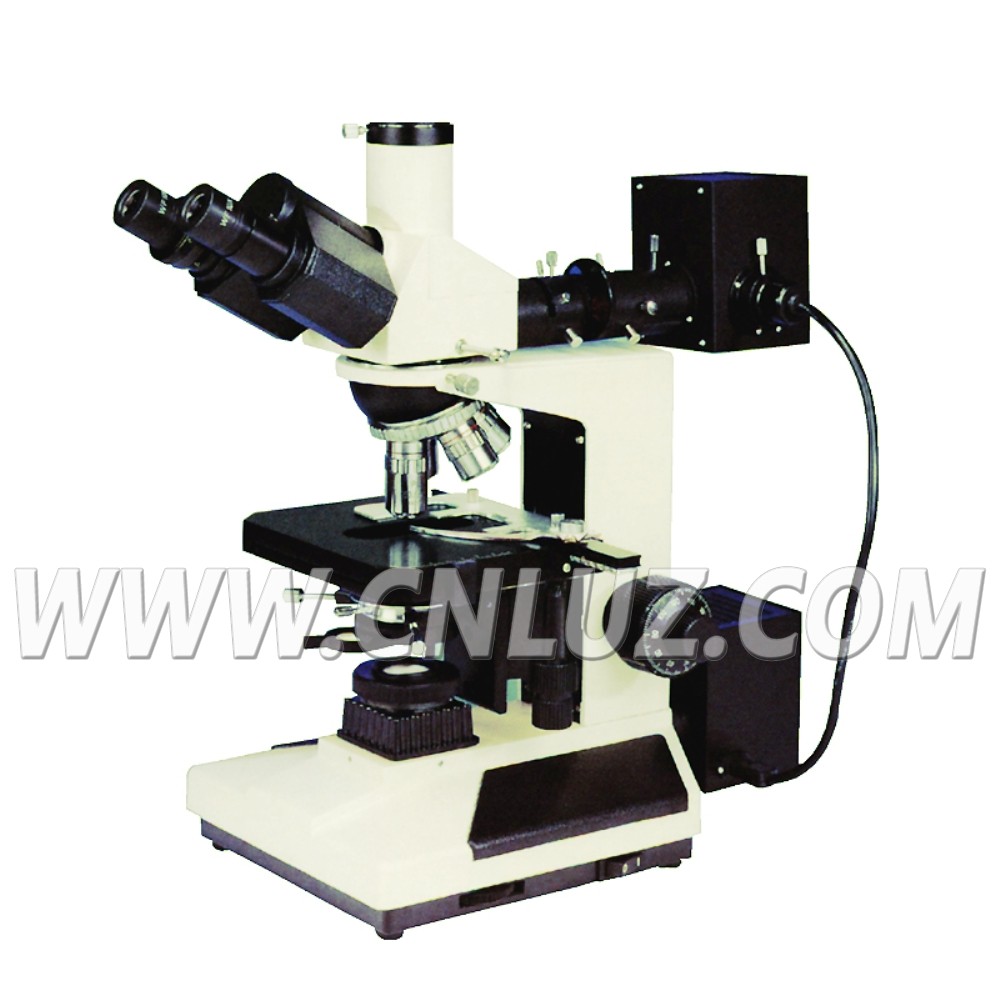

MMU.001009Upright Metallurgical Microscope
  • /usr/575/images/Products/Y/57517782.jpg
  • /usr/575/Picture/Y/10828.jpg
  • /usr/575/Picture/Y/10829.jpg
  •

This metallurgical microscope is used for identification and analysis of the structures in different metals and alloys, it is the important instrument for researching metallography in metal physics.

  • Plan achromatic objectives with long working distance (no cover glass)
  • Coaxial coarse/fine focusing system with tension adjustable and up stop
  • 6V 20W halogen lamp with brightness control
  • Trinocular head can switch between normal observation and polarizing observation
Specification
MMU.001009-43
MMU.001009-53
Eyepiece
WF10X(Φ18mm)
Head
Trinocular, inclination of 30°, analyzer with field diaphragm to switch
Objective
Plan long working distance (no cover glass) PL5x/0.12
 Plan long working distance (no cover glass) PL5x/0.12
Plan long working distance (no cover glass) PLL10x/0.25
 Plan long working distance (no cover glass) PLL10x/0.25
  Plan long working distance (no cover glass) PLL20x/0.40
Plan long working distance (no cover glass) PLL40x/0.60
Plan long working distance (no cover glass) PLL40x/0.60
Plan long working distance (no cover glass) PL 60x/0.75 (Springl)
Plan long working distance (no cover glass) PL 60x/0.75 (Springl)
Focus System
 Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2um
Nosepiece
Quadruple back ball bearing backward
Quintuple back ball bearing backward
Stage
Double layer mechanical, size 185x140mm, moving range 75x40mm
Vertical Illumination
Vertical illumination with field diaphragm, aperture diaphragm and polaizer, (YBG) filter and frosted filter
6V 20W halogen lamp with brightness control
Vertical Illumination Unit
Abbe condenser N.A.1.25 Rack & pinion adjustable
(B,G) filter and frosted filter
Collector for halogen lamp
6V20W halogen lamp, adjustable control

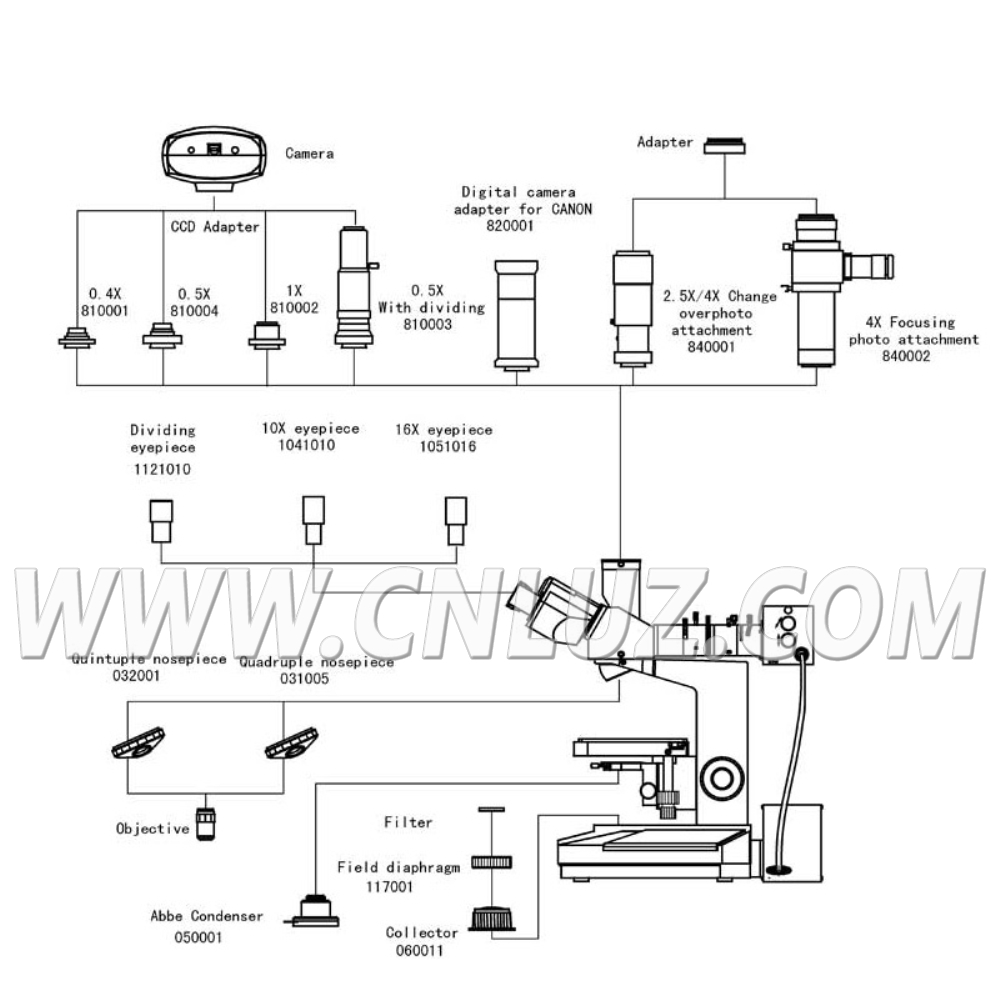

Item
Optional Accessories
Eyepiece
 Wide field WF16x/11mm
Divding 10x, 0.1mm/Div
Objective
 Plan long working distance (no cover glass) PLL50x/0.70
Plan long working distance (no cover glass) PLL80x/0.80
Plan long working distance (no cover glass) PLL100x/0.85(Spring)
Plan achromatic (no cover glass) PL100x/1.25
CCD adapter

 0.4x
0.5x
1x
0.5x with dividing 0.1mm/Div
Photo Adapter
2.5x/4x change over photograph attachment with 10x viewing eypiece
4x Focusing photograph attachment
MD adapter
PK adapter
Filter Yellow filter
DC Adapter
Canon ditigal camera adapter (A610, A620, A630, A640)
