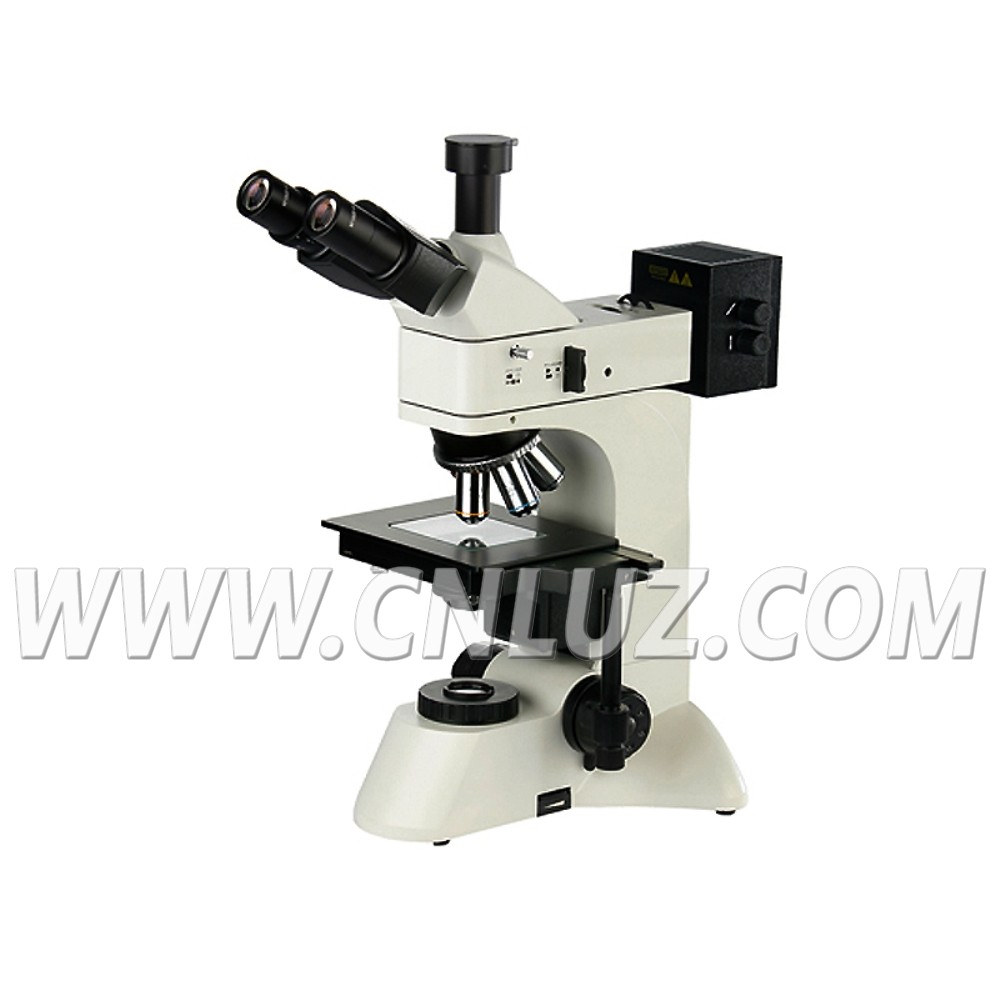

MMU.001007Upright Metallurgical Microscope
  • /usr/575/images/Products/Y/57517784.jpg
  • /usr/575/Picture/Y/10832.jpg
  • /usr/575/Picture/Y/10833.jpg
  •
  • MMU.001007-A with Reflected Illumination
  • MMU.001007-B with Reflected & Transmitted Illumination
Specification
MMU.001007-A
MMU.001007-B
Eyepiece
Wide field WF10X(Φ22mm)
Head
Trinocular, Inclination of 30 degree (Analyzer with field diaphragm to switch)
Infinity Plan Achromatic Objectives
Long working distance 26.1mm (no cover glass) PL L5X/0.12
Long working distance 20.2mm (no cover glass) PL L10X/0.25
Long working distance 3.98mm (no cover glass) PL L40X/0.60 (spring)
Long working distance 3.18mm (no cover glass) PL L60X/0.75 (spring)
Focus System
Coaxial coarse/fine focus system, with tensional adjustable and limit stopper, minimum division of fine focusing: 2 μm
Nosepiece
Quintuple (Backward ball bearing inner locating)
Stage Double layer mechanical (Size:210mmX140mm,movingrange:75mmX50mm)
Reflected Illumination
With field diaphragm, aperture diaphragm, polarizer, Y,B,G filter, frosted filter
6V 30w, halogen lamp, brightness control.
Transmitted Illumination

Abbe condenser NA.1.25 Rack & pinion adjustable

Blue filter and frosted filter

Collector for illumination with halogen lamp (With field diaphragm )

6V 20w halogen lamp, brightness control.

Item

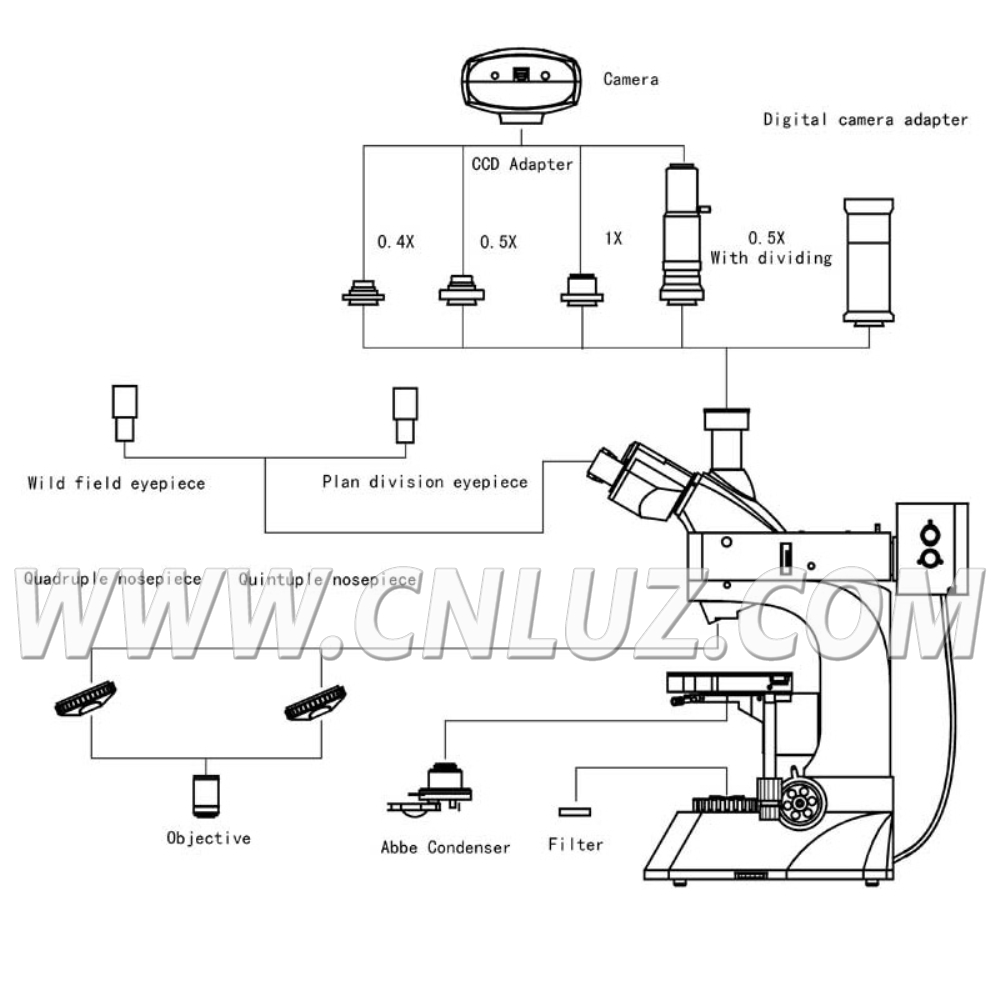

Optional Accessories
Eyepiece
Dividing eyepiece 10X(Φ22mm) 0.10mm/Div
Infinity Plan Achromatic Objectives

Long working distance 8.80mm (no cover glass) PL L 20X/0.40
Long working distance 3.68mm (no cover glass) PL L 50X/0.70
Long working distance 1.25mm (no cover glass) PL L 80X/0.80
Long working distance 0.4mm (no cover glass) PL L 100X/0.85
CCD Adapter
0.4X
0.5X
1X
0.5X with dividing 0.1mm/Div
Digital Camera Adapter
CANON EF digital SLR camera adapter
Filter
Green filter
Yellow filter
