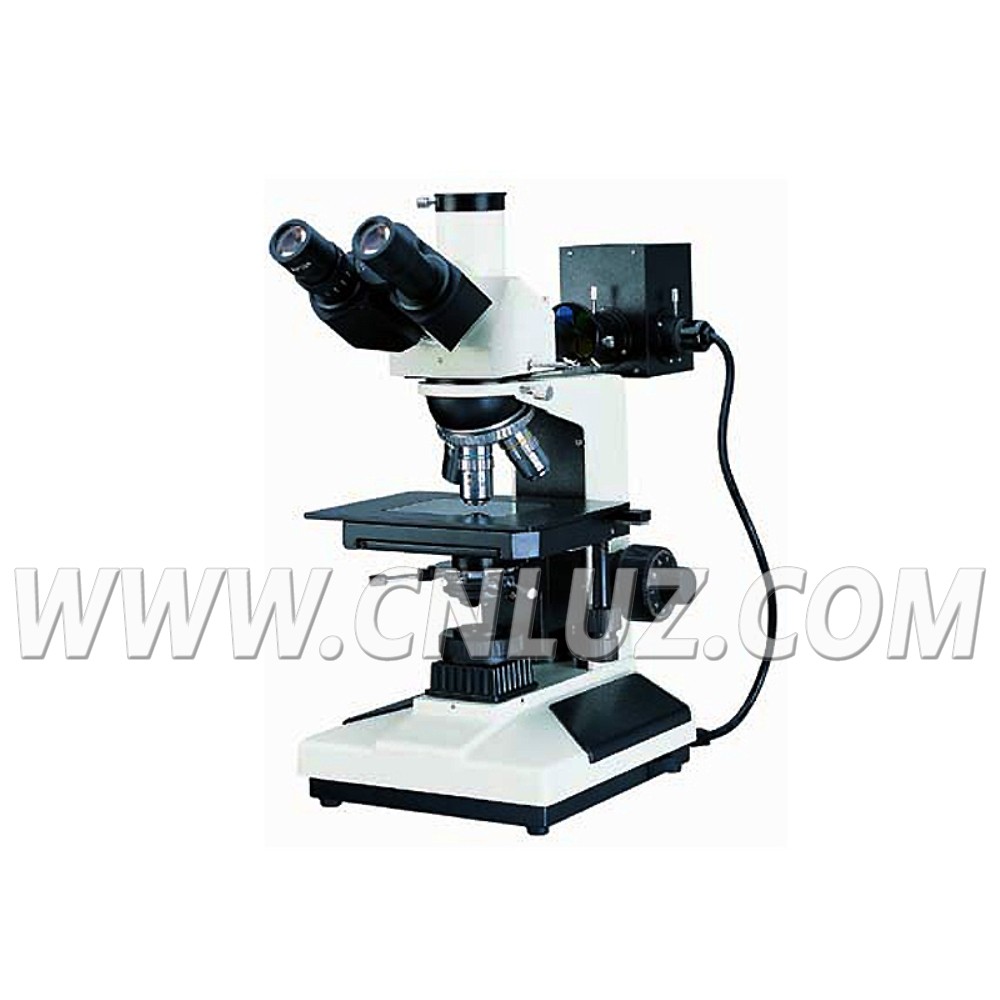

MMU.001006Upright Metallurgical Microscope

This is deal instruments in research work in biology, metallography, mineralogy,precision engineering, electronics and etc.

Plan achromatic objectives with long working distance (no cover glass)
Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
With vertical illuminator and transmitted illuminator, can observe surfaces of non-transparent object or transparent object.
6V 20W halogen lamp, brightness control.
Trinocular head can switch to observe normally or to observe the Polarize, can send 100% of light to the binocular eyepieces or to the top port.

Specification	MMU.001006-43	MMU.001006-53
Eyepiece	Wide field eypieceWF10X(18mm)
Head	Trinocular, Inclination of 30°(Analyzer with field diaphragm to switch)
Objective	Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12, working distance 18.3mm	Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12, working distance 18.3mm
	Plan achromatic objectives with long working distance (no cover glass) PLL10X/0.25 , working distance 8.9mm	Plan achromatic objectives with long working distance (no cover glass) PLL10X/0.25 , working distance 8.9mm
		Plan achromatic objectives with long working distance (no cover glass) PLL20X/0.40, working distance 8.7mm
	Plan achromatic objectives with long working distance (no cover glass) PLL40X/0.60, working distance 3.7mm	Plan achromatic objectives with long working distance (no cover glass) PLL40X/0.60, working distance 3.7mm
	Plan achromatic objectives with long working distance (no cover glass) PLL60X/0.75(Spring), working distance 1.34mm	Plan achromatic objectives with long working distance (no cover glass) PLL60X/0.75(Spring), working distance 1.34mm
Focus System	Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2um
Nosepiece	Quadruple(Backward ball bearing inner locating)	Quintuple (Backward ball bearing inner locating)
Stage	Double layer mechanical,size:185x140mm,moving range 75x50mm
Reflected Illumination Unit	Vertical illumination with field diaphragm, aperture diaphragm and polaizer, (YBG) filter and frosted filter
	6V 20W halogen lamp with brightness control
Transmitted Illumination Unit	Abbe condenser N.A.1.25 Rack & pinion adjustable
	(B,G) filter and frosted filter
	Collector for halogen lamp
	6V20W halogen lamp, adjustable control

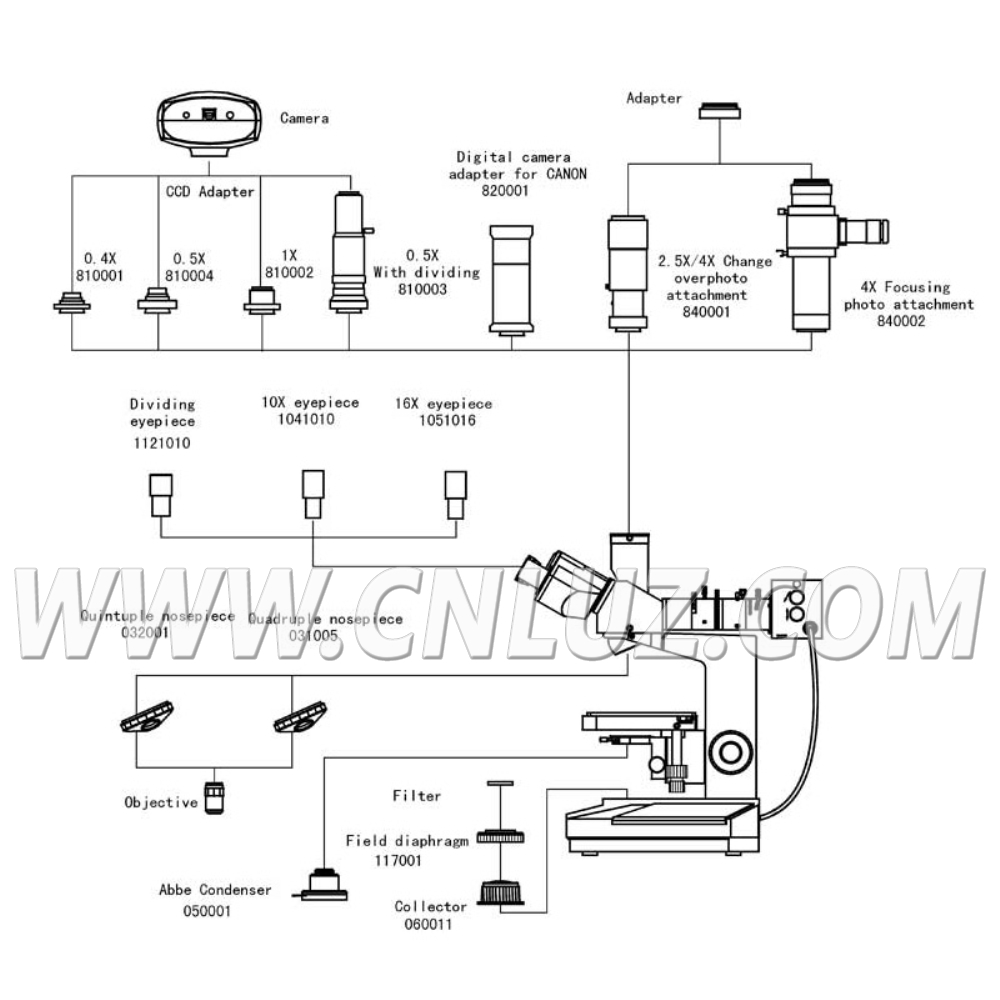

Item	Optional Accessories
Eyepiece	Wide field WF16X(Φ11mm)
Eyepiece	Dividing 10X(Φ18mm) 0.1mm/Div
Objective	Plan achromatic objectives with long working distance (no cover glass) PLL 50X/0.70, Working distance:2.02mm
	Plan achromatic objectives with long working distance (no cover glass) PLL 80X/0.80 Working distance:0.96mm
	Plan achromatic objectives with long working distance (no cover glass) PLL 100X/0.85 (Spring) Working distance:0.4mm
	Plan achromatic objectives (no cover glass) PL 100X/1.25 (Spring, oil) Working distance:0.3mm
CCD Adapter	0.4X
	0.5X
	1X
	0.5X with dividing 0.1mm/Div
Photo Adapter	2.5X/4X Change over photograph attachment with 10X viewing eyepiece
	4X Focusing photograph attachment
	MD Adapter
	PK Adapter
DC Adapter	Digital Camera Adapter for CANON(A610,A620,A630,A640)
Filter	Green filter
Filter	Yellow filter
