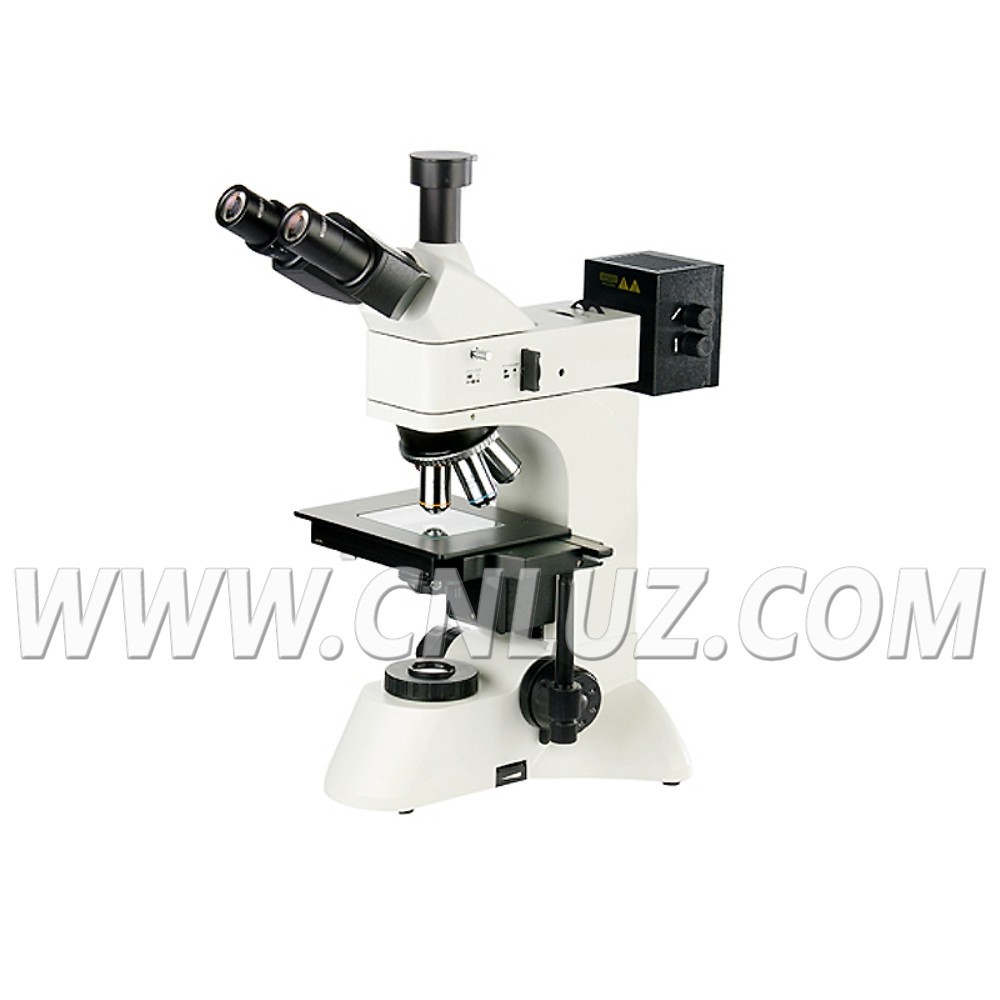

MMU.001002Upright Metallurgical Microscope
  • /usr/575/images/Products/Y/57517789.jpg

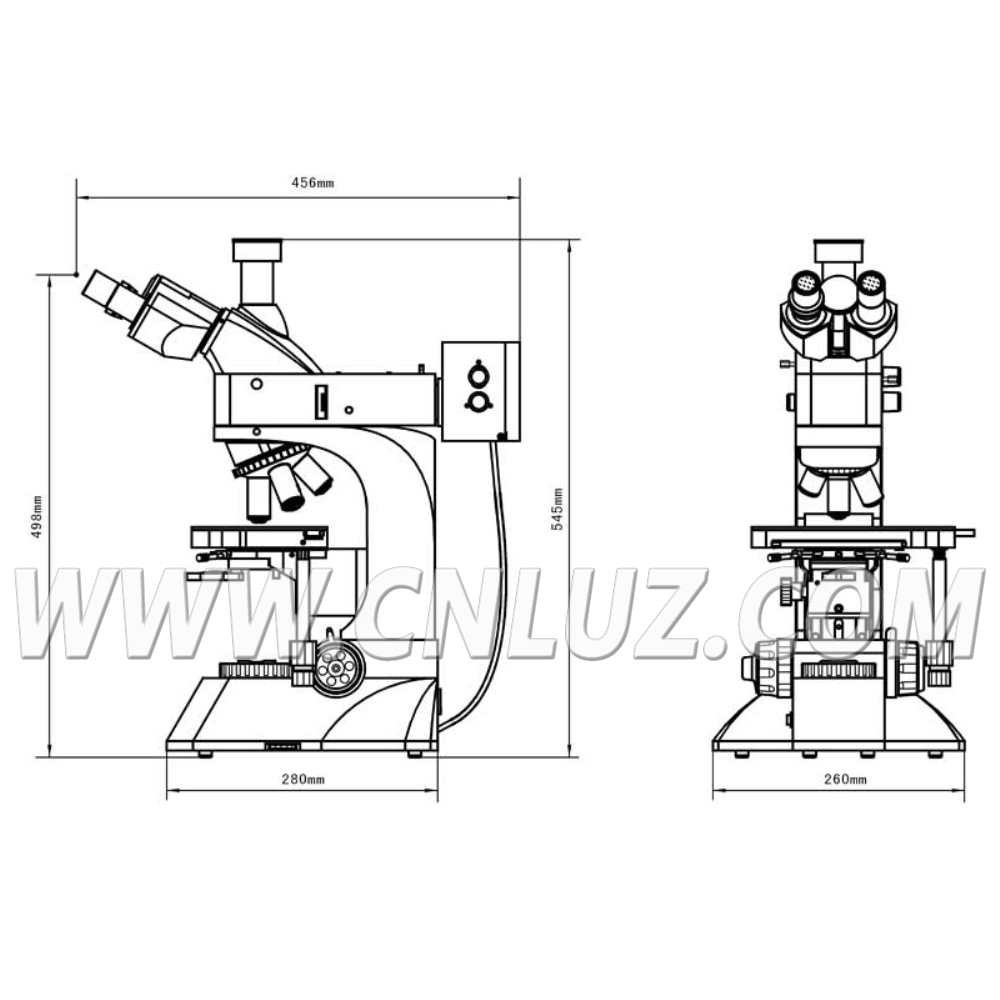

  • /usr/575/Picture/Y/10843.jpg
  • /usr/575/Picture/Y/10844.jpg
  •

MMU.001002 upright Bright/Dark field Transmitted/Reflected light metallurgical microscope, is a kind of multifunction industry inspecting microscope.
It is equipped with bright or dark field objectives, wide field eyepieces and integrated polarization observation device, the Kohler illuminator is used in the transmitted and reflected illuminating system, the whole field is clear and uniformity.
It is suitable for inspecting, such as semi-conductor silicon wafer, LCD floor plate, electrociucuit plate, solid powder and all kind of industry sample that translucent or opaque.
It is the ideal instruments in research work in biology, metallography, mineralogy, precision engineering, electronics, ets.

  • UIS optical system and modularization function design
  • Long working distance bright or dark field plan objectives (no cover glass), the fild is wide and clear
  • Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of the focusing: 2um
    Maximal movement of stage is about 30mm
  • Integrated polarization observation device, the polarizer can be circled 360 degree
  • The reflecting illuminator is 12V50W halogen lamp and the lamp box cover can be revolved, replacing lamp facility and safety.
  • The transmitted illuminator is 12V30W halogen lamp and adding radiator
  • Trinocular head can be observation for eyepieces and microphotography in 100% light flux, suits for the dark field microphotography.



Specification
MMU.001002
Eyepiece
WF10X(Φ22mm)
Head
Trinocular, inclination of 30°, built-in analyzer and swithching freely
Objective
Infinity plan bright/dark field, long working distance (no cover glass) PLL5x/0.12BD, W.D.9.70mm
Infinity plan bright/dark field, long working distance (no cover glass) PLL10x/0.25BD, W.D.9.3mm
Infinity plan bright/dark field, long working distance (no cover glass) PLL20x/0.40BD, W.D.7.2mm
Infinity plan bright/dark field, long working distance (no cover glass) PLL40x/0.60BD, W.D.3.0mm
Focus System
Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2um
Eyepieces Tube
Inclination angle is 45°and interpupillary distance is 53~75mm.
Nosepiece
Quintple( back ball bearing inner locating)
Stage
Double layer mechanical, size 210x140mm, moving range 75x50mm
Reflected Illumination
12V 50W halogen lamp with brightness control
Built-in field, aperture diaphragm, and (YBG ground glass) switching device, push-pull type polarizer
Transmited Illumination Unit
Abbe condenser N.A.=1.25, Rack & pinion adjustable
Blue filter and ground glass
Collector for illumination with halogen lamp (With filed diaphragm)
12V 30W, halogen lamp, adjustable brightness

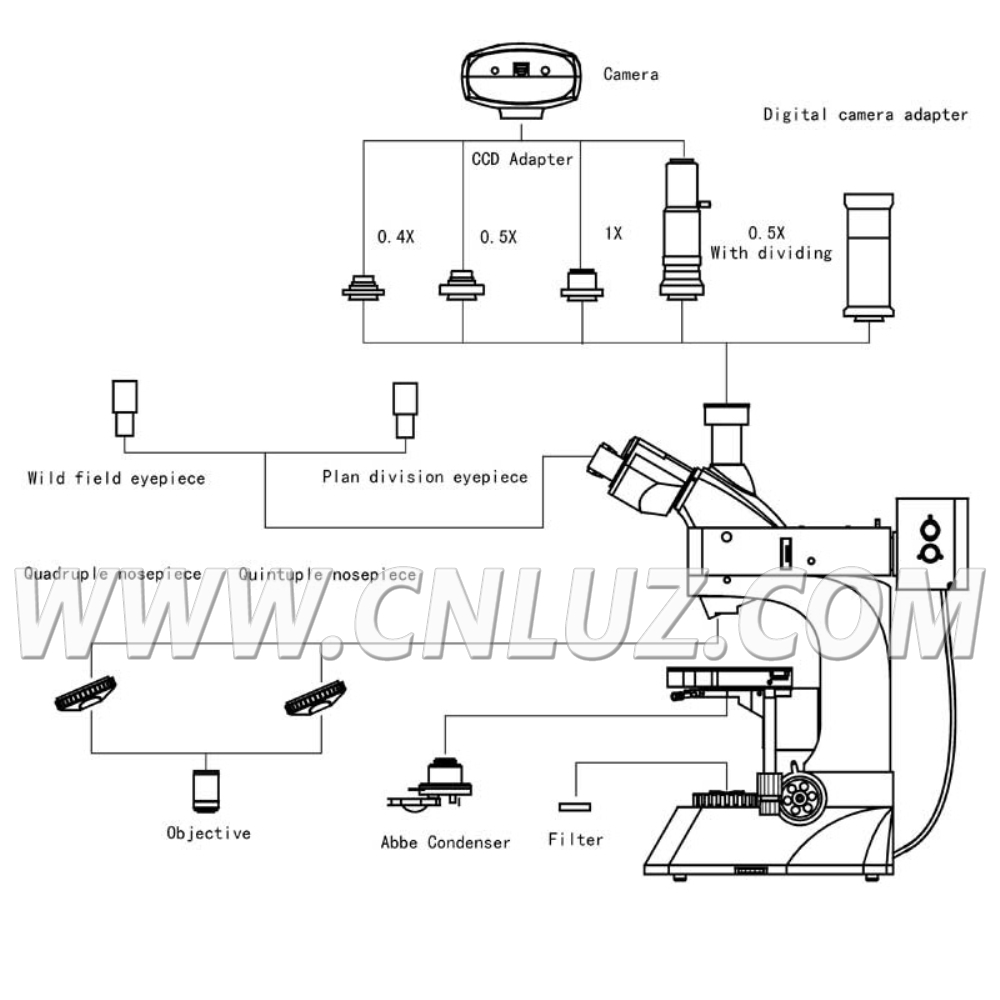

Item
Optional Accessories
Eyepiece
Divding 10x/18mm, 0.1mm/Div
Objective
Infinity plan bright/dark field, long working distance (no cover glass) PLL50x/0.70BD, W.D.2.5mm
Infinity plan bright/dark field, long working distance (no cover glass) PLL60x/0.70BD, W.D.1.9mm
Infinity plan bright/dark field, long working distance (no cover glass) PLL80x/0.70BD, W.D.1.25mm
Infinity plan bright/dark field, long working distance (no cover glass) PLL100x/0.70BD, W.D.0.22mm
CCD Adapter
0.4X
0.5X
1X
0.5X with dividing 0.1mm/Div
Filter
Green filter
Yellow filter
Digital Camera Adapter
CANON EF digital SLR camera adapter
