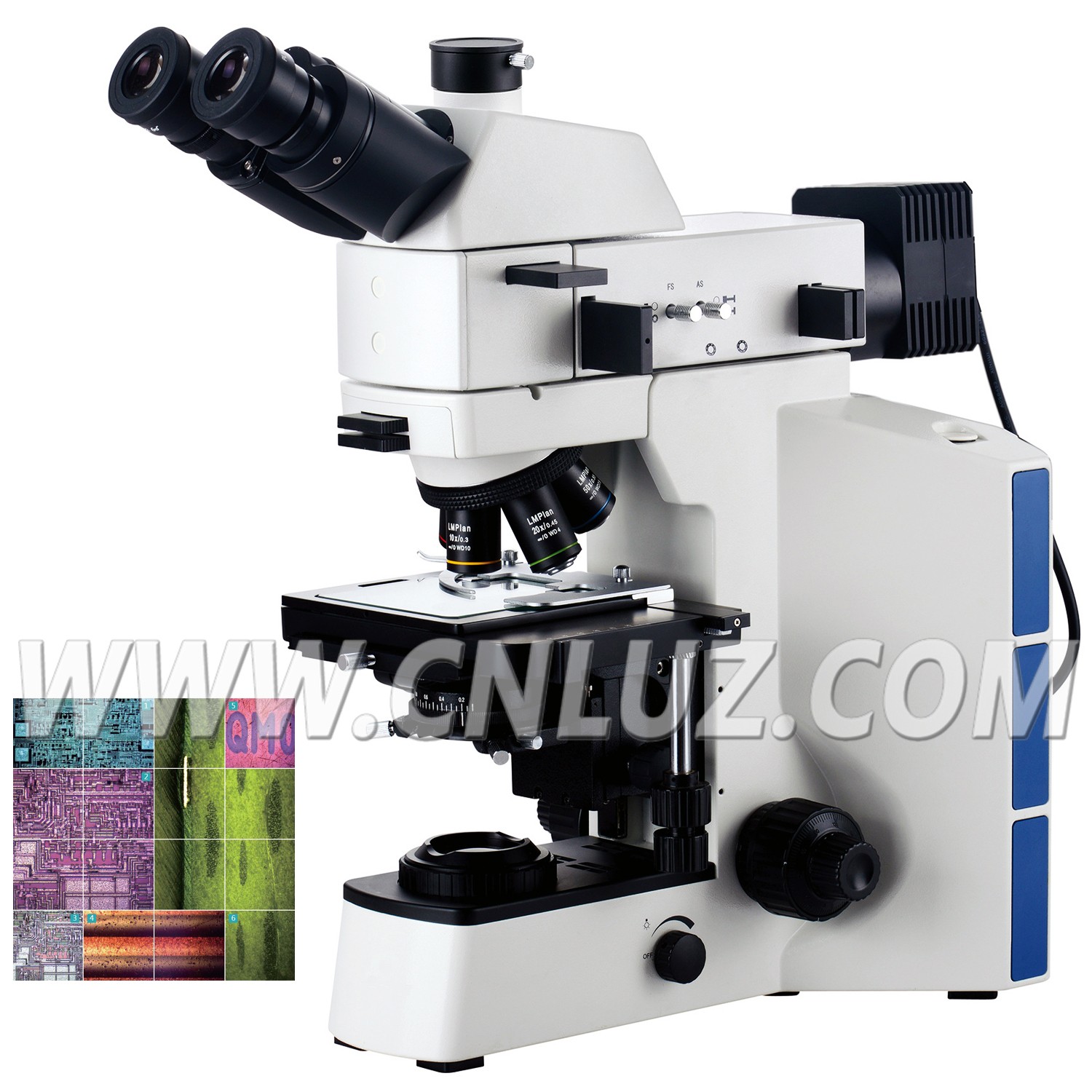

MMU.023067Trinocular/Binocular Upright Metallurgical, 50X~1000X

With excellent imaging performance and comfortable operating experience, MMU.023067 provides high cost-effective solution for metallographic analysis and industrial inspection.
With higher color correction and better coating design, new improved LMPlan series objectives enhance the image resolution and color reducibility.
With the most suitable viewing degree, 30°inclined head holds everyone in the best working state, less tension and fatigue. You can adjust the interpupillary distance to optimum according to the scale on viewing head.
Reflected illuminator with field/aperture diaphragm and oblique light device, as well as slots for polarizing kit and filters, adopts LED Koehler illumination system.
Comparing with other LED, single 5W LED with warm white light (3000-3300K) reduces the fatigue on observer's vision at the extreme.
With pull-rod devices for adjusting the centers of field and aperture diaphragm, stray light can be eliminated by expanding or shrink the illumination zone.
Simple polarizing observation is available with pluggable polarizer kit. More ideal images are here with different filters.

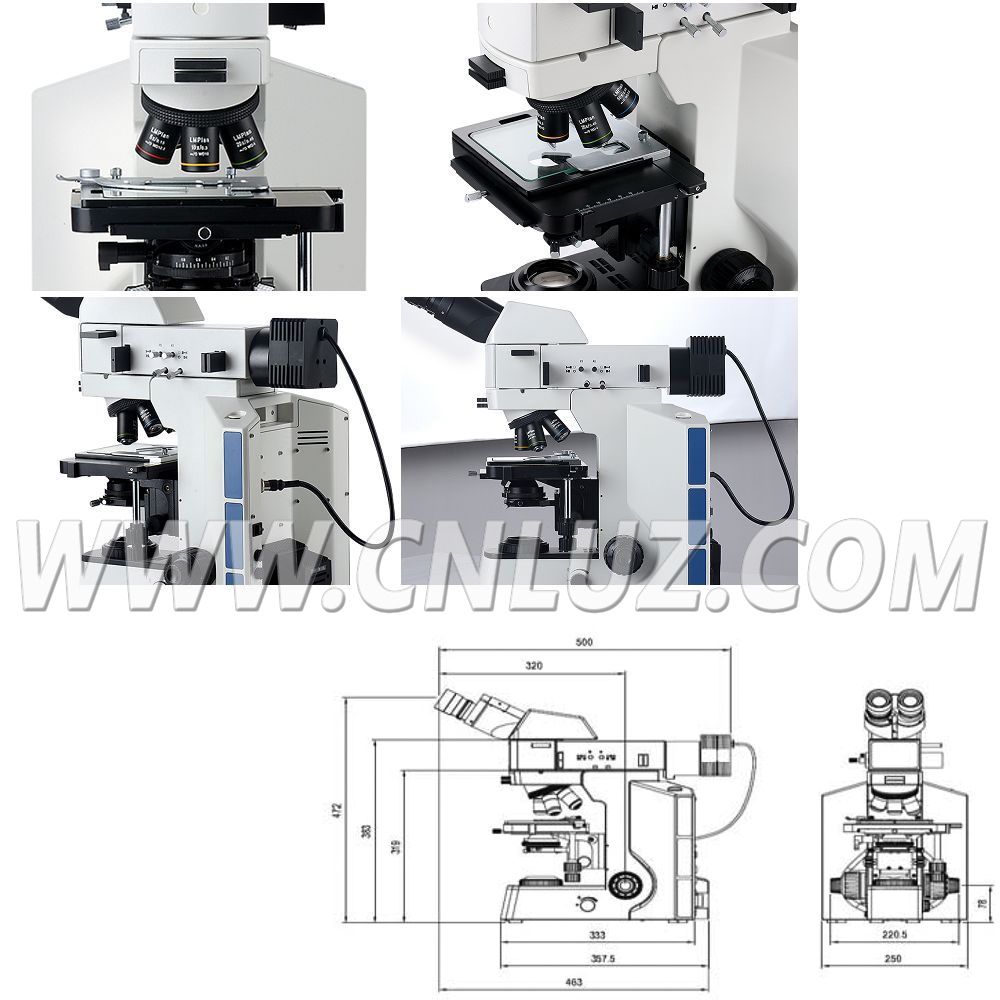

The highest sample can be tested is 28mm with transmitted & reflected frame while 78mm high sample is available with reflected frame, as the stage can be dropped 50mm by loosening the screw in the stage holder.
Up-limit device is helpful to avoid the damage caused by impact between sample and objective.
Using the outstanding condenser system,much more transmitted light can be through with bigger numerical aperture and stronger intensity.
Bright field, oblique light and simple polarizing are all available with MMU.023067. Brightfield image with high brightness and high resolution shows original color of samples. And oblique light is used to show 3D relief image.

Specification	MMU.023067-R	MMU.023067-T
Optical System	Infinity Color Corrected Optical System
Head	Compensation Trinocular Head 30° Inclined, 360° Rotatable, Interpupillary Distance 54-75mm, Diopter +/-5 Adjustable.	Compensation Trinocular Head 30° Inclined, 360° Rotatable, Interpupillary Distance 54-75mm, Splitting Ratio R:T=100:0 or 0:100, Diopter +/-5 Adjustable.
Eyepiece	High Eye-point Wide Field Plan Eyepiece PL10x22mm
Objective	LWD Infinity Plan Achromatic Metallurgical Objectives 5x
	LWD Infinity Plan Achromatic Metallurgical Objectives 10x
	LWD Infinity Plan Achromatic Metallurgical Objectives 20x
	LWD Infinity Plan Achromatic Metallurgical Objectives 50x
	LWD Infinity Plan Achromatic Metallurgical Objectives 100x
Nosepiece	Reversed quintuple nosepiece
Focusing	Reflected frame, coaxial focus system with tension adjustment and up-limited device, coarse range: 28mm, fine precision: 0.002mm. Stage can be adjusted up and down, 78mm high sample is available.	Transmitted & Reflected frame, coaxial focus system with tension adjustment and up-limited device, coarse range: 28mm, fine precision: 0.002mm. Stage can be adjusted up and down, 28mm high sample is available.
Stage	Metal plate for transmitted frame Up/Down Range Accept 78mm High Sample Double layer mechanical stage with X/Y coaxial adjustment, size: 175mmX145mm, moving range: 76mmX42mm.	Glass plate for transmitted & reflected frame Up/Down Range Accept 28mm High Sample Double layer mechanical stage with X/Y coaxial adjustment, size: 175mmX145mm, moving range: 76mmX42mm.
Condenser	No	N.A.0.9 swing-out achromatic condenser for transmitted frame, with center adjustable aperture iris diaphragm
Reflected illumination	Wide-range voltage 100V-240V_AC50/60Hz, reflected lamp-house with single 5W LED, warm color. Koehler illuminator with oblique light device, center adjustable field and aperture diaphragm
Transmitted illumination	NO Transmitted illumination	Wide-range voltage 100V-240V_AC50/60Hz, transmitted lamp-house with single 5W LED, warm color.
Power	Wide Range Voltage 100~240V AC 50/60Hz

Item	Optional Accessories
Eyepiece	High Eye-point PL10x/22mm with Micrometer, Diopter Adjustable
Eyepiece	High Eye-point PL15x/16mm
Objective	Infinity plan achromatic objectives 2x
Nosepiece	4 Holes revolving nosepiece, inward
Transmitted light	Yellow/neutral/IF550/LBD filter for transmitted light
Digital camera adapter	1X, 0.67X, 0.5X focusing C-mount 3.2X photo eyepiece photo tube with PK or MD mount, relay lens
Filter	Interference filter for reflected light: Blue filter<=480nm Green filter 520nm~570nm Red filter 630~750nm White balance filter
Micrometer	High precision micrometer, scale value 0.01mm
Dark Field Condenser	N.A.0.9 Dry
Dark Field Condenser	N.A.1.25 Immersion
Phase Contrast Attachement	Infinity Plan Phase Contrast Objectives 10X,WD=4.70mm
	Infinity Plan Phase Contrast Objectives 20X,WD=1.75mm
	Infinity Plan Phase Contrast Objectives 40X,WD=0.72mm
	Infinity Plan Phase Contrast Objectives 100X,WD=0.15mm
	N.A.1.25 Five Holes Phase Contrast Condenser (Infinity)
	Centering Telescope
