MMU.023068Trinocular Upright Metallurgical, 50X~1000X, DIC
  • /usr/575/images/Products/Y/57518563.jpg
  • /usr/575/Picture/Y/11461.jpg
  • /usr/575/Picture/Y/11462.jpg
  •

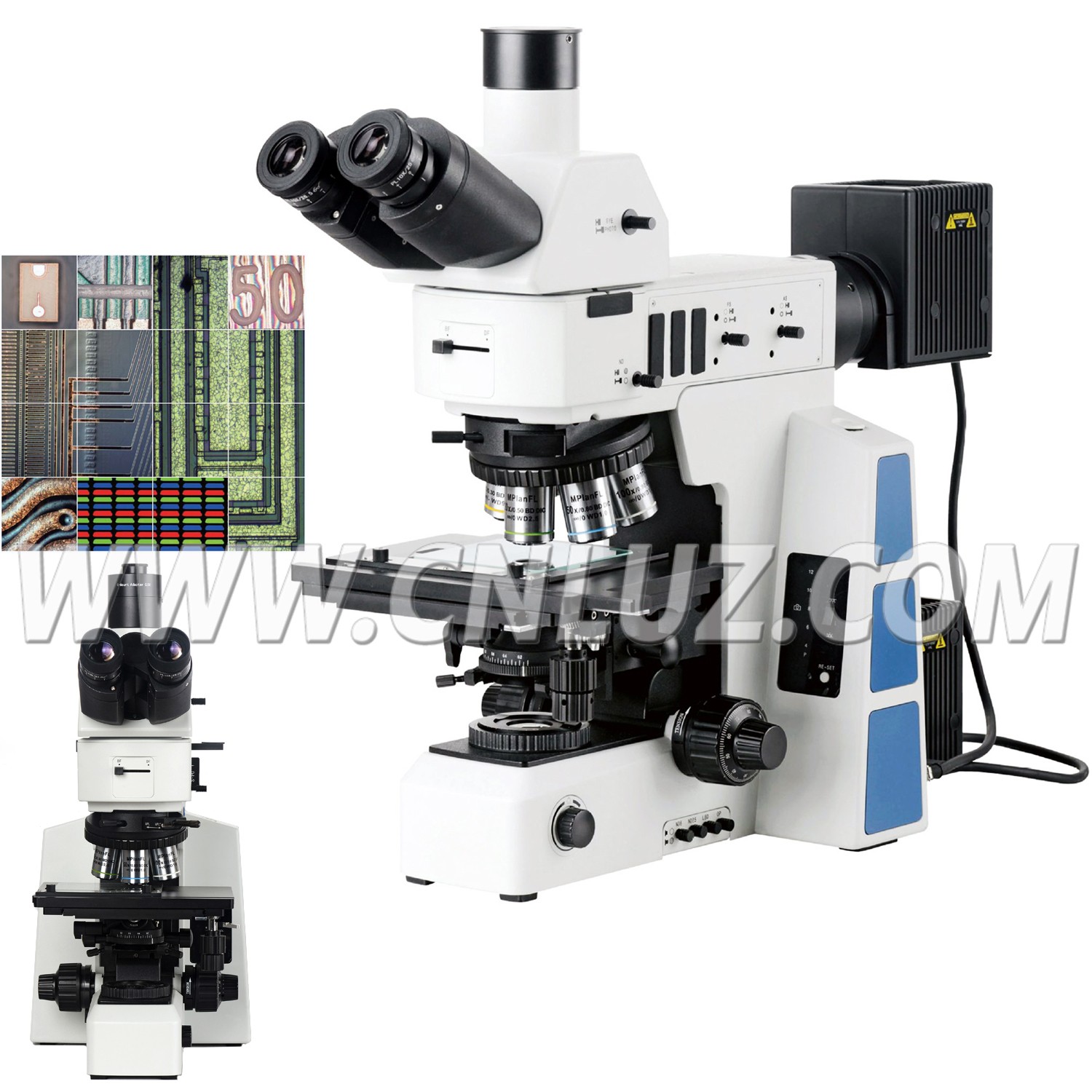

  • MMU.023068 metallurgical microscope for research with a number of pioneering design in appearance and functions, is born to provide a perfect detection solution and develop a new pattern of industrial field.
  • MMU.023068 viewing head is designed of multiple options for splitting ratio. with wide beam imaging system, 26.5mm super wide filed of view is available.
  • Trinocular head with erect image, splitting ratio Binocular:Trinocular= 100:0 or 0:100. The moving direction of samples is as the same as observed.
  • Trinocular head with inverted image, splitting ratio Binocular: Trinocular=100:0 or 20:80 or 0:100. Except for concentrating 100% light to eyepiece tube or camera tube, there is another option with 20% light to eyepiece tube and 80% to camera tube, so that eyepiece observation and image output can be available at the same time.
  • The polarizer and analyzer in polarization system contribute to eliminate the stray light in semiconductor and PCB detection, image with clear detail is achievable. There are fixed analyzer and rotatable analyzer for option. The sample can be observed at different polarizing angles with 360° rotatable analyzer. Besides, this polarization system can be upgraded to Nomarski differential interference contrast system after installing a new developed DIC attachment.
  • Nomarski differential interference contrast system.The weeny asperities on the surface which can not be found in bright field, is able to be detected by using U-DICR attachment to create high contrast background. It is widely used for testing the conductive particle of LCD, surface scratch of precision disk.
  • Linkage between the neutral density filter and the switch for BF & DF The lever in front of illuminator is used to switch between bright field and dark field, and it is in tandem with a neutral density filter (ND50). When you switch from DF to BF, the built-in ND50 filter takes the role to decay the light intensity. More scientific and more comfortable.
Specification
MMU.023068 Bright and Dark Field Metallurgical Microscope with APO
Optical System Infinity Optical System, Semi-Aprochromatic, DIC
Head

Trinocular Head, 30°inclined, Erect Image，Interpupillary Distance 50~76mm，Three Split Ratio 0:100； 20:80; 100:0
Eyepiece
High-Eyepoint Plan Eyepeiece PL10X/25mm，Diopter Adjustable
Objective

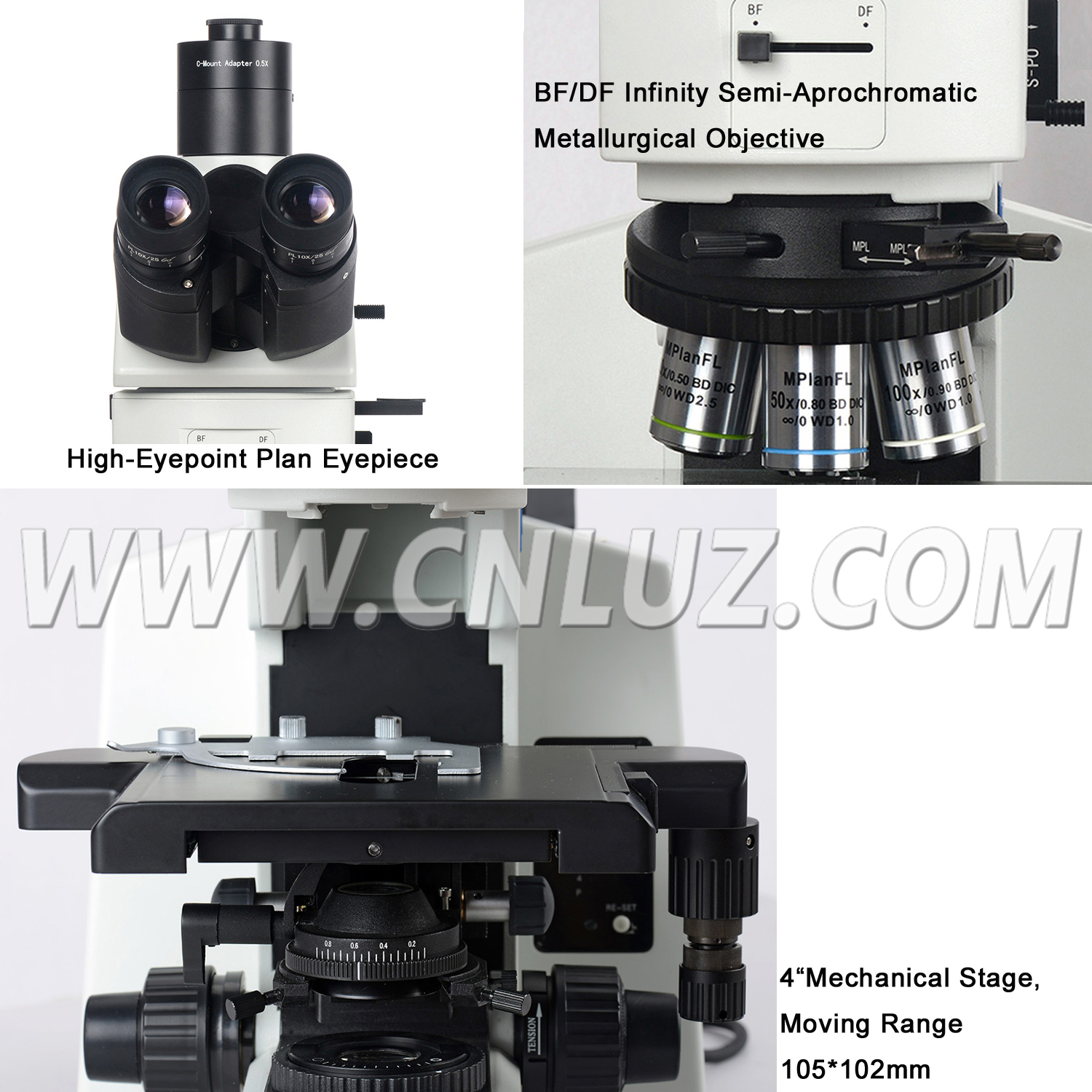

 BF/DF Infinity Semi-Aprochromatic Metallurgical Objective:5x/0.15, W.D.=13.5mm
BF/DF Infinity Semi-Aprochromatic Metallurgical Objective:10x/0.3, W.D.=9.0mm
BF/DF Infinity Semi-Aprochromatic Metallurgical Objective:20x/0.5, W.D.=2.5mm
BF/DF Infinity Semi-Aprochromatic Metallurgical Objective:50x/0.8, W.D.=1.0mm
BF/DF Infinity Semi-Aprochromatic Metallurgical Objective:100x/0.9, W.D.=1.0mm
Nosepiece

BF/DF Sextuple Nosepiece, With Socket For DIC
Focusing
 Coaxial Focus System With Upper Limited And Tension Adjustment, Coarse Adjustment Range:25mm, Fine Adjustment Precision: 0.001mm.
Stage
Right Hand 4“ Mechanical Stage, Moving Range 105*102mm,
With Y Axis Lock,
With Transimt Light Barrier,
With Glass Plate

Illumination

Reflect BF/DF Light Source, With Iris Diaphragm,
With Aperture Diaphragm, All Center Adjustable
With BF/DF Switch, With Filter Slot, WIth Polarzing/Analyizer Slot
With Interfer Nurtural Filter
12V100W Halogen Lamp, Center Adjusted,
Adopt Digital Dimming System, With LED Indicator, With The Function Of Light Set And Reset
Polarizing
 Polarizing Filter Slide, Fixed Analysis Slide, For Reflect Light Source
Power 100-240V Built-in Wideband Voltage Transformer,

Item

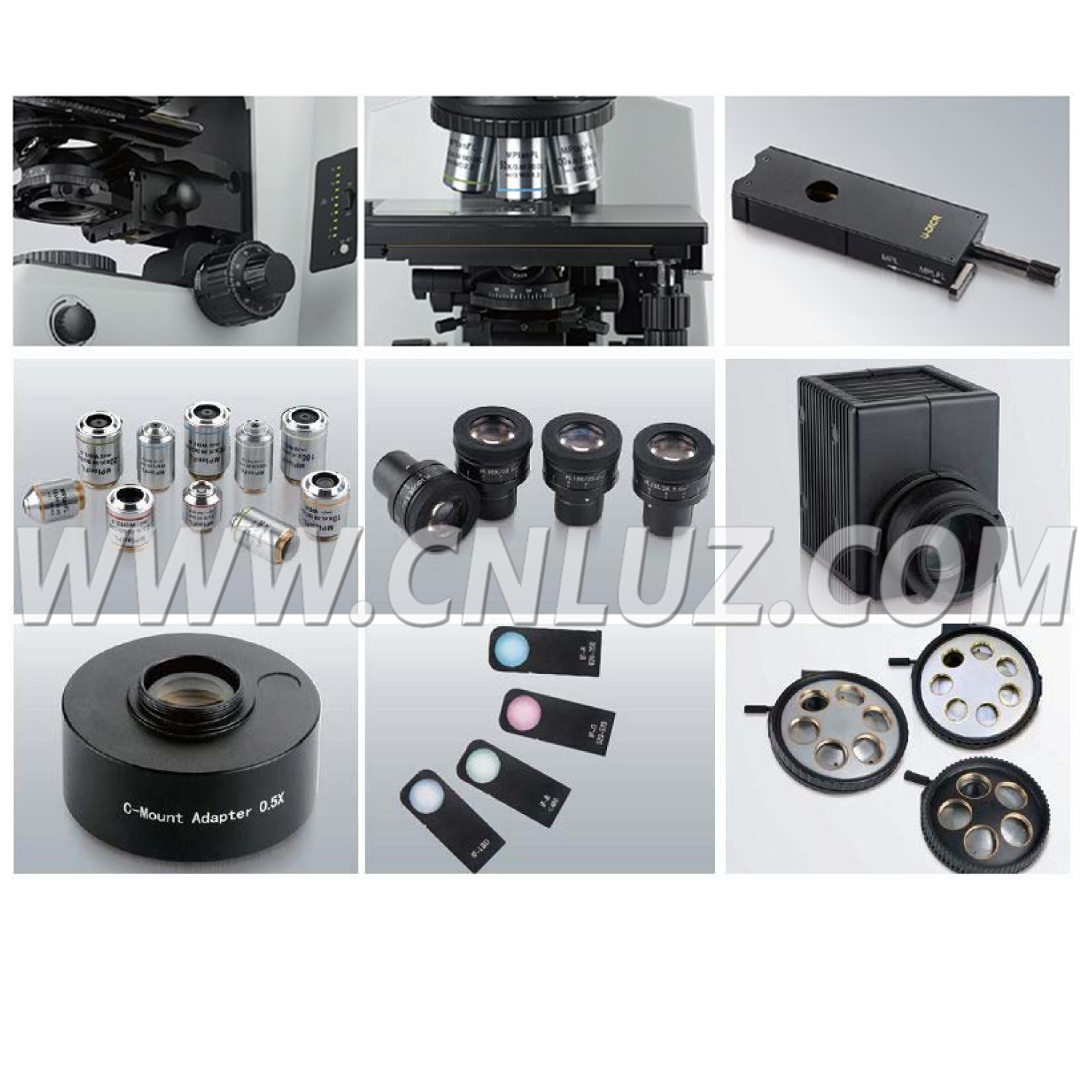

Optional Accessories
Eyepiece


 High-eyepoint Plan eyepeiece PL10X/26.5mm,diopter adjustable
High-eyepoint Plan eyepeiece PL10X/25mm,diopter adjustable, with micrometer
Head Trinocular Head, 30°inclined, Inverted Image，Interpupillary Distance 50~76mm，Three Split Ratio 0:100； 20:80; 100:0
DIC DIC Slide
Adapter C-Mount 0.5x, Focusable
